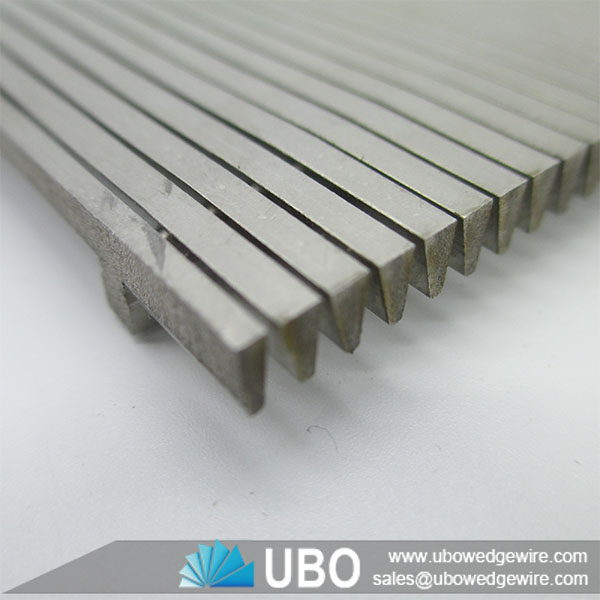

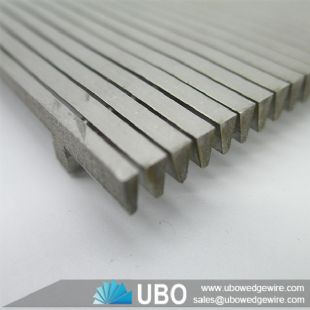

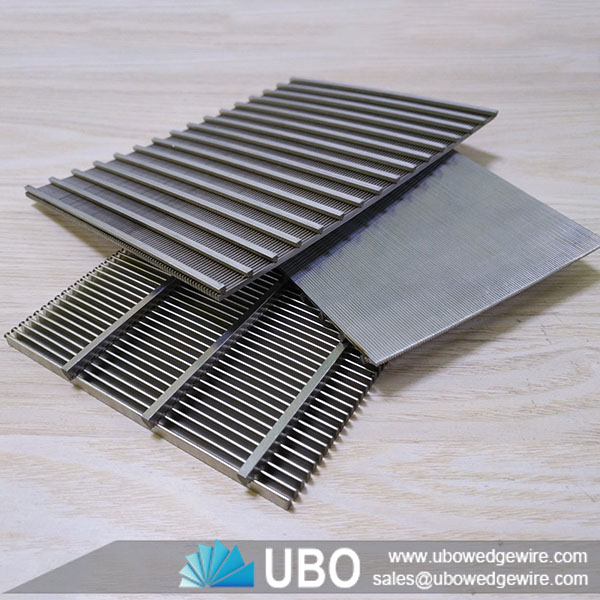

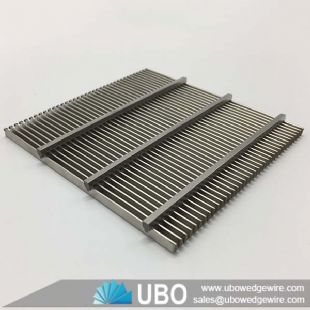

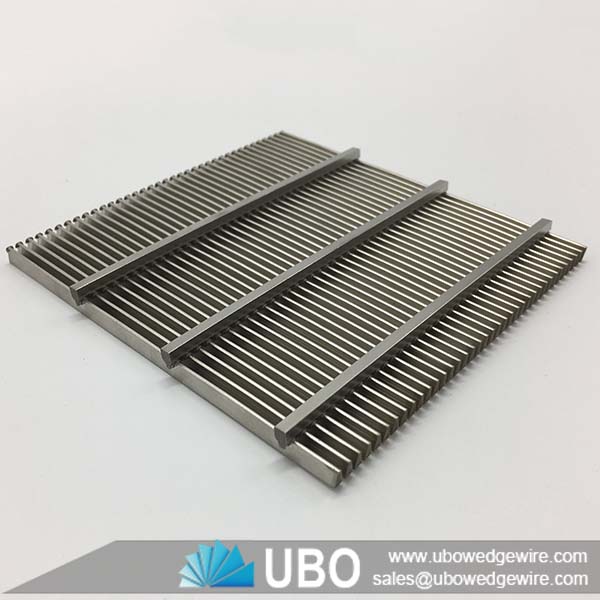

Wedge V Wire Water Slot Screen Plate

More Views

Wedge V Wire Water Slot Screen PlateWedge V Wire Water Slot Screen PlateWedge V Wire Water Slot Screen Plate

Wedge V Wire Water Slot Screen Plate

Category:Wedge Wire Screen Panel
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:wedge wire screen panel
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Details of Wedge V Wire Water Slot Screen Plate

Wedge v wire water slot screen plates are manufactured by wrapping a profile wire cylindrically around longitudinal placed support rods. All wires and rods are resistance welded at each point of contact. The numerous combinations of wire profiles, support rods, flow direction and wide range of slots (fixed or variable) allow UBO to design screens according your exact technical specification. UBO manufacture wedge wire screens for a variety of industries including water well production, water treatment, food and beverage, oil and gas, pulp and paper, mineral and aggregate processing, refining and petrochemical.

Wedge v wire water slot screen plate is manufactured by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods,then be made to panel screen through cutting and edge welding. Each profile wire and support rod is contacted by resistance welding. Support bar will be flat bar ,round bar ,triangle wire and so on,slot size range from 0.2mm to 3mm.

Johnson flat wedge v wire water slot screen plate

Johnson flat wedge v wire water slot screen plate

Features of Wedge V Wire Water Slot Screen Plate

-- High strength

-- Excellent performance

-- Fine finish

-- Typical static panels, including architectural panels, will have a surround frame welded around the screen

-- Typical vibrating panels will have angles welded down two sides of the panel and rubber vibration dampening strips glued to the top and bottom of the screen

Applications of Wedge V Wire Water Slot Screen Plate

municipal areas and industries
interior wall cladding and facades
Used in modern buildings
Ceiling panels
Drainage system of showers

Johnson flat wedge v wire water slot screen plate

Johnson flat wedge v wire water slot screen plate

Specifications of Wedge V Wire Water Slot Screen Plate:

Johnson flat wedge v wire water slot screen plate



Material

SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc

Length Range

Up to 6000mm

Width Range

Up to 6000mm

Slot Range

20 micron to 3000 micron (Tolerance:+-5 micron)

Other Shapes

Could cut to any shape according to requirement, such as round, semicircle, sector, and so on.

Wedge Wire

0.5x1.5

0.75x1.5

1x2

1.5x2

2x3

2x4

3x5

Support Rod

1.5x2.5

2x3

1.5x2.5

2x3

1.5x2.5

2x3

1.8x2.5

2x3

2x3

2x4

3x5

3x6

3x10

4x7

2x4

3x5

3x6

3x10

4x7

5x6

3x5

3x6

3x10

4x7

5x6

5x8

End Finishing

With the frame, without any frame, according to request.

Note

Customized According To Requirement

Packaging and Transportation of Wedge V Wire Water Slot Screen Plate:

Package: in wood case

Delivery Time: 5-25 days
