316 stainless steel continuous slot screen plate

More Views

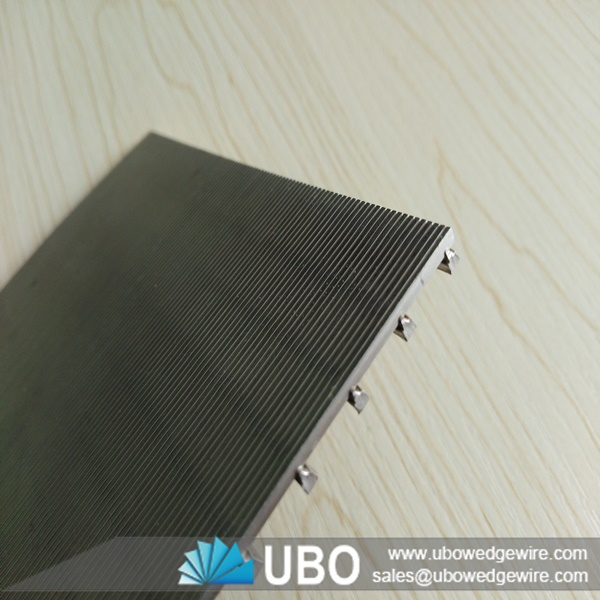

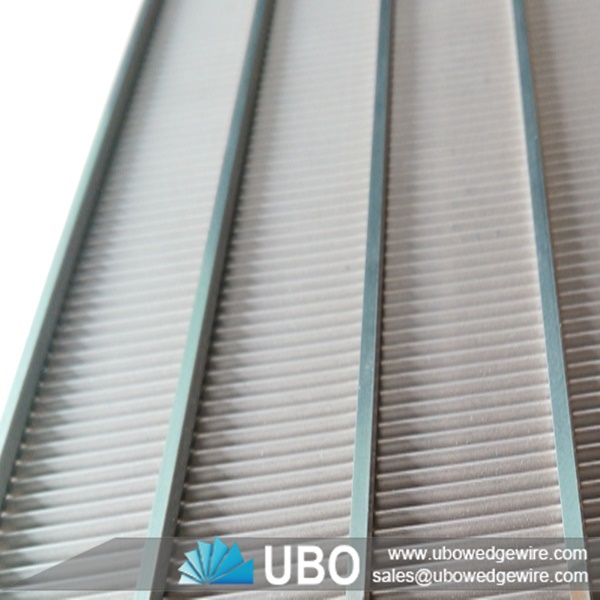

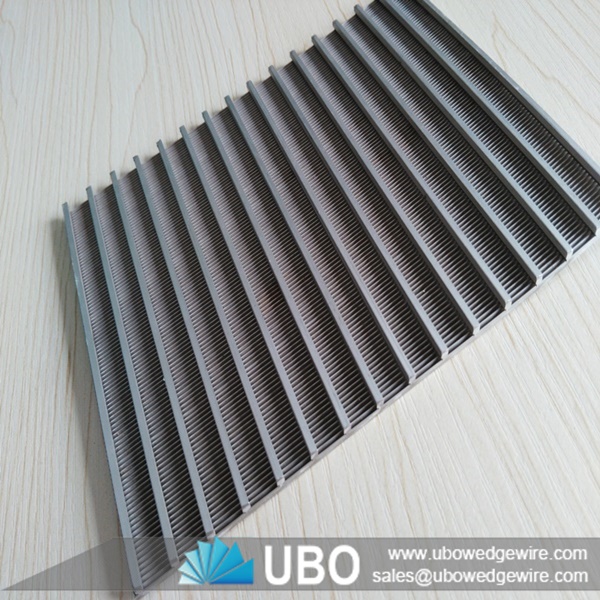

316 stainless steel continuous slot screen plate316 stainless steel continuous slot screen plate316 stainless steel continuous slot screen plate

316 stainless steel continuous slot screen plate

Category:Wedge Wire Screen Panel
Material:stainless steel
Properties:wedge wire screen
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens,

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of 316 stainless steel continuous slot screen plate

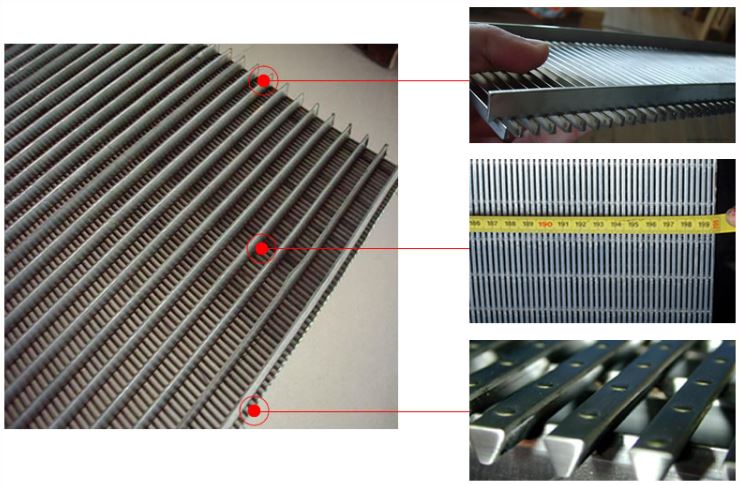

316 stainless steel continuous slot screen plate and the longitudinal support rods. theV wire is welded to the rods and produces a rigid unit that has high strength and minimum weight. so slot flat screen has sturdy constriction and good mechanical property.

The V-shape section plane can avoid blockage and make sure of the unimpeded water. The consecutive slot have more open area, and it can reduce the speed of the water entering to avoid the sand entering the Water Well Screens under the great pressure, so it can filter sand better. Meanwhile, the slot of Water Well Screens can change according to the real condition of the earth.

wedge wire screen

Application of 316 stainless steel continuous slot screen plate

wedge wire screen is widely used in filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens, lauter tun screens,many other liquids, solids separation applications

Feature of 316 stainless steel continuous slot screen plate

•Non-clogging surface
•Large open area
•Low pressure drop
•Hydraulic efficiency
•High flow rates
•Mechanical strength
•Abrasion-resistant
•Easy cleaning

316 stainless steel continuous slot screen plate

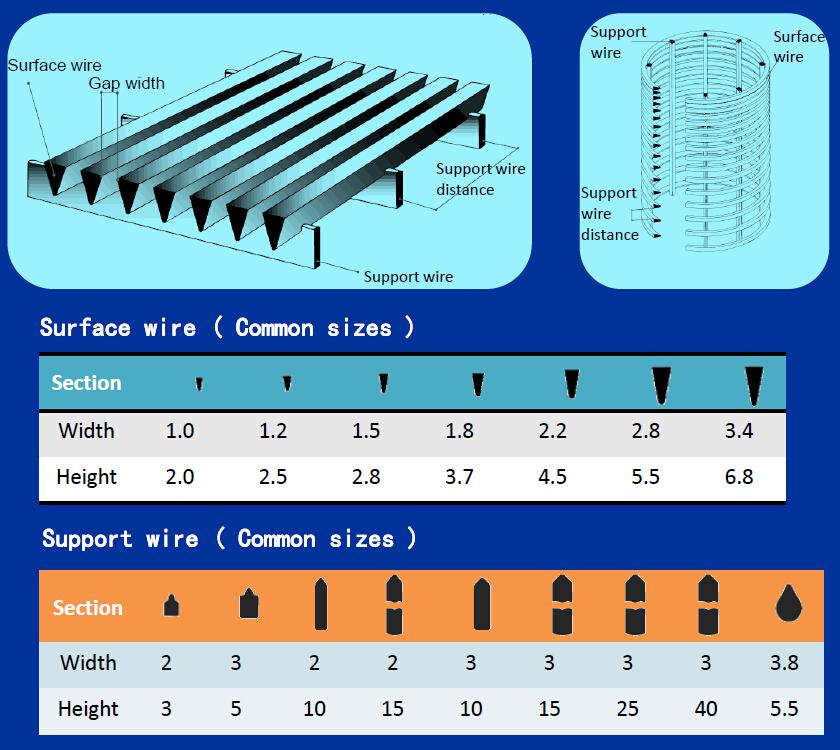

Specifications of 316 stainless steel continuous slot screen plate:

screen plate



Specification

(Profile wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30

Specification (support rods):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Round: From 2.50mm to 6.0mm

Note: other wires and rods can be customed according to your requests

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also

achieved upon request.

Material:

Low carton, low carton galvanized steel (LCG), stainless steel (304,316 etc.)

Length

Lengths up to 6 meters.

Width

ranging from 25mm to 800mm.

End connection

Plain beveled ends for butt welding or threaded
