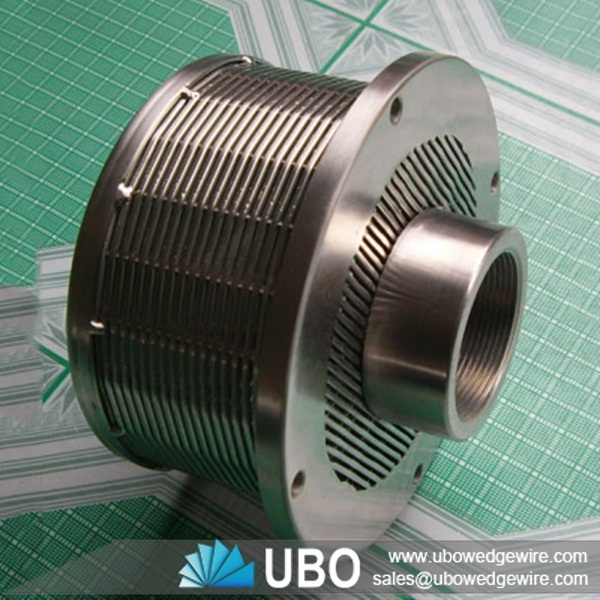

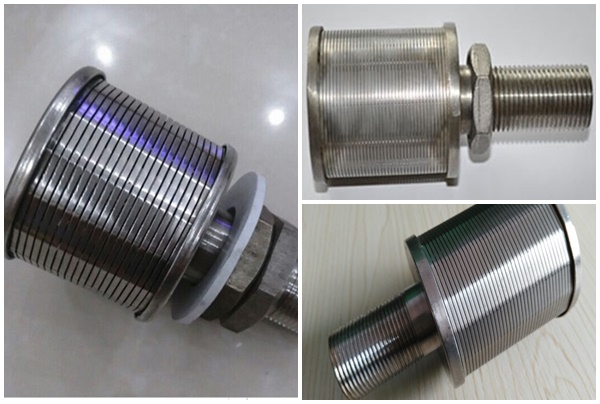

316 stainless steel wedge wire filter cap

More Views

316 stainless steel wedge wire filter cap

Category:Filter Nozzle
Material:stainless steel304,316,316L
Properties:wedge wire screen
Application:water filtration,liquid filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of 316 stainless steel wedge wire filter cap

The 316 stainless steel wedge wire filter cap(filter nozzle) as the important parts used in the water treatment equipment for power plant,waste water processes, the Vee shape wire are stainless steel AISI 316L.Slot size from 0.2 to 0.25mm.
We can manufacture single wedge wire screen nozzle,double wedge wire nozzle,also used in the lon exchanger.

Advantages of 316 stainless steel wedge wire filter cap

Excellent roundness
Very good slot width precision
High mechanical load capacity
No form closure connection that would allow vibration of the profiled bars V-shaped wire around the twin tube water cap for metallurgical industry
Automated welding process for high-precision manufacturing
Perfectly adjusted screen basket profiles
Available for all screens
Surface finishing as required

Application of 316 stainless steel wedge wire filter cap

water softening treatment equipment, replace Polypropylene ( PP ) filter;sand filters, carbon filters, ion exchange systems, carbon absorbers,media retention, backwash retention, resin retention and resin traps.

         316 stainless steel wedge wire filter cap

Specifications of 316 stainless steel wedge wire filter cap:

Materials: stainless steel 304,316L, low carbon galvanized or as per your request.

Application water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

Surface treatment: polishing, chroming

Wire diameter: 1.5x2m, 2x3mm

Length: 0.5meters or as per your request

Diameter:80mm

Slot size: 1mm also designed as customers request.

characteristics:High filtering accuracy , High strengh and durability good machine capability, last long, safety and reliability.

D L L1 Slot Size d Flow Area mm2
45 98 34 0.2-0.25 M20 380-493
45 100 44 0.2-0.25 M24 551-690
53 100 34 0.2-0.25 M24 453-597
53 100 44 0.2-0.25 M27 680-710
53 105 50 0.2-0.25 M32 800-920
57 115 34 0.2-0.25 M30 560-670
57 120 55 0.2-0.25 M32 780-905
60 120 55 0.2-0.25 G1" 905-1100
82 130 50 0.2-0.25 M33 1170-1280
108 200 100 0.2-0.25 G2" 3050-4600

Packaging and Transportation of 316 stainless steel wedge wire filter cap:
