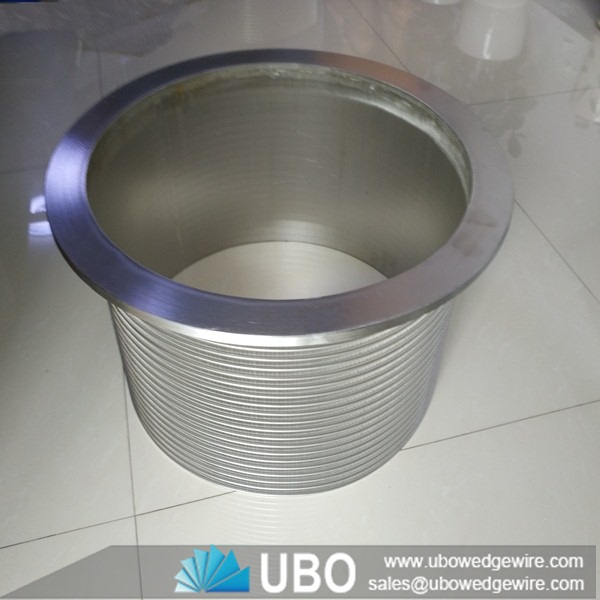

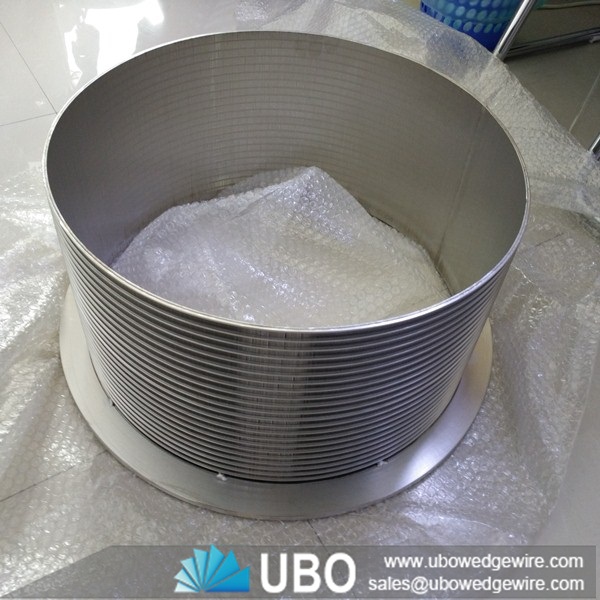

stainless steel outflow pressure screen basket

UBO have approached scientifically to screening and separating of fiber, and made the utility maximized. In addition,with the superior technology with surface treatment, we're adding the nice look to the screen basket, and make the life of the screen basket much longer. stainless steel outflow pressure screen basket guarantees progressive Lowering Production Cost, Elevation of Productivity Improvement of quality for your company. UBO wire is selected optionally considering the length of fiber, dissociation or separation, type of paper, productivity, efficiency on elimination of foreign substance, and durability of Screen Basket.

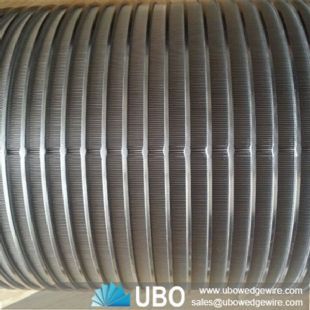

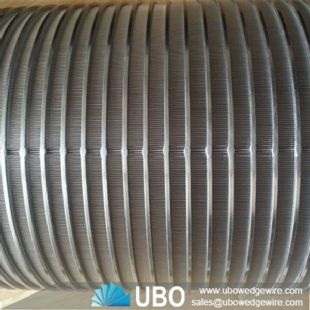

The stainless steel outflow pressure screen basket is made by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods under automatic wire screen machine. Each profile wire and support rod is welded by resistance welding,easily fit for pulp and paper industries for water clarification, cleaning, dewatering, pulp screening and fractionation, and other liquid/solid separation etc.

Features of stainless steel outflow pressure screen basket

Mechanically held wires, built in the round.
Rugged, high mechanical strength.
Available for outward and inward flow screens.
Precise slot-width tolerance.

Advantage of stainless steel outflow pressure screen basket

1. A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone
2. A V-shaped profile wire which avoids clogging and ensures an uninterrupted flow.
3. A uniform and efficient well development due to the continuous slot opening.
4. Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
5. Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

Application of stainless steel outflow pressure screen basket

wedge wire screen is widely used in filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens, lauter tun screens,many other liquids, solids separation applications.

1. Materials: SS201, 304, 316, 316L
2. Structure: wedge wire basket screen
3. Be suitable for pressure screen
4. Hardness: chrome-plated 200-250 micron, electrical polished
5. Standard perforation diameter: more than φ1.2mm

    Plate thickness:6mm-12mm
    Screen slot: more than 0.1mm
    Plate thickness: 6mm-12mm
    Bar coating guarantee more than 0.20 mm
