V-wire pressure Wastewater screen slotted basket
Category: | Wedge Wire Screen Basket |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | Wedge Wire Screen Basket |
Application: | water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration. |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

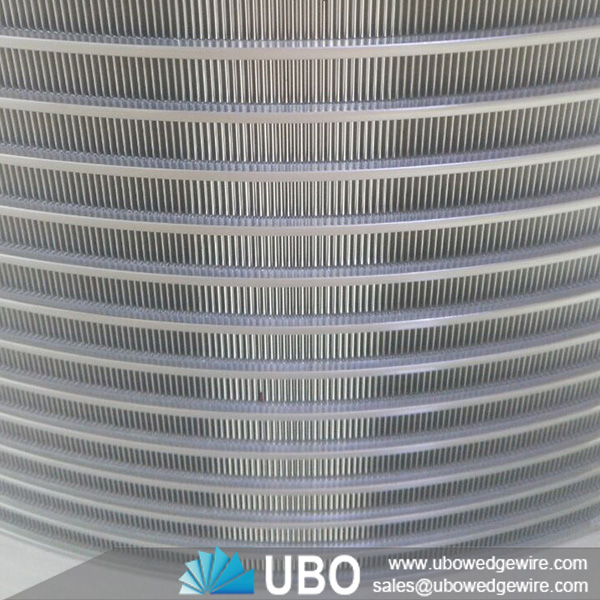

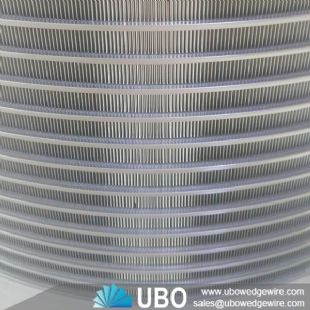

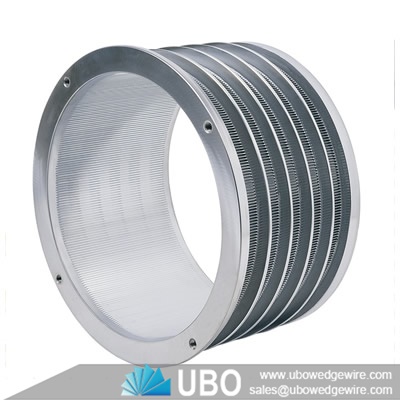

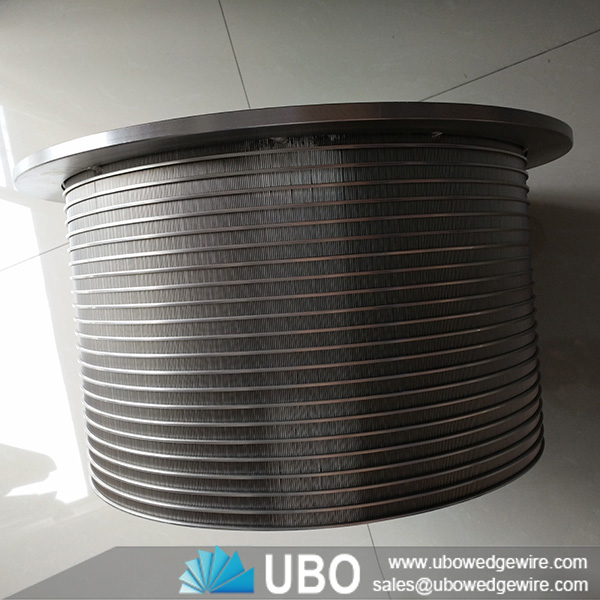

Details of V-wire pressure Wastewater screen slotted basket
Nowadays,most important choice for production of paper, improvement of quality of paper, elevation of productivity, and lowering production cost are decided by Screen Basket. Screen basket to bring your company the best quality and productivity, and satisfactory outcome in lowering production cost. Screen basket will bring your company the satisfactory quality of paper, productivity and production cost. Wedge wire designed with superior technology makes effective elimination of foreign substances of stronger screen basket, and supply more open areas.
The V-shaped wire can be made in different height and width to address various strength application, meanwhile, the spacing of individual slots can be varied during fabrication if geologic conditions require these variations in a screen's construction
Application for wedge wire pressure screen slotted basket:
widely used in mineral processing,coal processing,food processing,water treatment,petrochemical industry,architecture industry, as well as many other applications involving liquid & solids separation.
Advantages for Steainless steel low carbon V Wrap Cylinder Basket:
1.A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.
2.A “V”shaped profile wire which avoids clogging and ensures an uninterrupted flow.
3.A uniform and efficient well development due to the continuous slot opening.
4.Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
5.Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.
Type for Steainless steel low carbon V Wrap Cylinder Basket:
Wedge wire screen have flat type , cylinder type , slope type and basket type . So Wedge wire screen is called as flat welded screen panel , cylinder wedge screen and sieve bend screen . According to the weaving type , they are also called woven wedge wire and welded wedge wire such as crimped wedge wire . welded wedge screen panels.
Specifications of V-wire pressure Wastewater screen slotted basket:
size
inch
|
inner dia
inch
|
outer dia
inch
|
2
|
2
|
25/8
|
3
|
3
|
35/8
|
4
|
4
|
45/8
|
5
|
5
|
55/8
|
6
|
6
|
65/8
|
8
|
8
|
85/8
|
10
|
10
|
103/4
|
12
|
12
|
123/4
|
14
|
131/18
|
14
|
16
|
15
|
16
|
20
|
183/4
|
20
|
