Stainless steel  v shap wire screen basket for paper mills

More Views

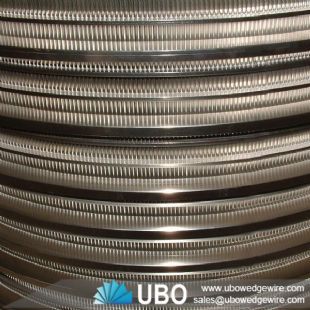

Stainless steel  v shap wire screen basket for paper millsStainless steel  v shap wire screen basket for paper millsStainless steel  v shap wire screen basket for paper mills

Stainless steel v shap wire screen basket for paper mills

Category:Wedge Wire Screen Basket
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen basket
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless steel v shap wire screen basket for paper mills

The stainless steel  v shap wire screen basket is made by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods under automatic wire screen machine. Each profile wire and support rod is welded by resistance welding,easily fit for pulp and paper industries for water clarification, cleaning, dewatering, pulp screening and fractionation, and other liquid/solid separation etc.

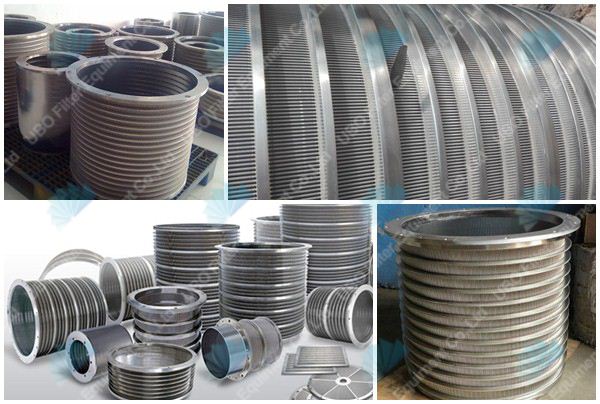

Stainless steel  v shap wire screen basket for paper mills

Application of Stainless steel  v shap wire screen basket for paper mills

wedge wire screen is widely used in filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens, lauter tun screens,many other liquids, solids separation applications.

Features of Stainless steel  v shap wire screen basket for paper mills

A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.
Avoids clogging and ensures uninterrupted flow.
Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.
Styles of connection: Flange

Characteristics of Stainless steel  v shap wire screen basket for paper mills

High weld strength
Higher accuracy and consistency of wire gap
Lower surface roughness
Single piece cylinder construction (As opposed to welded patched cylinders)
Axially-seamless cylinder construction

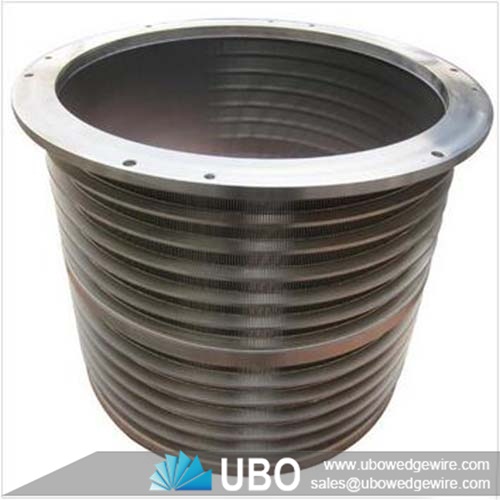

Stainless steel  v shap wire screen basket for paper mills

Specifications of Stainless steel v shap wire screen basket for paper mills:

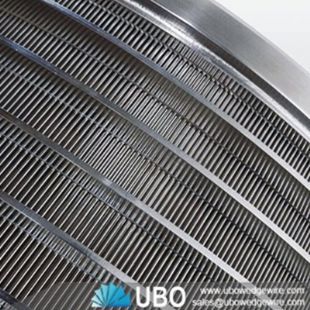

Stainless steel  v shap wire screen basket for paper mills



Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of Stainless steel v shap wire screen basket for paper mills:

transportation
