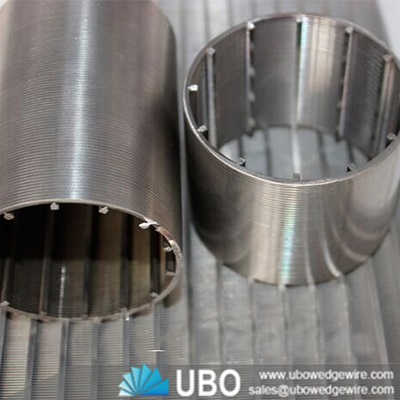

wire wrapped stainless steel wedge wire screen mesh for water

More Views

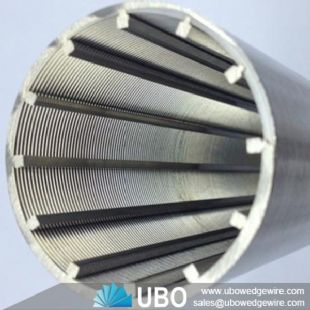

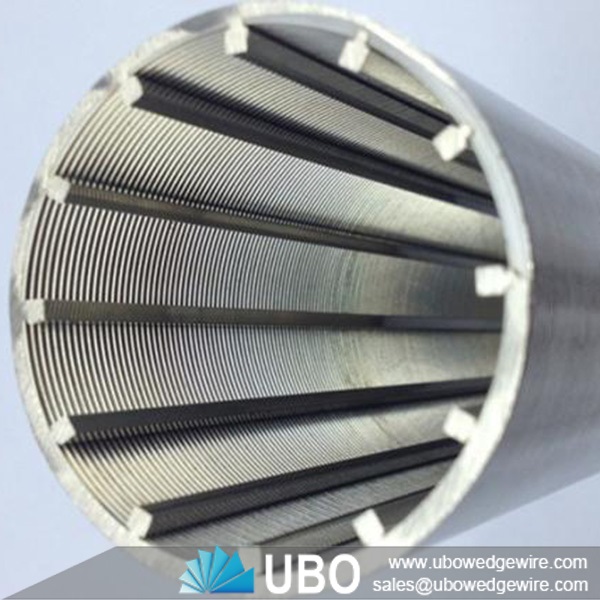

wire wrapped stainless steel wedge wire screen mesh for waterwire wrapped stainless steel wedge wire screen mesh for waterwire wrapped stainless steel wedge wire screen mesh for water

wire wrapped stainless steel wedge wire screen mesh for water

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Wedge Wire Pipe
Application:water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wire wrapped stainless steel wedge wire screen mesh for water

    The continuous slot wire-wrap screen is used throughout the world for water, oil, and gas wells, and for environmental well completions. It is the dominant screen type used in the water well industry. this type of screen is constructed by winding cold rolled triangular V-shaped wire around a circular array of longitudinal rods. the wire is welded to the rods and produces a rigid unit that has high strength and minimum weight.

Application for wire wrapped stainless steel wedge wire screen mesh for water:

Widely used in mining, coal, petroleum, fertilizer, grain, salt, environmental protection and other industries. For sieving liquid, powder and other materials. In petroleum, chemical industry, metallurgy, mining, pharmaceutical purification and drilling liquid purification.

Advantage for wire wrapped stainless steel wedge wire screen mesh for water:

A “V”shaped profile wire which avoids clogging and ensures an uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.
Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost

Characteristic for wire wrapped stainless steel wedge wire screen mesh for water:


1.V-Shaped Slots:
Openings shaped like a "v" that open toward the inside of the well tend to allow the particles that are just barely smaller than the width of the slot pass. In other shapes of openings, these particles would get caught in the screen and clog it.

2. Continuous Slots :
The special design gives continuous slot opening across the periphery and length of screen.

3. Non Clogging Slots :
V-Shape wire which gives inwardly widening V-Shape slots.
This shape does not give space for any sand particle to get stuck inside the slot and hence these screens are NON CLOGGING. Hence, the efficiency of tube well is not reduced over no. of years due to clogging.

4. Very Large % Open Area:
This design gives continuous slot and hence the% open area for water to enter is more than 2 times that of conventional slotted pipes of any size and slot opening. This allows more water to enter at much lesser frictional head loss and the efficiency of tube well is improved appreciably.

5. Better Sand Filtration :
Due to specialize manufacturing process, wide range of slot opening is available down to 0.15 mm to allow proper slot selection depending upon the size of sand in particular area. This gives better sand control and reduced pump maintenance and longer tube well life.

6. Energy Saving :
Due to reduce frictional head losses and increased discharge, the pump load reduces the power required to pump same quantity of water. Power saving of around 20-25% is observed

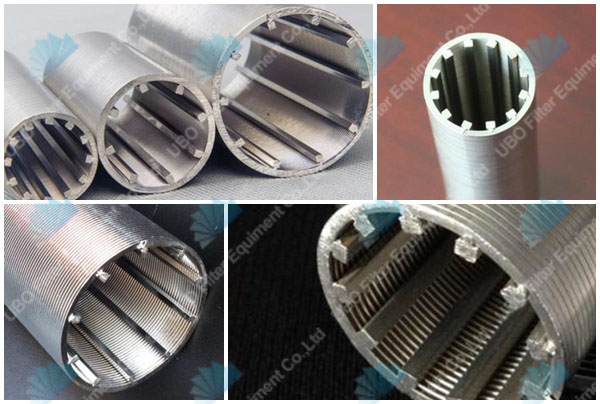

wire wrapped stainless steel wedge wire screen mesh for water

Specifications of wire wrapped stainless steel wedge wire screen mesh for water:

wire wrapped stainless steel wedge wire screen mesh for water



size

inner diameter

outer diameter

in
mm
in
mm
in
mm
2
51
2
51

25/8

67

3
76
3
76

35/8

92
4
102
4
102

45/8

117
5
127
5
127

55/8

143
6
152
6
152

65/8

168
8
203
8
203

85/8

219
10
254
10
254

103/4

273
12
305
10
305

123/4

324

Packaging and Transportation of wire wrapped stainless steel wedge wire screen mesh for water:

wire wrapped stainless steel wedge wire screen mesh for water

wire wrapped stainless steel wedge wire screen mesh for water
