welding wire basket screen for coal

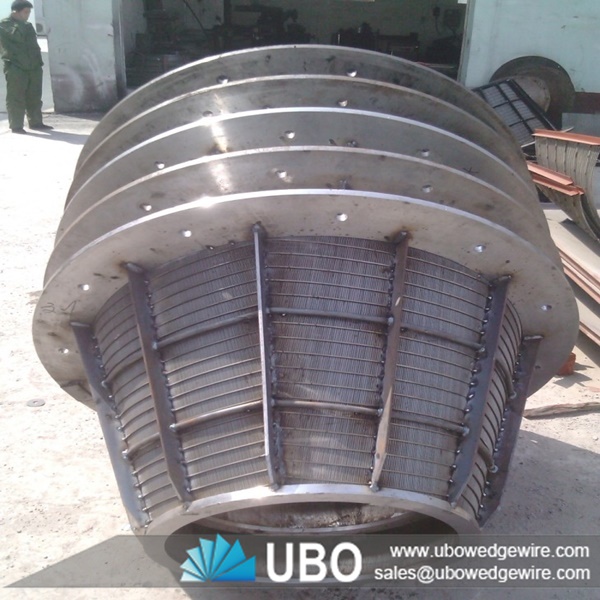

Similar to the wedge wire screen cylinder and wedge wire screen tube, the welding wire basket screen is also manufactured from V-shaped profile wires and various support rod. The support rod are resistance welded onto the profile wires to form a firm structure. Wedge wire screen basket has a narrow top and a wide bottom, which is suitable for various centrifuge machines.

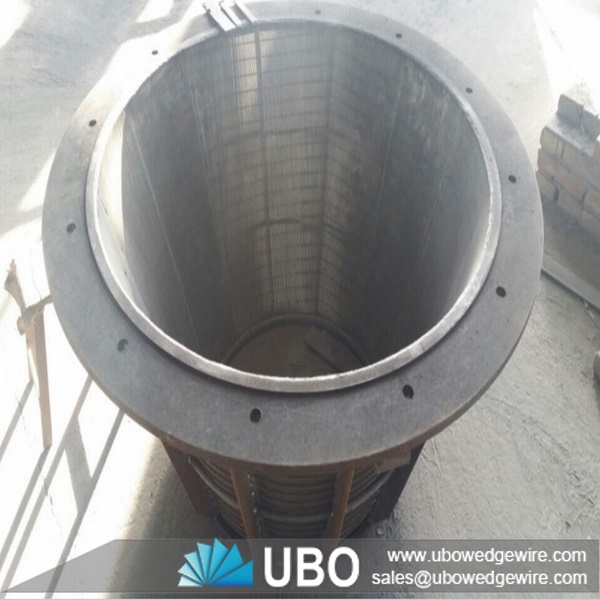

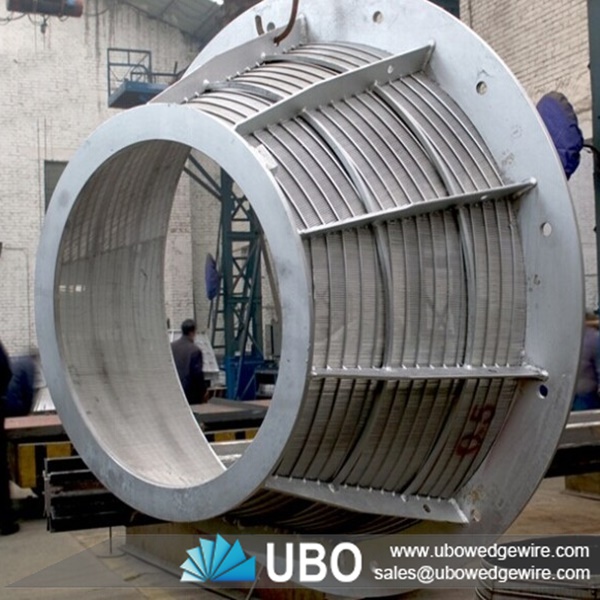

The welding wire basket screen for coal is a very important component of centrifugal liners. The wedge wire screen basket commonly has flange on the bottom or top. It is connected to the machine by bolt and nuts. Sometimes, there are flanges on both the top and bottom of the wedge wire screen basket.

Features of welding wire basket screen for coal

Firm structure.
Good mechanical property.
High strength.
High load capacity.
Outstanding filtering performance.
Corrosion and rust resistance.
Wear resistance.
Temperature resistance.
Low maintenance.
Durable and long service life.

Applications of welding wire basket screen for coal

Wedge wire screen basket has outstanding screening, filtering and dewatering performance in various applications:
Water treatment, Mining, Coal, Oil, Chemical fertilizers, Food, Environmental protection.

Material: stainless steel. 304, 314L, 316, 316L or 321.

Slot size: 0.3 mm - 1.0 mm.

Profile wire: 1.5 mm 4 mm, 2.2 mm 3.5 mm, 2.2 mm 4.5 mm, 2.8 mm 5 mm, 3.1 mm 6 mm, 2.8 mm 6.5 mm, 3.4 mm 7.5 mm.

Support rod type: triangle wire, flat bar or wedge wire.

Basket diameter: 500 mm, 600 mm, 800 mm, 1000 mm, 1200 mm, 1300 mm, 1530 mm.

Basket height: 300 mm, 400 mm, 500 mm, 600 mm, 800 mm.

Angle:15º 30º as your request

Support roa specification:
