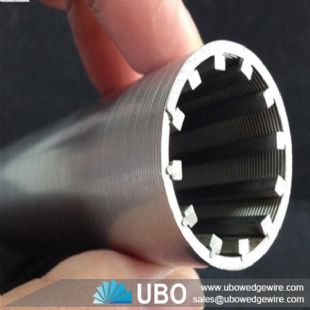

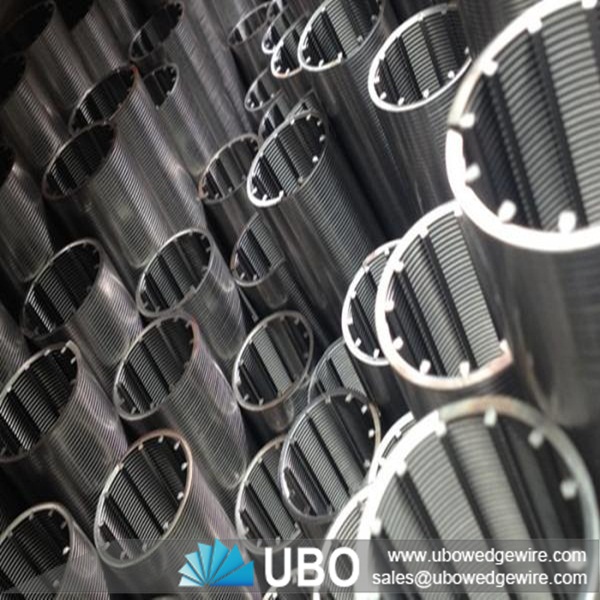

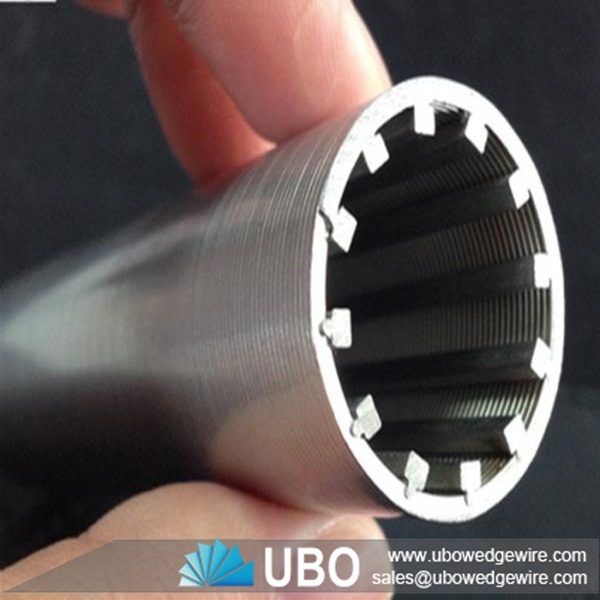

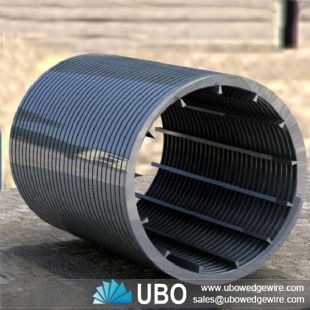

welded wedge wire screen pipe

More Views

welded wedge wire screen pipewelded wedge wire screen pipewelded wedge wire screen pipe

welded wedge wire screen pipe

Category:Wedge Wire Application
Material:stainless steel
Properties:wedge wire screen
Application:water,oil,liquid filtration,industry filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

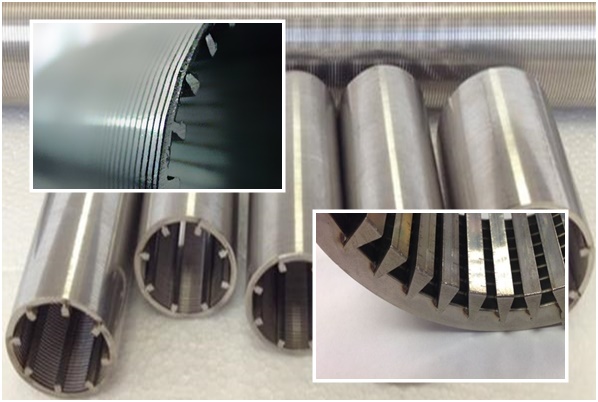

Details of welded wedge wire screen pipe

The welded wedge wire screen pipe is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). welded wedge wire screen pipes have a robust structure and large open area, as well as accurate slot dimension.

At the same time, welded wedge wire screen pipe have many advantages such as heat-resisting, anti-corrosive, good machine capability, long service life, safety and reliability and so on. It can be used in many kinds of medium filtering.

Features of welded wedge wire screen pipe

1) High mechanical strength, can bear large pressure drop.

2) Equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.

3) Wedge type slot can improve backflushing and regeneration performance.

4) Resistance to pressure, temperature, aging, corrosion, can be applied for different kinds of fluid.

5) Continuous slot: opening significantly increases the available open area. Providing greater access to the water-bearing zone.

Usages welded wedge wire screen pipe

It is used in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment,running water treatment, water softening treatment, the petroleum industry. The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.

welded wedge wire screen pipe

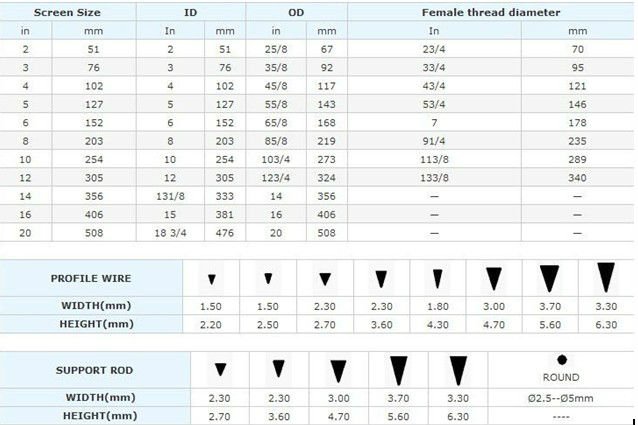

Specifications of welded wedge wire screen pipe:

The welded wedge wire screen pipe is made up of support rods and profile wire.

Structure: Support Rods + Profiles Wires/Wedge Wires

The support rod can be round wire, triangular wire or(wedge) trapezoid wire.

The profile wire is triangular wire (V-shaped wire).

Materials: stainless steel 302, 304, 304L, 316, 316L or low carbon wire(galvanized iron),

Can be design according to the customers' request.

Min slot: 0.05mm-35mm(error:±0.03mm)

Filter: From outside to inside

End connection: by welding or by threaded.

Standard length: 1m-6m

welded wedge wire screen pipe
