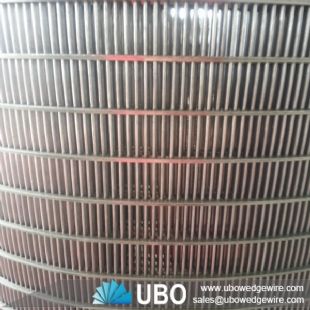

welded wedge wire screen cylinder for filtration

More Views

welded wedge wire screen cylinder for filtrationwelded wedge wire screen cylinder for filtrationwelded wedge wire screen cylinder for filtration

welded wedge wire screen cylinder for filtration

Category:Wedge Wire Application
Material:stainless steel 302,304,304L,316,316L
Properties:wedge wire screen
Application:water treatment,oilfield,mining,water well,food,industry,filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

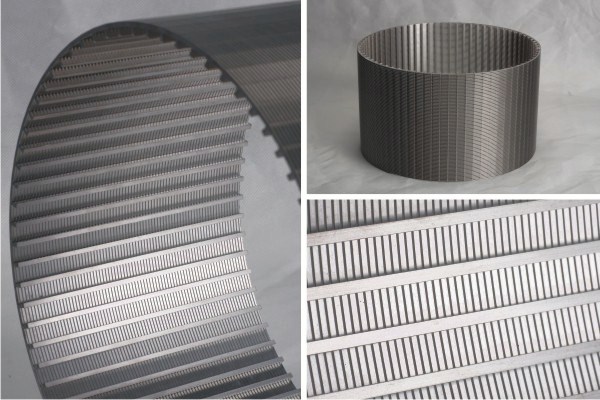

Details of welded wedge wire screen cylinder for filtration

Compared with wedge wire screen tube, the wedge wire screen cylinder has some similarity and difference. Similarity of wedge wire screen cylinder and wedge wire screen tube. They are all manufactured from stainless steel wire, including triangle surface profiles, round, rectangular, triangle and wedge wire support profiles. They are produced on an automotive machines, which the support profiles are welded onto surface profiles when the surface profiles are winding. Difference of wedge wire screen cylinder and wedge wire screen tube. Wedge wire screen cylinder has larger diameters than the wedge wire screen tube. This make the wedge wire screen cylinder can be used in large machines and applications.


Wedge wire screen cylinder has higher load capacity than the wedge wire screen tube. The wedge wire screen cylinder is commonly used in the heavy duty applications and maintain a long service life.

Features of welded wedge wire screen cylinder for filtration

-- No clogging and ensure the uninterrupted flow.

-- High open area.

-- Accurate slot dimension.

-- Heat resistance.

-- Corrosion and rust resistance.

-- Good machine capability.

-- Durable and long lasting.

-- Standard and reinforced type for choice.

-- Various edge types to connect and suit more applications

-- Wide range of application.

Applications of welded wedge wire screen cylinder for filtration

The wedge wire screen cylinders can be used as rotary screens. Wedge wire screen cylinders are widely used in the mine, coal, mineral and other applications for heavy duty and high load filtering, sizing and screening.

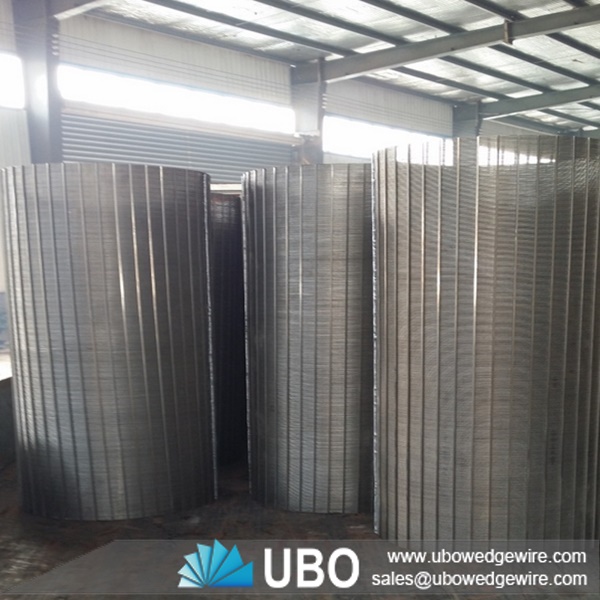

         welded wedge wire screen cylinder for filtration

Specifications of welded wedge wire screen cylinder for filtration:

Size

(inch)

O.D

(mm)

Slot

(inch)

Collapse Strength

(Psi)

Tensile Weight

(Ton)

Wrap(thick*deep)

(mm)

Rods

(mm)

4

117

0.04

395

6

2.2*3.0

3.8mm/22

4

114.3

0.04

395

6

2.3*3.0

3.8mm/22

6

168.3

0.04

252

8

2.3*3.5

3.8mm/32

8

219.1

0.01

399

10.5

3.0*5.0

3.8mm/48

8

219.1

0.02

370

10.5

3.0*5.0

3.8mm/48

8

219.1

0.04

323

10.5

3.0*5.0

3.8mm/48

10

273.1

0.01

206

11

3.0*5.0

3.8mm/50

10

273.1

0.02

191

11

3.0*5.0

3.8mm/50

10

273.1

0.04

167

11

3.0*5.0

3.8mm/50

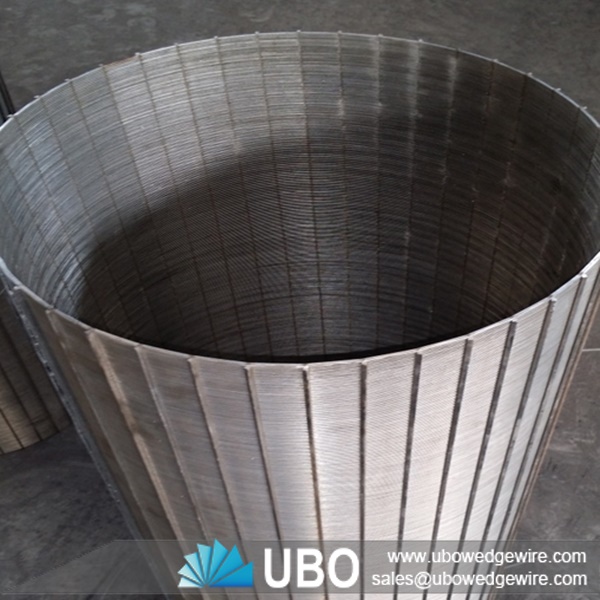

welded wedge wire screen cylinder for filtration
