wedge wire screen distributor for water filtration
Category: | Wedge Wire Application |
---|---|
Material: | stainless steel 302,304,304L,316,316L |
Properties: | wedge wire screen |
Application: | water treatment ,oilfield,mining,water well,food,industry,filtration |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of wedge wire screen distributor for water filtration

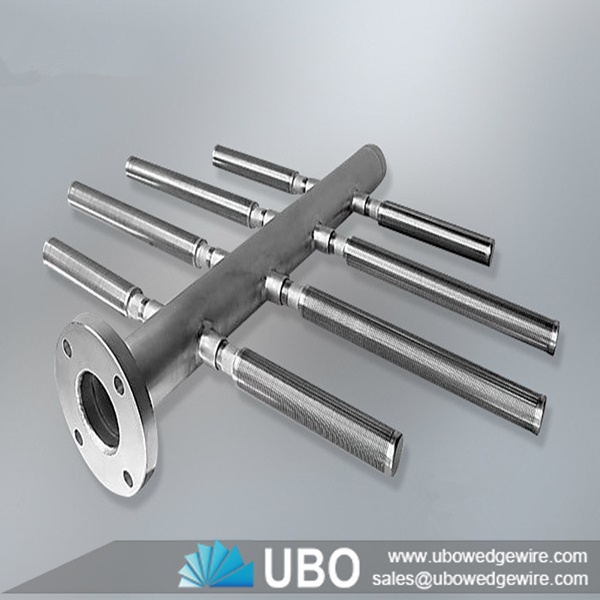

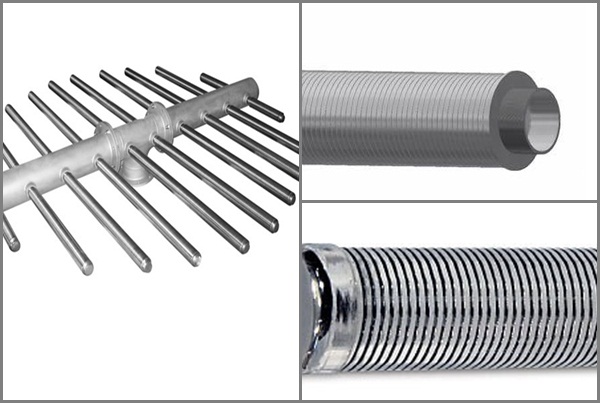

The wedge wire screen distributors are typical for flat bottom vessel distributor or collector applications. System designs can accommodate side, center, top or bottom inlet piping. Integral backwash systems can be designed for any hub and header lateral for fast effective and efficient cleaning. Inlet/outlet piping of the laterals can be flanged or threaded. All systems are designed for effective liquid or solid retention in a wide range of applications including exchangers, clay and sand filtration applications, carbon towers and power plants with water systems. We designs each system to provide equal distribution or collection to avoid flow/pressure concentrations.
Features of wedge wire screen distributor for water filtration
Very good slot width precision
High mechanical load capacity
No form closure connection that would allow vibration of the profiled bars
Automated welding process for high-precision manufacturing
Perfectly adjusted screen basket profiles
Available for all screens
Surface finishing as required
Application of wedge wire screen distributor for water filtration
Collector / Distributor system mainly used for liquid filter ,water distribution. from the material is divided into stainless steel (316) and (321). Stainless steel wire and other types. Widely used in power plants, petroleum, chemical, food, sewage treatment, water treatment equipment, the field of tap water plants and other industries.
Specifications of wedge wire screen distributor for water filtration:
Material:stainless steel
Type:header lateral
Slot:0.2.0, 0.3, 0.5, 1etc.
Screen Size | Inside Diameter | Outside Diameter | OD of Female Threaded End | ||||
in | mm | In | mm | in | mm | In | mm |
2 | 51 | 2 | 51 | 25/8 | 67 | 23/4 | 70 |
3 | 76 | 3 | 76 | 35/8 | 92 | 33/4 | 95 |
4 | 102 | 4 | 102 | 45/8 | 117 | 43/4 | 121 |
5 | 127 | 5 | 127 | 55/8 | 143 | 53/4 | 146 |
6 | 152 | 6 | 152 | 65/8 | 168 | 7 | 178 |
8 | 203 | 8 | 203 | 85/8 | 219 | 91/4 | 235 |
10 | 254 | 10 | 254 | 103/4 | 273 | 113/8 | 289 |
12 | 305 | 12 | 305 | 123/4 | 324 | 133/8 | 340 |
14 | 356 | 131/8 | 333 | 14 | 356 | _ | _ |
16 | 406 | 15 | 381 | 16 | 406 | _ | _ |
20 | 508 | 18 3/4 | 476 | 20 | 508 | _ | _ |
PROFILE WIRE |
|
|
|
|
|
|
|
|
WIDTH(mm) | 1.50 | 1.50 | 2.30 | 2.30 | 1.80 | 3.00 | 3.70 | 3.30 |
HEIGHT(mm) | 2.20 | 2.50 | 2.70 | 3.60 | 4.30 | 4.70 | 5.60 | 6.30 |
SUPPORT ROD |
|
|
|
|
|
ROUND |
WIDTH(mm) | 2.30 | 2.30 | 3.00 | 3.70 | 3.30 | Ø2.5--Ø5mm |
HEIGHT(mm) | 2.70 | 3.60 | 4.70 | 5.60 | 6.30 | ---- |
Packaging and Transportation of wedge wire screen distributor for water filtration:
