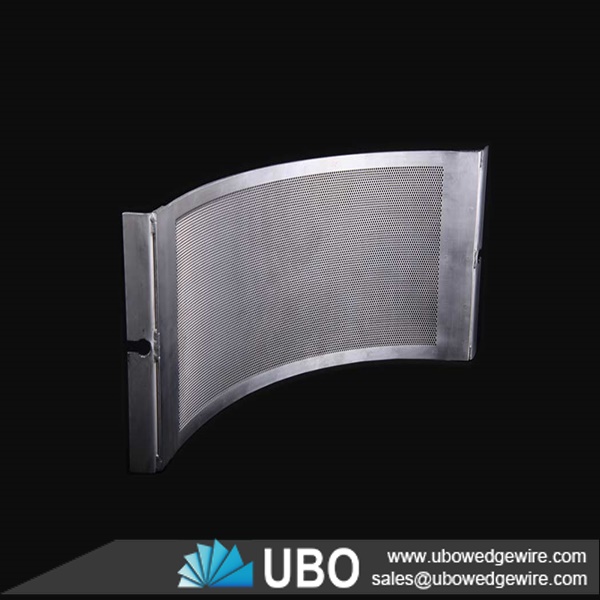

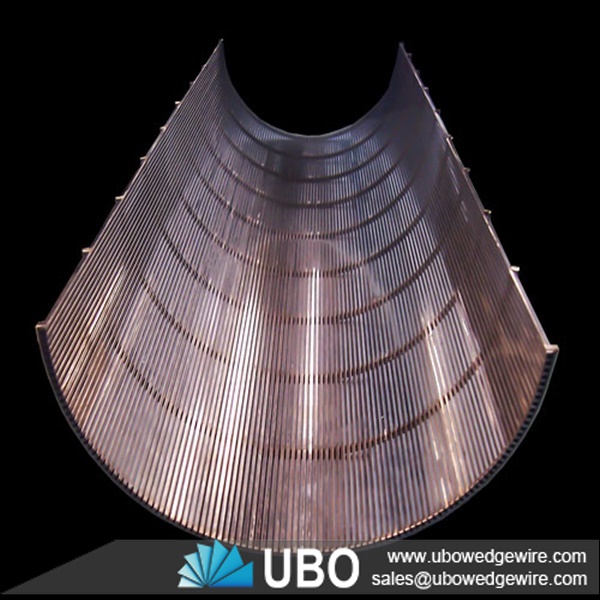

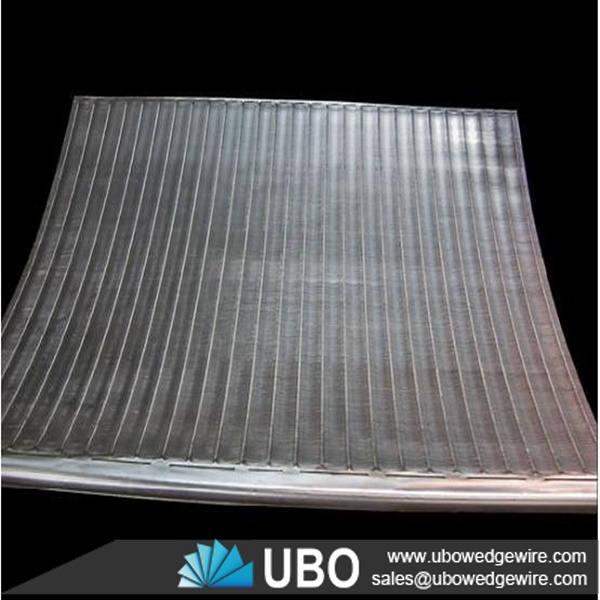

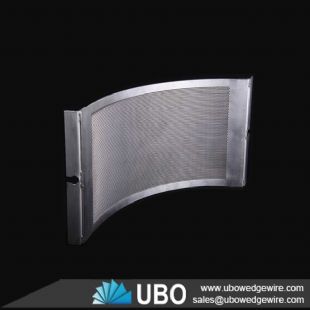

wedge wire curve screen for filtration

Category:Wedge Wire Application
Material:stainless steel304,316,316L
Properties:wedge wire screen
Application:filtration, industry filtration, food filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wedge wire curve screen for filtration

UBO Screen Company supplies various wedge wire curved screens,sieve bend screen, curved and radiuses trough screens in both 304 and 316 stainless.


Types of wedge wire curve screen for filtration


-- External Circumferential Wire.

-- External Axial Wire.

-- Internal Circumferential Wire.

-- Internal Axial Wire.

-- Looped wedge wire or resistance welded wedge wire.

Features of wedge wire curve screen for filtration

Low Headroom - only 1.1 metres (44") tall for the 900mm arc length unit.

Energy Efficient - operates with no moving parts and with no energy input.

Space Efficient - treats up to 122 litres per second per square metre of floor space.

Quiet Operation - no moving parts means no mechanical or electrical vibrations.

Accurate Sizing - can be used for sizing solid particles down to 0.2mm (0.008").

Low Maintenance - the profile wire screen resists clogging by near-size particles, and the all-stainless steel construction ensures a long, corrosion-free installation.

Easy Screen Replacement - a typical screen can be replaced in 10 minutes with no tools.

Application of wedge wire curve screen for filtration

They are used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc. Sieve bend screens are also used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load. Widely used for fiber removal in Starch industry.

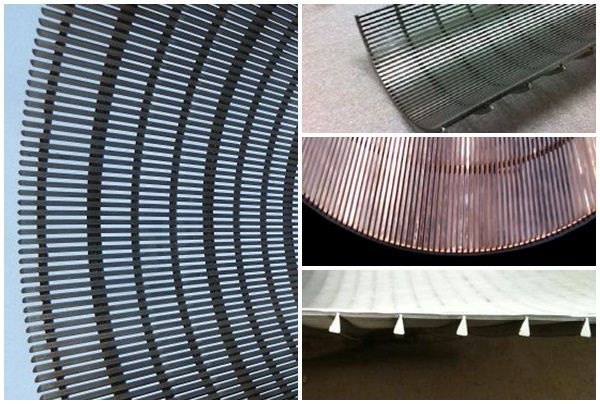

            wedge wire curve screen for filtration

Specifications of wedge wire curve screen for filtration:

wedge wire curve screen for filtration

No.



Type



Ton



Slot

Opening



Size

0.2-0.25mm slot opening Area

of through-flow mm2 (reference)

D

L1

L

M

1

TYS45-1-C

0.5

0.2-0.5

45

45

95

24

500

2

TYS53-2-B

1

0.2-0.5

53

45

100

24

570

3

TYS53-2-C

1.5

0.2-0.5

53

50

110

32

700

4

TYS57-3-B

2

0.2-0.5

57

45

110

32

600

5

TYS70-4-B

3

0.2-0.5

70

55

120

32

1000

Packaging and Transportation of wedge wire curve screen for filtration:

wedge wire curve screen for filtration
