wedge profile screen header lateral for filtration

More Views

wedge profile screen header lateral for filtrationwedge profile screen header lateral for filtrationwedge profile screen header lateral for filtration

wedge profile screen header lateral for filtration

Category:Wedge Wire Application
Material:stainless steel 302,304,304L,316,316L
Properties:wedge wire screen
Application:water treatment ,oilfield,mining,water well,food,industry,filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wedge profile screen header lateral for filtration

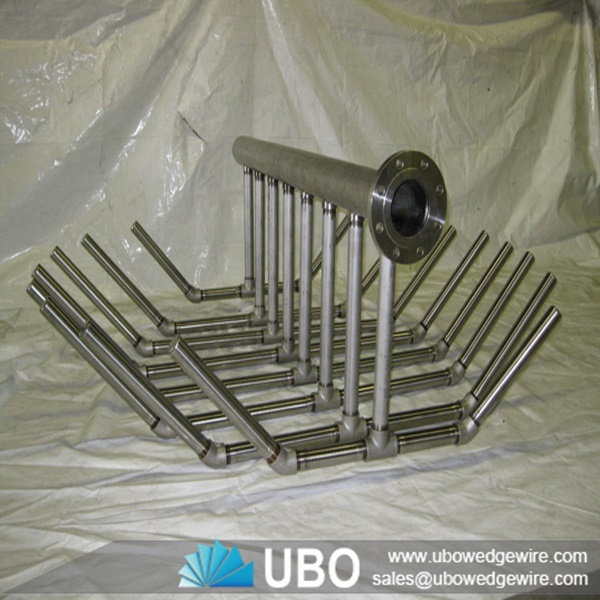

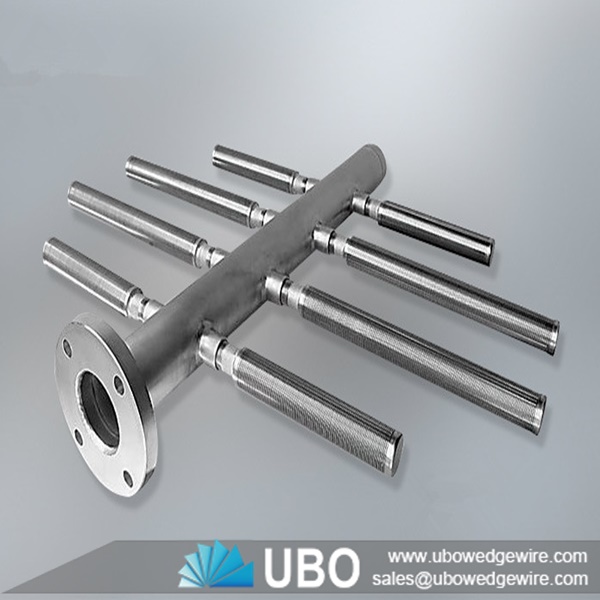

The wedge profile screen header lateral, also called header lateral assemblies, are assemblies of horizontal herring bone style wedge wire screen laterals and vertical secured round hub. The screen lateral has inherent even pattern, which is made of stainless steel, hastelloy alloy steel and other alloy steels. The screen lateral has various slot size, wire size and diameters to suit common or customized applications.

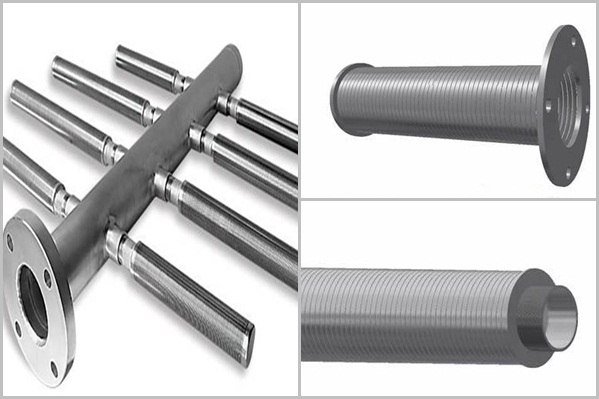

Wedge profile screen header  lateral for filtration has two type: threaded ending wedge wire screen lateral and flange ending wedge wire screen lateral. Threaded ending wedge wire screen laterals are composed of a solid cap on one end and a threaded pipe connection on the other end. The flange ending wedge wire screen lateral is composed of solid cap on one end and a flange. The different design make it possible to suit different applications and machines.

Characteristics of wedge profile screen header  lateral for filtration

High mechanical strength
High wear resistance
High impact resistance
Larger open area
Self-supporting structure
Non-plugging slot design
Lower operation and maintenance cost

Application of wedge profile screen header  lateral for filtration

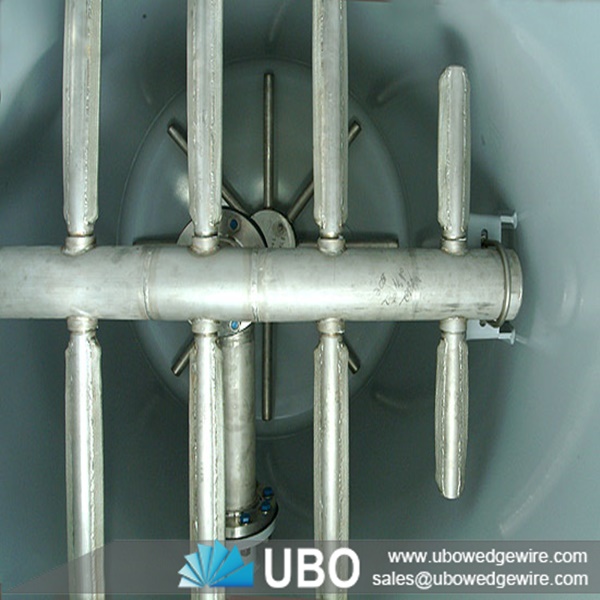

Profile screen lateral systems are important components of ion exchange units, media filters, sand filters, carbon strip vessels, carbon towers, clay filters, and in many water and wastewater treatment applications.

         wedge profile screen header lateral for filtration

Specifications of wedge profile screen header lateral for filtration:

Material:stainless steel or as your special requestments

Type:Header lateral

wedge profile screen header lateral for filtration

Type

Slot

ФA

ФB

L1

L2

L3

Pipe no

Flange1 DN

Flange2 DN

Length L

99,127,157,

199,224,254,

284,326,351,

538,508,607,

635,665,707,

792,834,861,

889,919,

1016,1046,

1088

AME

0.05

0.1

0.2

0.3

0.5

1

32

40

57

76

89

76

89

108

133

159

219

1100

1280

1500

1700

1800

2000

2500

3200

420

480

600

680

720

1100

1280

1500

1700

1800

6

8

10

12

25

32

40

50

65

80

50

65

80

100

125

150


Above information, all dimensions is mm.
