wedge metal wire round screen pipe for filtration

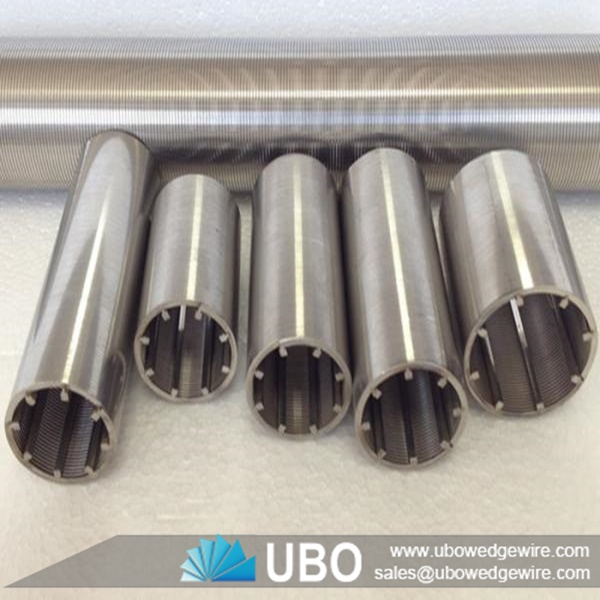

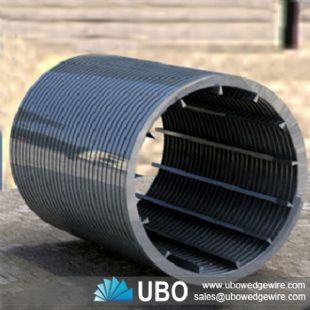

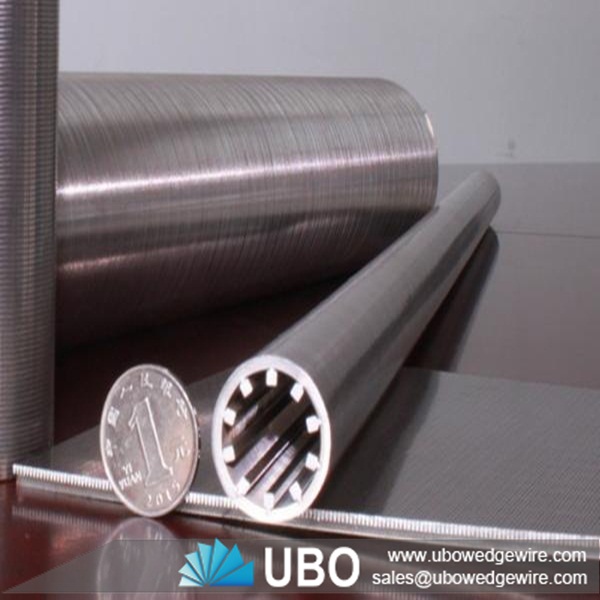

More Views

wedge metal wire round screen pipe for filtrationwedge metal wire round screen pipe for filtrationwedge metal wire round screen pipe for filtration

wedge metal wire round screen pipe for filtration

Category:Wedge Wire Application
Material:stainless steel 302,304,304L,316,316L
Properties:wedge wire screen
Application:water treatment ,oilfield,water well,industry,filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wedge metal wire round screen pipe for filtration

wedge metal wire round screen pipe has a delicate structure and high open area, as well as accurate slot dimension. At the same time, it has characteristics of heat-resisting, anti-corrosive, good machine capability, long service life, safety and reliability and so on. It can be used in many kinds of medium filtering. Such as oil, chemical acid, the alkali liquid filters, the ethyl alcohol, etc.

Characteristic of wedge metal wire round screen pipe for filtration

Continuous slot: support rods and longitudinal wire makes an opening which significantly increase the available opening area, and allow better access to the water flow.

High open area: reduce the water level, thus to save energy consumption. Meanwhile, high open area can make the groundwater enter the screen much slower than other filtration apparatus, which can avoid sand from entering screen due to high pressure, hereby lowering pump wear down.

High Strength: It takes stainless steel as main raw material, then is welded at high temperature, which guarantee high strength to bear big water pressure, hereby it has long life span.

Usages of wedge metal wire round screen pipe for filtration

-- Water and waste water

-- Pulp and paper

-- Chemical

-- Petrochemical

-- Water supply

-- Mineral and aggregate processing

-- Plastics extrusion

-- Machine coolant filtration

-- Architectural application

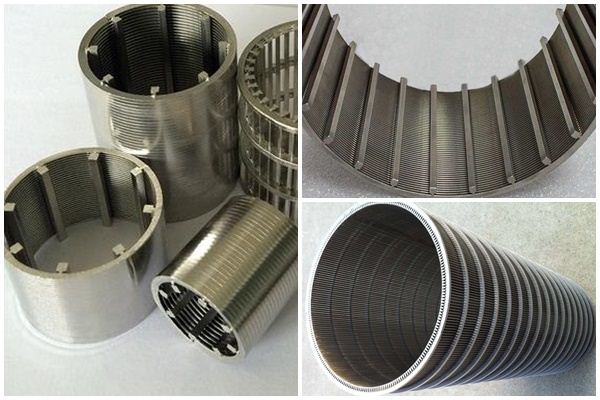

         wedge metal wire round screen pipe for filtration

Specifications of wedge metal wire round screen pipe for filtration:



Screen Size


Inside Diameter


Outside Diameter


OD of Female Threaded End


in


mm


In


mm


in


mm


In


mm


2


51


2


51


25/8


67


23/4


70


3


76


3


76


35/8


92


33/4


95


4


102


4


102


45/8


117


43/4


121


5


127


5


127


55/8


143


53/4


146


6


152


6


152


65/8


168


7


178


8


203


8


203


85/8


219


91/4


235


10


254


10


254


103/4


273


113/8


289


12


305


12


305


123/4


324


133/8


340


14


356


131/8


333


14


356


_


_


16


406


15


381


16


406


_


_


20


508


18 3/4


476


20


508


_


_



PROFILE WIRE


WIDTH(mm) 1.50 1.50 2.30 2.30 1.80 3.00 3.70 3.30
HEIGHT(mm) 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30


SUPPORT ROD


ROUND
WIDTH(mm) 2.30 2.30 3.00 3.70 3.30 Ø2.5--Ø5mm
HEIGHT(mm) 2.70 3.60 4.70 5.60 6.30 ----

Packaging and Transportation of wedge metal wire round screen pipe for filtration:

packing

transport
