water slot well screen tube for filtration
Category: | Wedge Wire Application |
---|---|
Material: | stainless steel 302,304,304L,316,316L |
Properties: | wedge wire screen |
Application: | water treatment ,oilfield,mining,water well,food,industry,filtration |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of water slot well screen tube for filtration

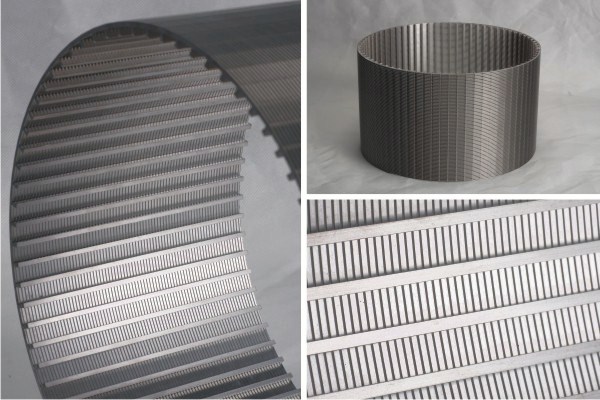

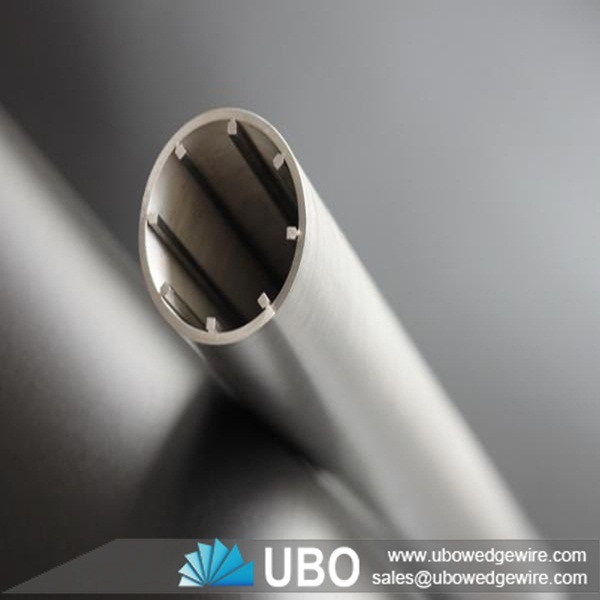

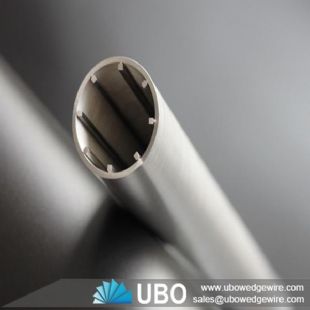

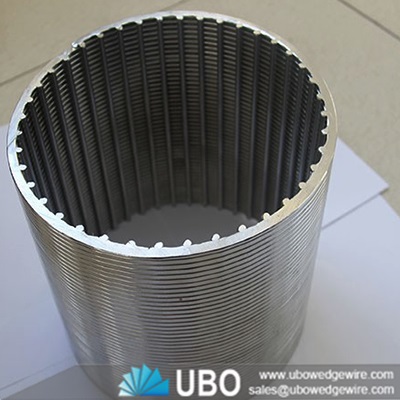

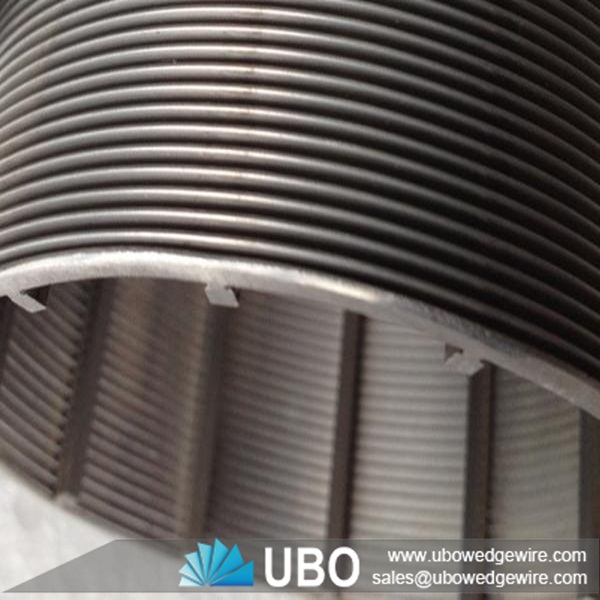

The water slot well screen tube is popularly used in making of water well screen. water well screen is made up of supporting rods and wire screening strips. The supporting rod can be round wire, triangular wire or trapezoid wire. The screening filter is made of triangular wire (V-shaped wire).
Features of water slot well screen tube for filtration
1) Continuous opening has greatly increased the water flow area, so offers a better contact with the aquifer.
2) V-type profile of the structure to avoid clogging and ensure smooth flow.
3) Continuous long-term effective use of the pore.
4) Trapezoidal filter pipe offers a solid structure, high porosity, and accurate poring.
5) Trapezoidal wire filter pipe is easy for washing, long service life, safe, reliable, comprehensive and low cost.
Advantages of water slot well screen tube for filtration
1) Screens with high open area are more suitable for the construction of high-quality water wells and gas wells.
2) Low cost operation.
3) Reduce the abrasion of the pump.
4) Extend the life span of wells, low-carbon, Galvanized or stainless steel construction.
Applications of water slot well screen tube for filtration
Water slot well screen tube is used in a wide range of architectural situations such as floor grates to cover water run off drains in places such as driveways, car parks, shopping centres or malls. They can be constructed to carry pedestrian traffic or much heavier traffic such as fork lifts or standard vehicular traffic.
Specifications of water slot well screen tube for filtration:
Material:stainless steel
Type:screen pipe
Size
(inch) |
O.D
(mm) |
Slot
(inch) |
Collapse Strength
(Psi) |
Tensile Weight
(Ton) |
Wrap(thick*deep)
(mm) |
Rods
(mm) |
4 |
117 |
0.04 |
395 |
6 |
2.2*3.0 |
3.8mm/22 |
4 |
114.3 |
0.04 |
395 |
6 |
2.3*3.0 |
3.8mm/22 |
6 |
168.3 |
0.04 |
252 |
8 |
2.3*3.5 |
3.8mm/32 |
8 |
219.1 |
0.01 |
399 |
10.5 |
3.0*5.0 |
3.8mm/48 |
8 |
219.1 |
0.02 |
370 |
10.5 |
3.0*5.0 |
3.8mm/48 |
8 |
219.1 |
0.04 |
323 |
10.5 |
3.0*5.0 |
3.8mm/48 |
10 |
273.1 |
0.01 |
206 |
11 |
3.0*5.0 |
3.8mm/50 |
10 |
273.1 |
0.02 |
191 |
11 |
3.0*5.0 |
3.8mm/50 |
10 |
273.1 |
0.04 |
167 |
11 |
3.0*5.0 |
3.8mm/50 |
Packaging and Transportation of water slot well screen tube for filtration:
