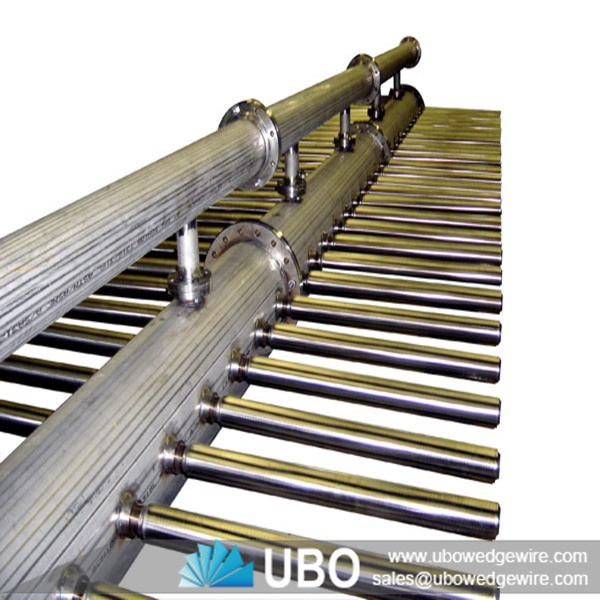

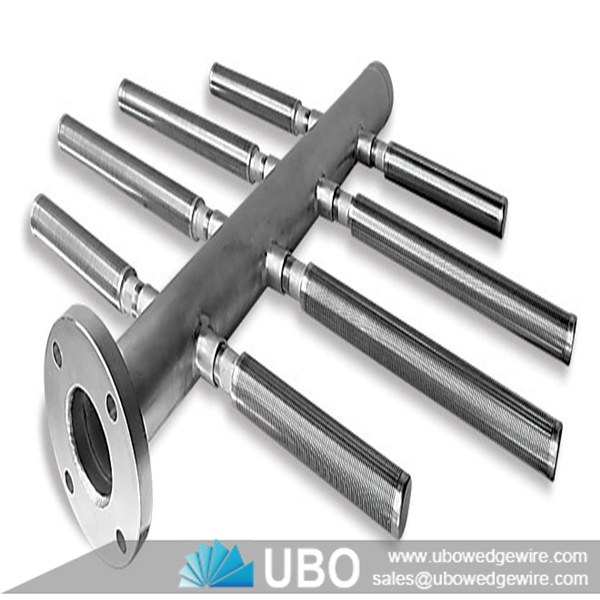

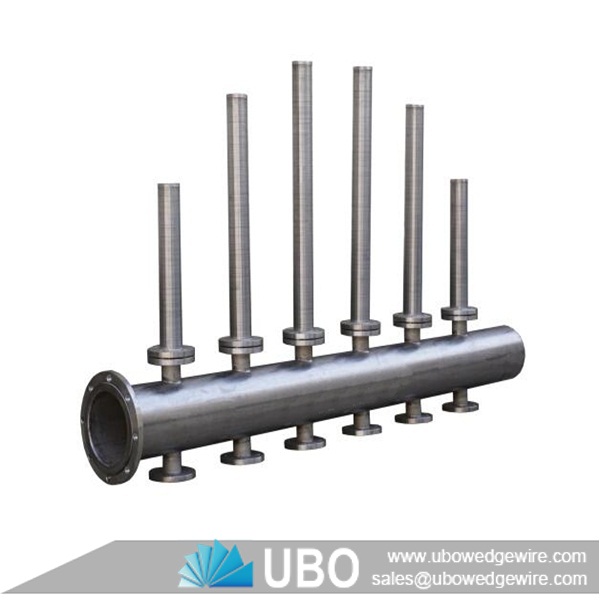

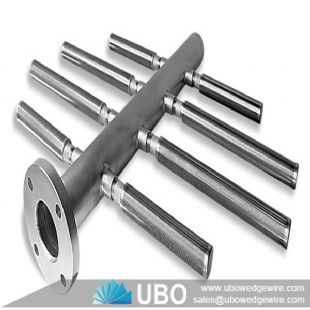

water intake for header lateral screen

More Views

water intake for header lateral screenwater intake for header lateral screenwater intake for header lateral screen

water intake for header lateral screen

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of water intake for header lateral screen

Stainless steel header laterals can replace the traditional laterals.
With the advantage of the wrap wire screens pipe, large flow area, uniform water distribution, high mechanical strength, temperature resistance, pressure resistance, aging resistance, corrosion resistance have been greatly improved. Even if the branch pipe bending occurs, the resin still can’t flow out. Stainless steel wire slot size can be designed according to the resin size.

Features of water intake for header lateral screen

Continuous slot: support rods and longitudinal wire makes an opening which significantly increase the available opening area, and allow better access to the water flow.

High open area: reduce the water level, thus to save energy consumption. Meanwhile, high open area can make the groundwater enter the screen much slower than other filtration apparatus, which can avoid sand from entering screen due to high pressure, hereby lowering pump wear down.

High Strength: It takes stainless steel as main raw material, then is welded at high temperature, which guarantee high strength to bear big water pressure, hereby it has long life span.

Application of water intake for header lateral screen

Food & Beverage Screens
Mineral & Aggregate Processing
OEM Screen Components
Pulp & Paper Screens
Refining & Petrochemical
Water Process & Fluid Treatment
Water/oil Well

water intake for header lateral screen

Specifications of water intake for header lateral screen:



Diameter (mm)

Φ20, Φ50, Φ53, Φ57, Φ60, Φ65, Φ70, Φ75, Φ80, Φ100, Φ125, Φ200, Φ245, Φ300, Φ320, Φ360, Φ400, Φ450, Φ500, Φ550, Φ600, max. 1200

Slot (mm)

0.010, 0.015, 0.02, 0.05, 0.1, 0.15, 0.2, 0.25, 0.3, 0.5......15 ……

Length (mm)

50~6000

Material

stainless steel (AISI 304, 316, 316L...), low carbon steel, low carbon steel galvanized zinc, steel treated with plastic spraying

Note

Non-standard offer, can be produced as per request



water intake for header lateral screen
