water filter nozzle for water treatment
Category: | Wedge Wire Application |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | wedge wire screen |
Application: | water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration. |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

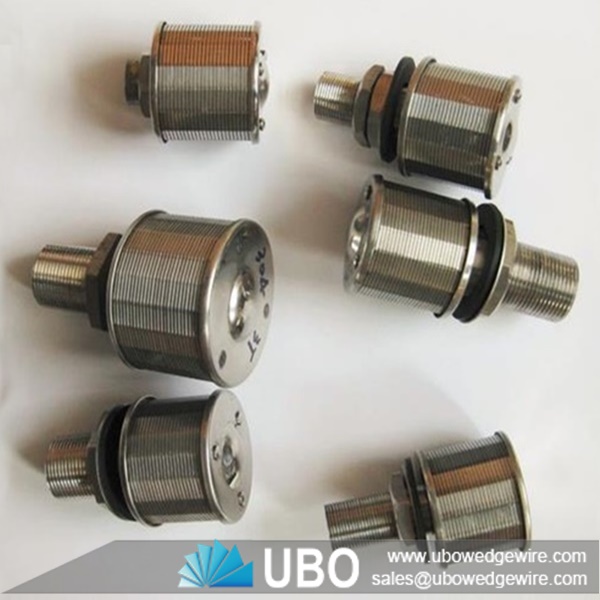

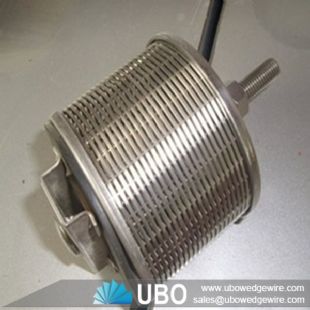

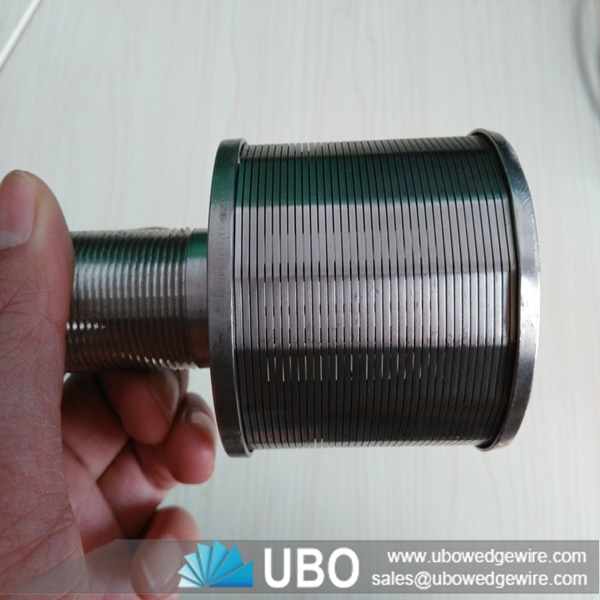

Details of water filter nozzle for water treatment
Water filter nozzle are widely used in various industries, especially suitable for water treatment or liquid filtration.The main part of the nozzle is stainless steel wedge wire screen . It’s a new type filter component.
The water filter nozzle has a long life. The precise filter ratings are from 20 microns. It is made by welding with profile wire on every connection spots. According to diddferent application, There are many different kinds of connectors for the stainless steel nozzle.
Advantage of water filter nozzle for water treatment
Excellent roundness
Very good slot width precision
High mechanical load capacity
No form closure connection that would allow vibration of the profiled bars V-shaped wire around the twin tube water cap for metallurgical industry
Automated welding process for high-precision manufacturing
Perfectly adjusted screen basket profiles
Available for all screens
Structure of water filter nozzle for water treatment
1.We use wedge-shaped profile wire in order to make the slot v-shaped.It can stop the impurities very well.
2.The wedge wire was welded on the support wire well-proportioned and have perfect roundness. Ensure the screen have bigger filter area and non obstructive, avoid the high concentration of impurities
3.After work for a period of time, the filter can be back flush.It can use for many times.
Filtering direction from outside to inside (FOTI)
Application of water filter nozzle for water treatment
The wedge wire screen filter nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.Small systems may be built moduarly from off-the-shelf components requiring minimal customization.
Specifications of water filter nozzle for water treatment:
No. |
(mm)TYPE |
OD |
ID |
Support wire Number |
Filter direction |
1 |
SRD25.4 |
25.4 |
18.6 |
12 |
FOTI |
2 |
SRD 33 |
33 |
24 |
8 |
FOTI |
3 |
SRD 37 |
37 |
28 |
8 |
FOTI |
4 |
SRD 40 |
40 |
31 |
8/10 |
FOTI/FITO |
5 |
SRD 45 |
45 |
36 |
10/12 |
FOTI/FITO |
6 |
SRD 48 |
48 |
38 |
12 |
FOTI/FITO |
7 |
SRD 60 |
60 |
51 |
12 |
FOTI/FITO |
8 |
SRD 70 |
70 |
61 |
12/18 |
FOTI/FITO |
9 |
SRD 85 |
85 |
76 |
18 |
FOTI/FITO |
