v wire wrapp screen pipe for industry filteration

More Views

v wire wrapp screen pipe for industry filterationv wire wrapp screen pipe for industry filterationv wire wrapp screen pipe for industry filteration

v wire wrapp screen pipe for industry filteration

Category:Wedge Wire Application
Material:stainless steel 302,304,304L,316,316L
Properties:wedge wire screen
Application:water filtration,liquid filtration,industry filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of v wire wrapp screen pipe for industry filteration

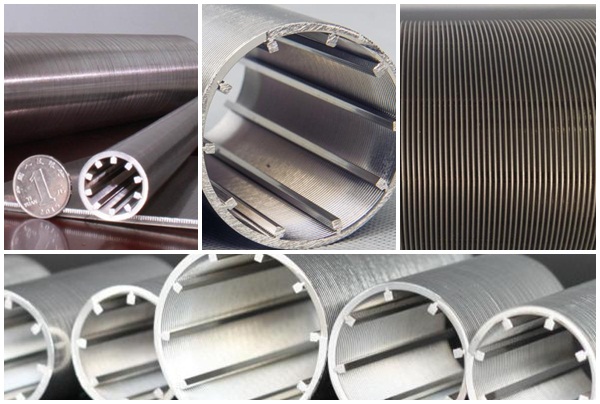

The v wire wrapp screen pipe manufactured by wrapping a shaped wire around an internal array of longitudinal rods.The wire and rod, generally made from carbon or stainless steel are joined by resistance welding. Screen sections are usually twenty feet long. Commonly referred to as continuous slot or wire wrap screen, this product was originally developed to overcome problems associated with cable tool wells drilled in fine grained.

Features of v wire wrapp screen pipe for industry filteration

1) The screen pipe have the efficient sand prevention performance can preferably forbid the formation particle and fulfill the need of sand control.

2) Even filter pores, high permeability and anti-blocking.

3) Large filtering area, small flow resistance and high oil extraction rate

4) Stainless material has the corrosion resistant ability of antacid, alkali and salt, can easily suit the special requirement of the petroleum well. And the slot wont be enlarged because of the corrosion.

5) Multiple structure was welded together with stable filtering pore which made the strong non-deformability.

Usages of v wire wrapp screen pipe for industry filteration

1) Widely used in vairous kinds of medium filtering

2) As the fitting using in the water-treating equipment ( the environment protection; the sea water transforms into the industrial water and life use water desalination treatment; running water treatment; softening treatment;

3) The petroleum industry: the petroleum product terminal filters and the chemical acid; the alkali liquid filters, the ethyl alcohol;

4) The organic solution recycling filter.

              v wire wrapp screen pipe for industry filteration

Specifications of v wire wrapp screen pipe for industry filteration:



v wire wrapp screen pipe for industry filteration

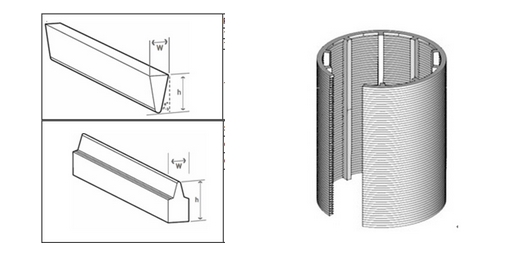

Specification
(Profile wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30


Specification (support rods):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Round: From 2.50mm to 6.0mm


Note: other wires and rods can be customed according to your requests


Slot size

0.10, 0.15, 0.20, 0.25, 0.30... 6.00mm also

achieved upon request.


Material:

Low carton, low carton galvanized steel (LCG), stainless steel (304,316 etc.)


Length

Lengths up to 6 meters.


Diameter

ranging from 25mm to 800mm.


End connection

Plain beveled ends for butt welding or threaded


The special specification according to your request .

Packaging and Transportation of v wire wrapp screen pipe for industry filteration:

1) First step:  bubble bag pack Johnson screen

2) Second step: Johoson screen with bubble bag in wooden case
