v-shaped slot Wedge Wire screen for Refining
Category: | Wedge Wire Application |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | stainless steel wedge wire |
Application: | deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of v-shaped slot Wedge Wire screen for Refining
This type of screen made up of rods and warp, the rod can be round wire,triangular wire and trapezoid wire.The wire is welded to the rods and produces a rigid unit that has high strength and minimum weight. The warp is triangular wire(v-shape wire). The water well screens have a structure and high open area;as well as accurate slot dimension. Water well screen have heat -resistant, anti-corrosive, good machine capability,last long, safety and reliability and so on.
Application for v shaped slot Wedge Wire screen for refining:
The stainless steel wire screen can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.
Features for v shaped slot Wedge Wire screen for refining:

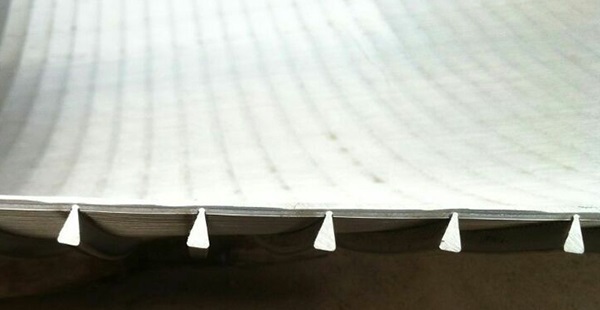

The stainless steel Wedge Wire filter screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.
Specifications of v-shaped slot Wedge Wire screen for Refining:
Specification (wedge wire):
|
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
|
Specification (support rod):
|
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
|
Note: other specifications available as per request
|
|
Slot size
|
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
|
Material:
|
galvanized low carton (LCG), stainless steel (304,316 etc.)
|
Length
|
up to 6 meters.
|
Diameter
|
from 25mm to 1200mm.
|
End connection
|
Plain beveled ends, flanged or threaded couplings
|
