v shape Wedge Wire screen tube for filtration

More Views

v shape Wedge Wire screen tube for filtrationv shape Wedge Wire screen tube for filtrationv shape Wedge Wire screen tube for filtration

v shape Wedge Wire screen tube for filtration

Category:Wedge Wire Application
Material:stainless steel
Properties:wedge wire screen
Application:water,oil,liquid filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of v shape Wedge Wire screen tube for filtration

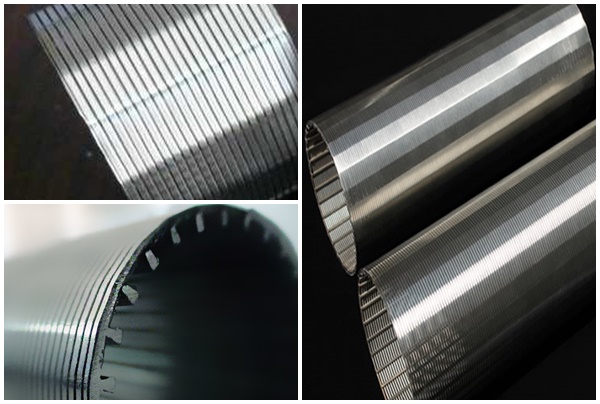

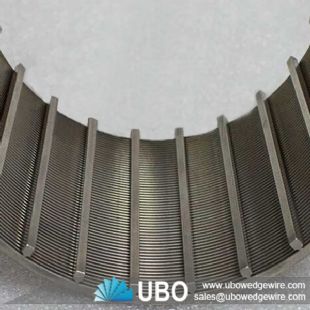

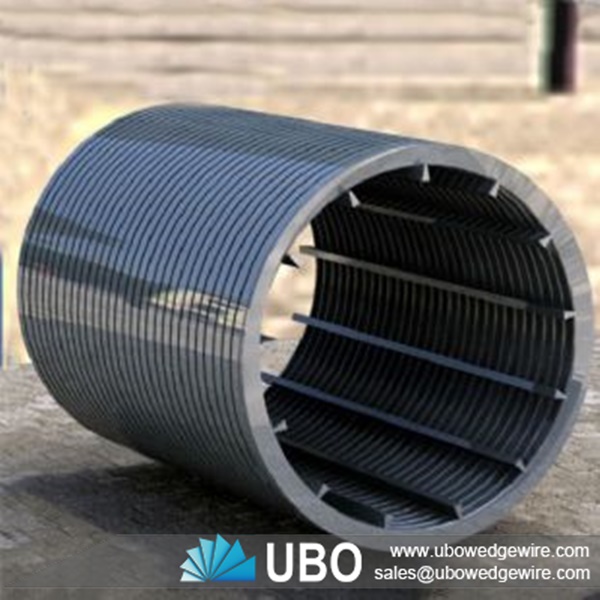

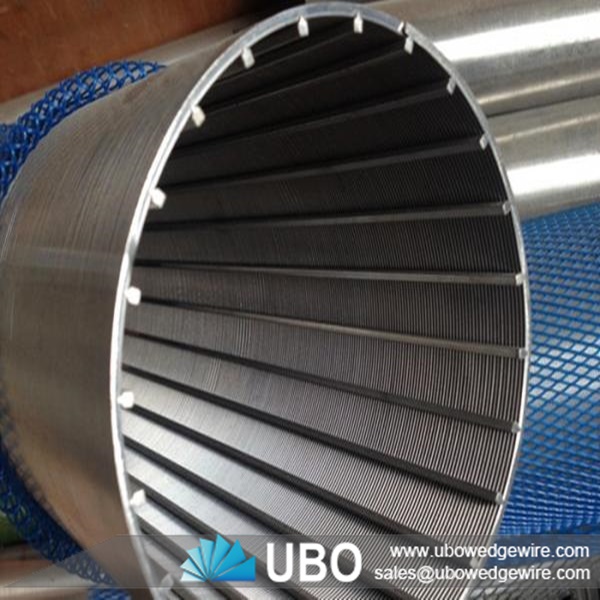

are made from V shaped profile wire, which is spirally wound around a cage of longitudinal support rods. Each intersecting point of these wires is fusion welded, with an unique welding process. This spacing gives passage for water to enter. The entire process is completed on fully computerized machines. The pitch of winding gives different spacing between two adjacent turns of wire.

Feature & application of v shape Wedge Wire screen tube for filtration

v shape Wedge Wire screen tube have the features of great strength, precision, long service life and a wide range of applications in the field of process and engineering such as waste water treatment, sugar juice filtration, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation, filtration of oils, greases, water, fuels, paints, food products, liquid cooling agents, and chemicals etc.

Advantages v shape Wedge Wire screen tube for filtration

Wedge Wire screen has a continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone (the aquifer)
A uniform and efficient well development due to the continuous slot opening.
A "V" shaped profile wire which avoids clogging and ensures an uninterrupted flow.

v shape Wedge Wire screen tube for filtration

Specifications of v shape Wedge Wire screen tube for filtration:

Usage: Liquid Filter

Type: Filter Elements

Material: Metal Fiber

Filter Rating: 60%-80%

Technique: Welded

Wedge Wire screen pipe

Wedge wire filter

Material:

AISI304/316/316L,Galvanized low carton.

Wedge Wire (mm):

Width : 1.50 1.80 2.30 3.00 3.30 3.70

Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support Rod (mm):

Width : 2.30 3.00 3.30 3.70

Height : 2.70 3.60 4.70 5.60 6.30

Round : 2.50mm -- 6.0mm

Slot Size

0.10 -- 6.00mm ,also can be customized as your request.

Length

Max 6 meters.

Diameter

25mm -- 1200mm.

Note: Other specifications can be customized according to your requirement.

Packaging and Transportation of v shape Wedge Wire screen tube for filtration:

transport
