Quality Wedge Wire Screen Manufacturer in China

stainless steel wire wrap screen pipe

More Views

stainless steel wire wrap screen pipestainless steel wire wrap screen pipestainless steel wire wrap screen pipe

stainless steel wire wrap screen pipe

Category:Wedge Wire Application
Material:stainless steel304,316,316L
Properties:wedge wire screen
Application:water filtration,oil filtration,industry filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of stainless steel wire wrap screen pipe

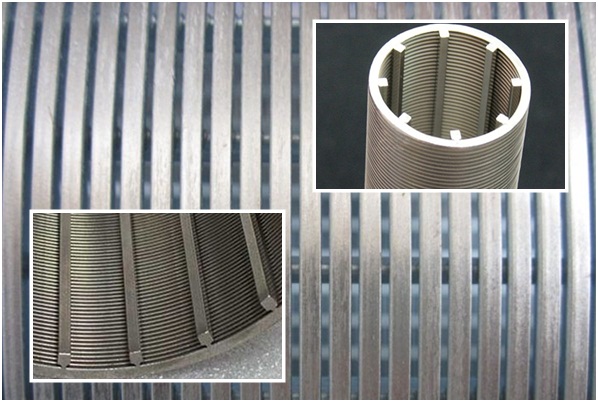

The stainless steel wire wrap screen pipe is manufactured with V-shaped profile wire, which is spirally wound around a cage of longitudinal support rods.

Each intersecting point of these wires if fusion welded. The pitch of winding gives different spacing between two adjacent turns of wire.

This spacing gives passage for water to enter.

The entire process is completed on fully computerized machines.

Features of stainless steel wire wrap screen pipe

The welded stainless steel wire wrapped pipe screen is made up of rods and profile wire. The rod can be round wire, triangular wire or trapezoid wire. The profile wire is triangular wire (V-shaped wire). This type of pipe screen has a structure and high open area, as well as accurate slot dimension. At the same time, stainless steel pipe screen has heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

Applications of stainless steel wire wrap screen pipe

V Wire Screen pipe is used in a wide range of architectural situations such as floor grates to cover water run off drains in places such as driveways, car parks, shopping centres or malls. They can be constructed to carry pedestrian traffic or much heavier traffic such as fork lifts or standard vehicular traffic.

stainless steel wire wrap screen pipe

Specifications of stainless steel wire wrap screen pipe:

  • Slot size: 0.10, 0.15, 0.2, 0.25, 0.30mm, up to 3mm.
  • Diameter available: 1.5”, 2”, 3”, 4”, 6”, 8”, 10”, 12”, 14”.
  • Open area: up to 60%.
  • Material: low carbon, low carbon galvanized steel (LCG) steel treated with plastic. spraying, stainless steel (304).
  • Lengths up to 6 meters.
  • Diameter: ranging from 25 to 2000mm.
  • End connection: plain beveled ends for butt welding or threaded.

stainless steel wire wrap screen pipe

Packaging and Transportation of stainless steel wire wrap screen pipe:

1) Each product is packed with bubble bag and then few bags to a wooden case (fumigation certificate)

2) We have a very trust forwarding company cooperate for long time and establish a solid partnership,of course,you can also arrange forward to take products from our factory.
