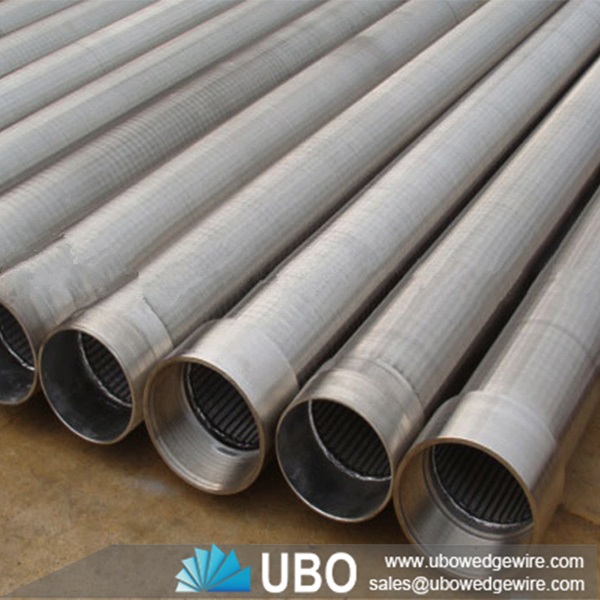

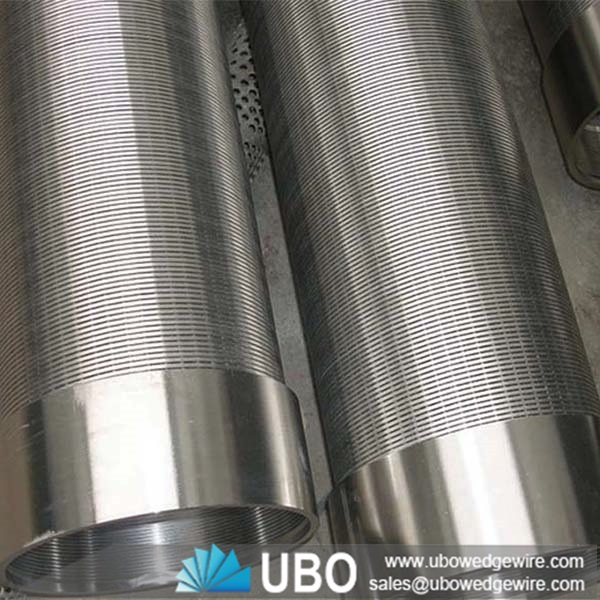

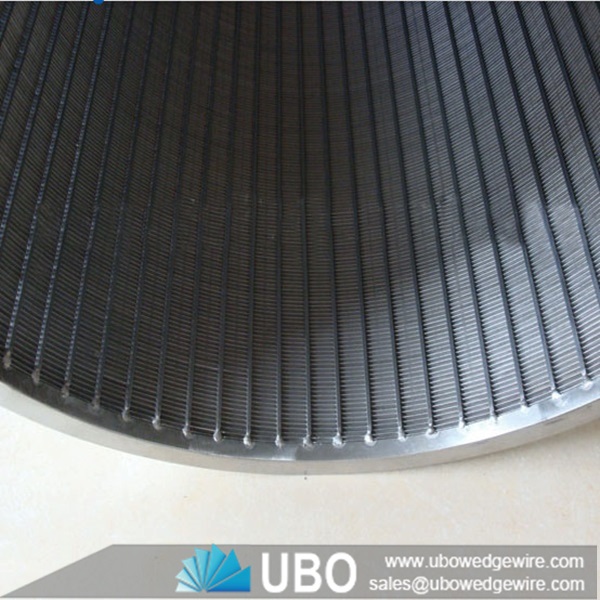

stainless steel screen Environmental Water Treatment  Pulp & Paper Technologystainless steel screen Environmental Water Treatment  Pulp & Paper Technologystainless steel screen Environmental Water Treatment  Pulp & Paper Technology

stainless steel screen Environmental Water Treatment Pulp & Paper Technology

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:stainless steel wedge wire
Application:paper machines, recycling, dewatering, debris removal, fiber fractionalization, drying, water purification

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of stainless steel screen Environmental Water Treatment Pulp & Paper Technology

    Wedge wire screen are made during simultaneous winding of specially profiled working wires on a spiral and welding them to carrying wires placed along the tube. This technology allows the production of wedge wire screens when very high gap precision and screen resistance are required. Due to using the newest welding technology we can obtain various distances between carrying wires, very accurate and repeatable gap and therefore produce screens according to customer’s particular requirements.

Application for stainless steel screen Environmental Water Treatment Pulp & Paper Technology:

Pulp and paper plants use our screens in the wood yard, paper machines, recycling, dewatering, debris removal, fiber fractionalization, drying, water purification and other processes. Wedge Wire Screens are also applied in mineral processors, refinery, wastewater treatment and water supply systems.

Advantage for stainless steel screen Environmental Water Treatment Pulp & Paper Technology:

1. A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.
2. A uniform and efficient well development due to the continuous slot opening.
3. Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
4. Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

Fatuers for stainless steel screen Environmental Water Treatment Pulp & Paper Technology:

1. Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2. Low cost operation Screens with high open area shall favor groundwater infiltration. Abundant water shall reduce the water levels down, thus to save energy consumption.
3. Reduce the abrasion of the pump
Under the same condition, high open area can make the speed of groundwaters entering into the screen much slower than any other filtration apparatus, which will avoid sands entering into screen because of high pressure, thus reduce the abrasion of the pump.

Construction for stainless steel screen Environmental Water Treatment Pulp & Paper Technology:

1.We use wedge-shaped profile wire in order to make the slot v-shaped. It can stop the impurities very well.
2.The wedge wire was welded on the support wire well-proportioned and have perfect roundness. Ensure the strainer have bigger filter area and non obstructive, avoid the high concentration of impurities.
3. After work for a period of time, the strainer can be back flush. It can use for many times.

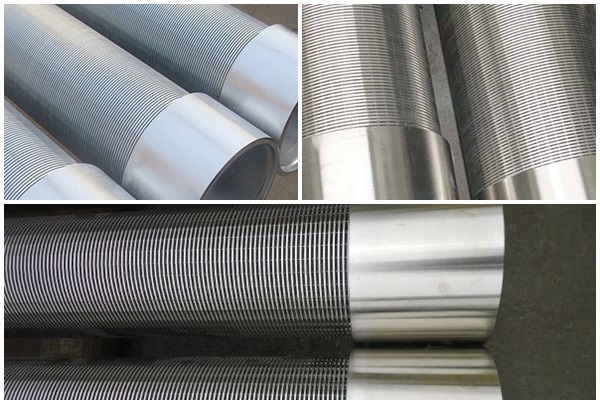

stainless steel screen Environmental Water Treatment  Pulp & Paper Technology

Specifications of stainless steel screen Environmental Water Treatment Pulp & Paper Technology:

stainless steel screen Environmental Water Treatment  Pulp & Paper Technology



Size
(inch)
O.D
(mm)
Slot
(inch)
Collapse Strength
(Psi)
Tensile Weight
(Ton)
Wrap(thick*deep)
(mm)
Rods
(mm)
4
117
0.04
395
6
2.2*3.0
3.8mm/22
4
114.3
0.04
395
6
2.3*3.0
3.8mm/22
6
168.3
0.04
252
8
2.3*3.5
3.8mm/32
8
219.1
0.01
399
10.5
3.0*5.0
3.8mm/48
8
219.1
0.02
370
10.5
3.0*5.0
3.8mm/48
8
219.1
0.04
323
10.5
3.0*5.0
3.8mm/48
10
273.1
0.01
206
11
3.0*5.0
3.8mm/50
10
273.1
0.02
191
11
3.0*5.0
3.8mm/50
10
273.1
0.04
167
11
3.0*5.0
3.8mm/50
