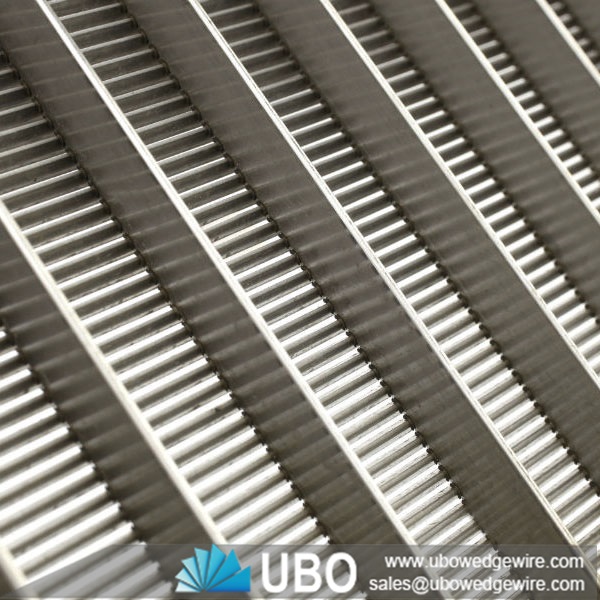

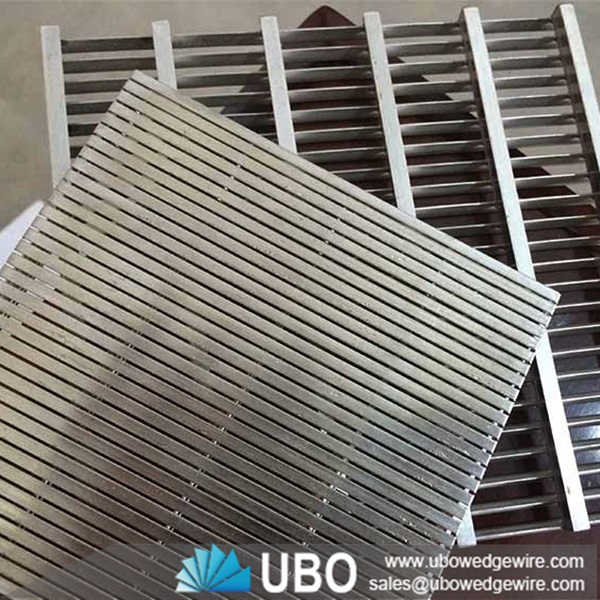

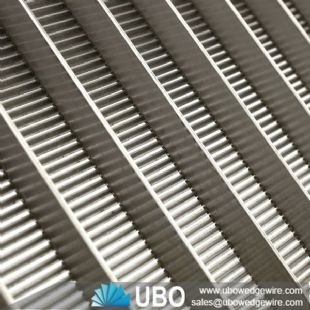

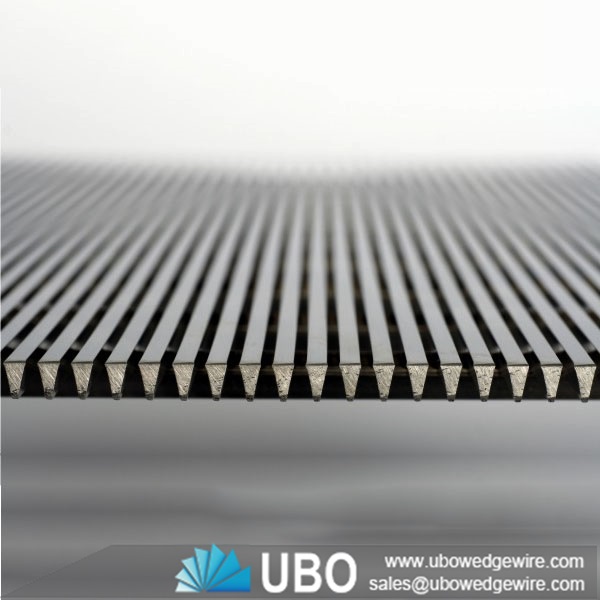

stainless steel flat wedge wire screen panel

More Views

stainless steel flat wedge wire screen panelstainless steel flat wedge wire screen panelstainless steel flat wedge wire screen panel

stainless steel flat wedge wire screen panel

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Wedge wire Screen Panels
Application:the water-treating equipment;the environment protection; the sea water transforms into the industrial water and life use water desalination treatment

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of stainless steel flat wedge wire screen panel

   Stainless steel Flat wedge screen panel is made of SS Support "V"shaped rod or Convex shape wire with an unique welding process, offering great strength precision ,long service life . The Screen have a perfectly flat and smooth surface with rectangular openings , also named flat wedge wire screen ,flat wedge wire screen panel or wedge wire .

stainless steel flat wedge wire screen panel

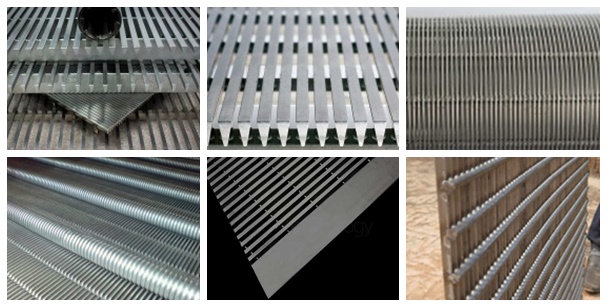

Application for stainless steel flat wedge wire screen panel:

Applications for wedge wire screen panels include cross flow sieve, vibrating screen decking, mineral processing, surface water intake screens, fish diversion screen panels, hatchery screens, food processing, and flooring for malt kiln, germination, and grain drying.

Advantage foe stainless steel flat wedge wire screen panel:

A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.
A ‘V’ shaped profile wire which avoids clogging and ensures uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.

stainless steel flat wedge wire screen panel

Specifications of stainless steel flat wedge wire screen panel:

stainless steel flat wedge wire screen panel






Surface Profile

W
H

Material

10S

0.75
1.425

S304,S316L Hastelloy, Monel alloy of nickel

 and titanium, and other stainless steel

11SL

10.75
1.8

22S

1.8
3.7

4S

0.45
1.2

50SL

3.4
7.5



Surface Profile
W
H
Material
Q22
2
2.28

S304,S316L Hastelloy, Monel alloy of nickel

 and titanium, and other stainless steel

Q35
3
5
Q53
4
3
D56
4
5.6
D45
3.8
6.0

Packaging and Transportation of stainless steel flat wedge wire screen panel:

stainless steel flat wedge wire screen panel
