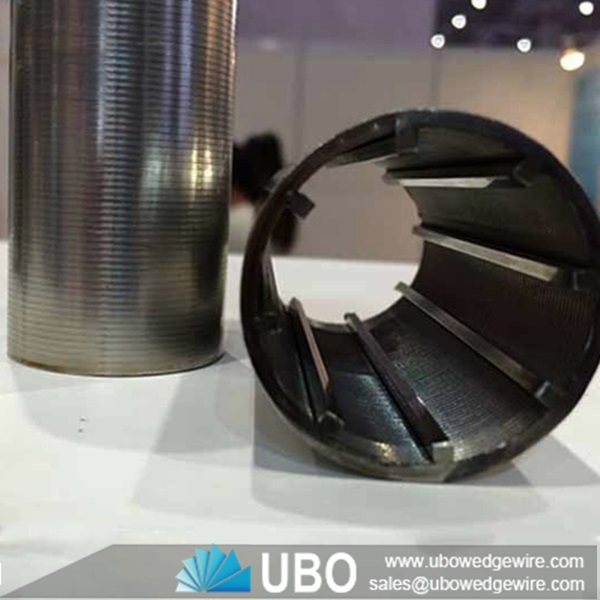

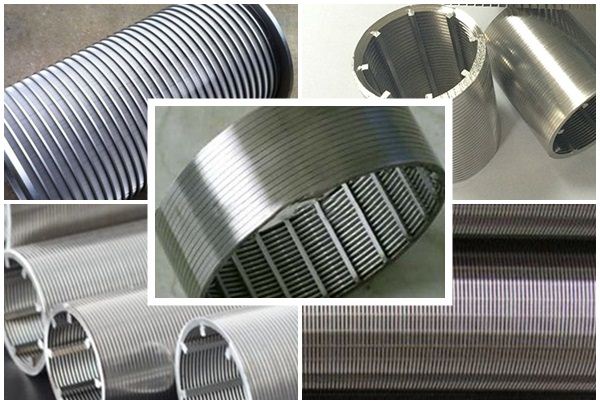

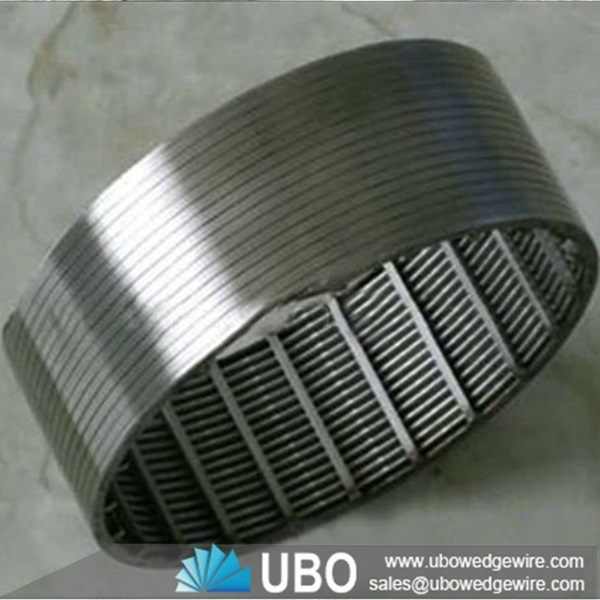

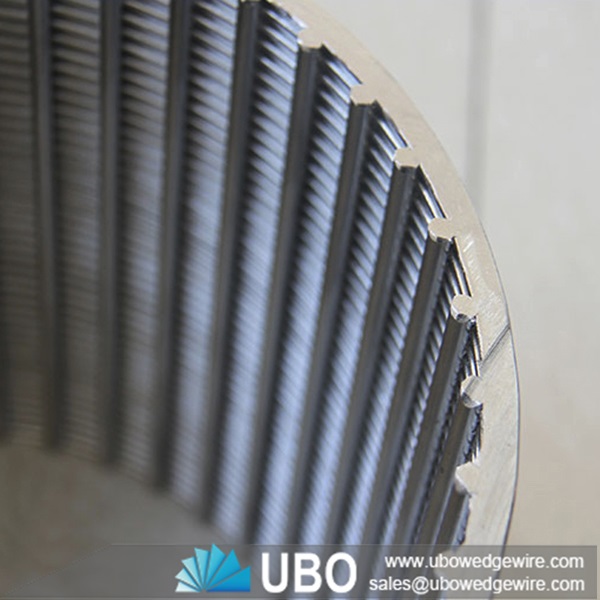

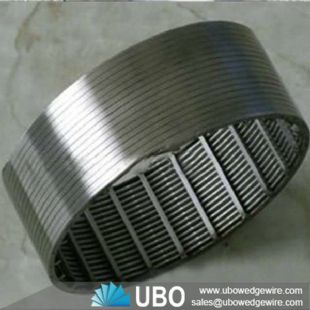

stainless steel filter cylinder screen for Pulp & Paper

More Views

stainless steel filter cylinder screen for Pulp & Paperstainless steel filter cylinder screen for Pulp & Paperstainless steel filter cylinder screen for Pulp & Paper

stainless steel filter cylinder screen for Pulp & Paper

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Stainless Steel Pipe
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of stainless steel filter cylinder screen for Pulp & Paper

     This type of screen made up of rods and warp, the rod can be round wire,triangular wire and trapezoid wire.The wire is welded to the rods and produces a rigid unit that has high strength and minimum weight.The warp is triangular wire(v-shape wire).The water well screens have a structure and high open area;as well as accurate slot dimension. well screen cylinder have heat -resistant,anti-corrosive,good machine capability,last long ,safety and reliability and so on.

Application for stainless steel filter cylinder screen for Pulp & Paper:

wedge wire screen is widely used in filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens, lauter tun screens,many other liquids, solids separation applications.

Characteristics for stainless steel filter cylinder screen for Pulp & Paper:

The benefit of wedge wire screen is more open area, have very precise openings ,maximum design flexibility, stronger and more durable, economical ,easier installation and long-term operating etc.

Advantage for stainless steel filter cylinder screen for Pulp & Paper:

1. A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone
2. A V-shaped profile wire which avoids clogging and ensures an uninterrupted flow.
3. A uniform and efficient well development due to the continuous slot opening.
4. Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
5. Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

In Hot Selling All The World :

Malaysia ; Singapore ; Philippines ; Vietnam; India ; Turkey ; Kuwait;Poland ; Holland ; Bulgaria ; Macedonia ;The USA ; Australian ; Brazil ; Romanian ;Saudi Arabia ; Iran ; Thailand ; Pakistan ; South Africa;



stainless steel filter cylinder screen for Pulp & Paper

Specifications of stainless steel filter cylinder screen for Pulp & Paper:

stainless steel filter cylinder screen for Pulp & Paper



Outside Diameter
Profile
wire
Rod
wire
Rod
quantity
Slot
size
Length
DN
Inch
mm
mm
mm

mm
mm
20
3/4
26.9
1.5*2
2*3
12
0.1~0.25
45~3000
25
1
33.7
1.5*2
2*3
14
0.1~0.25
45~3000
32
1~1/4
42.4
1.5*2
2*3
16
0.1~0.25
45~3000
40
1~1/2
48.3
1.5*2
2*3
16
0.1~0.25
45~3000
50
2
60.3
1.5*2
2*3
18
0.1~0.5
45~3000
65
2~2/2
76.1
1.5*2
2*3
20
0.1~0.5
45~3000
80
3
88.9
1.8*2.5
2*3
24
0.1~0.5
45~3000
100
4
114.3
1.8*2.5
2*3
30
0.5~2
1000~6000
125
5
139.7
2.3*2.7
2*3
36
0.5~2
1000~6000
150
6
168.3
2.3*2.7
3*5
44
0.5~2
1000~6000
200
8
219.1
3.3*4.5
3*4.7
56
0.5~2
1000~6000
250
10
273
3.3*4.5
4*6
66
0.5~2
1000~6000
300
12
323.9
3.3*4.7
4*6
72
0.5~2
1000~6000
350
14
355.6
3.7*5
4*6
80
0.5~2
1000~6000
400
16
406.4
1.5*2
2*3
94
0.1~2
1000~6000
450
18
457
2*3
4*5
112
0.1~2
500~400
500
20
508
2*3
4*5
124
0.1~2
500~400
550
22
559
2*3
4*5
140
0.1~2
500~400
600
24
610
2*3
4*5
156
0.1~2
500~400
Siot:0.1mm~2mm    Tolerance:0.05

Packaging and Transportation of stainless steel filter cylinder screen for Pulp & Paper:

Each product is packed with bubble bag and then few bags to a wooden case (fumigation certificate)
