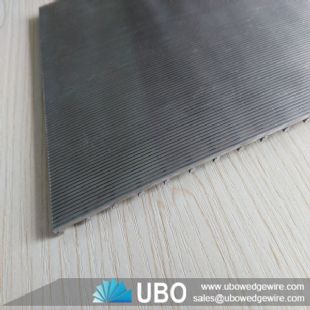

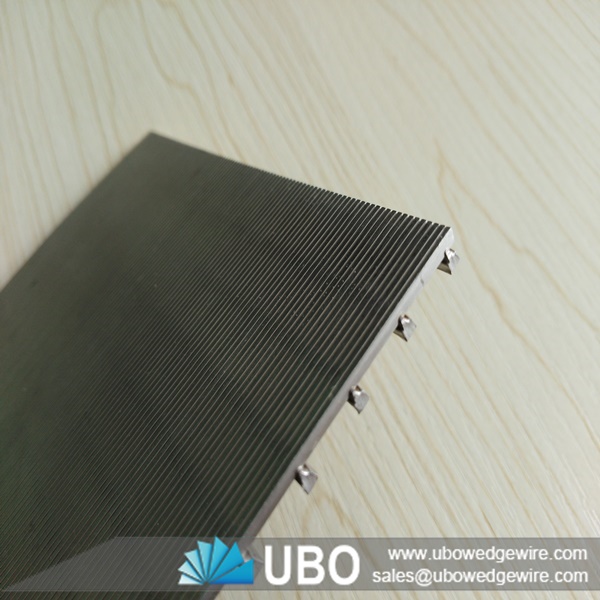

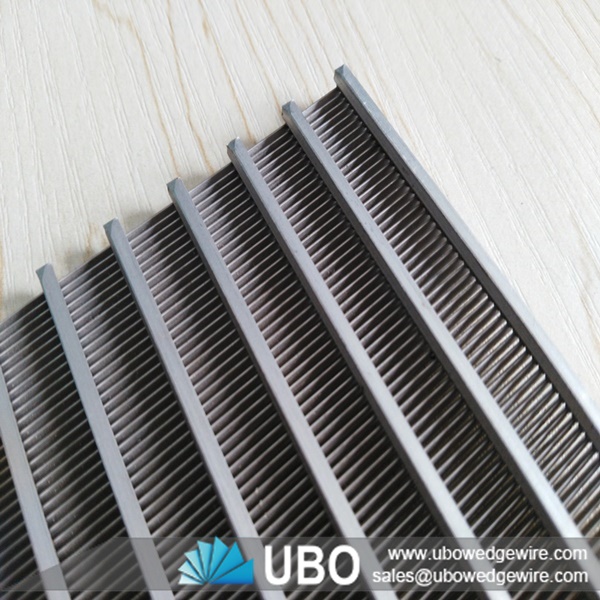

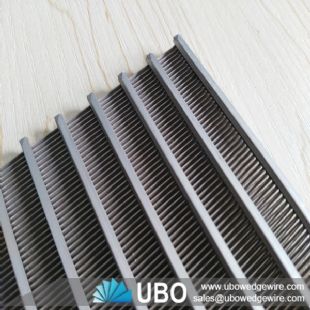

stainless steel Wedge Wire screen plate for filtration

More Views

stainless steel Wedge Wire screen plate for filtrationstainless steel Wedge Wire screen plate for filtrationstainless steel Wedge Wire screen plate for filtration

stainless steel Wedge Wire screen plate for filtration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of stainless steel Wedge Wire screen plate for filtration

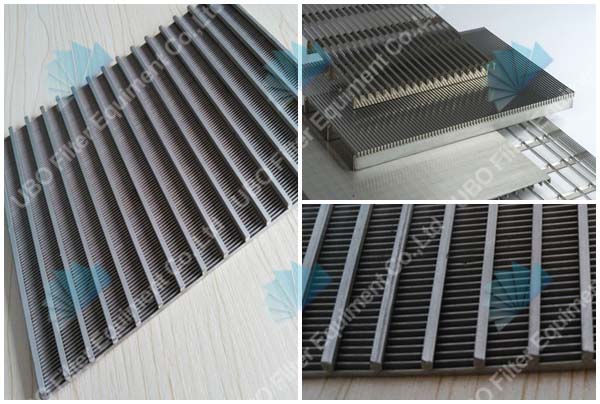

stainless steel Wedge Wire screen plate, also called wedge wire flat screens, wedge wire panels, are manufactured with stainless steel surface profiles and support profiles. The surface profile are welded onto support profiles at each intersection in a 90 degree.

Wedge wire screen panels are composed of surface profile and support profile. The surface profile is commonly triangle wire, and the support profile can be triangle wire, wedge wire, round bar and rectangular bar. They can suit different machines and can be used in various applications.

stainless steel Wedge Wire screen plate for filtration

Features of stainless steel Wedge Wire screen plate for filtration

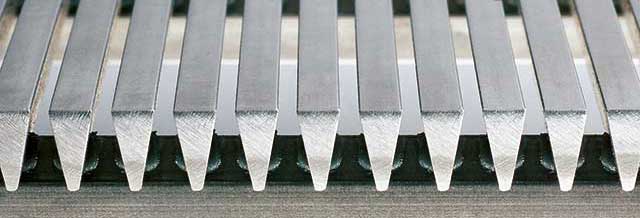

stainless steel Wedge Wire screen plate can be designed to maximize the open area, strength and wear life to suit any application. Welded Wedge Wire Screens are made from V shaped profile wire, with an unique welding process, offering great strength, precision, long service life.

Uses of stainless steel Wedge Wire screen plate for filtration

applications in the field of process, engineering such as sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation, filtration of oils, greases, paints, food products, water, fuels, liquid cooling agents, chemicals etc.

stainless steel Wedge Wire screen plate for filtration

Specifications of stainless steel Wedge Wire screen plate for filtration:

stainless steel Wedge Wire screen plate

Material:

Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)

Wedge Wire (mm):

Width : 1.50 1.80 2.30 3.00 3.30 3.70

Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support Rod (mm):

Width : 2.30 3.00 3.30 3.70

Height : 2.70 3.60 4.70 5.60 6.30

Width:

from 1 inch -----45 inch.

Length:

Max 6 meters.

Slot size

Slot size

Note other as your requirement

stainless steel Wedge Wire screen plate

Packaging and Transportation of stainless steel Wedge Wire screen plate for filtration:
