Wrap slot stainless steel wire screen pipe for filtration

More Views

Wrap slot stainless steel wire screen pipe for filtrationWrap slot stainless steel wire screen pipe for filtrationWrap slot stainless steel wire screen pipe for filtration

Wrap slot stainless steel wire screen pipe for filtration

Category:Wedge Wire Application
Material:stainless steel 302,304,316,316L
Properties:wedge wire screen
Application:water, oil, food, beer euipment,industry filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wrap slot stainless steel wire screen pipe for filtration

These screens are known in variety of names like water well screens , wedge wire well screens, v wire screens, continuous slot well screens, wire wrapped screens etc.

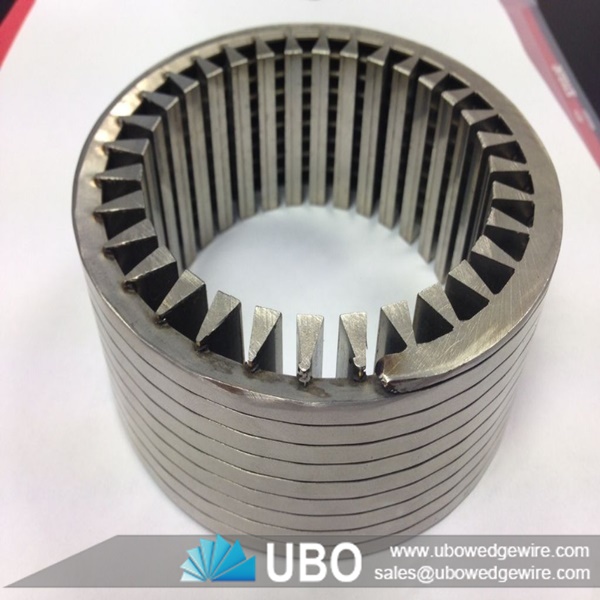

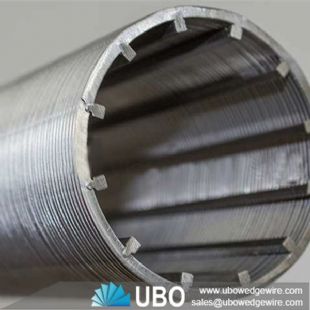

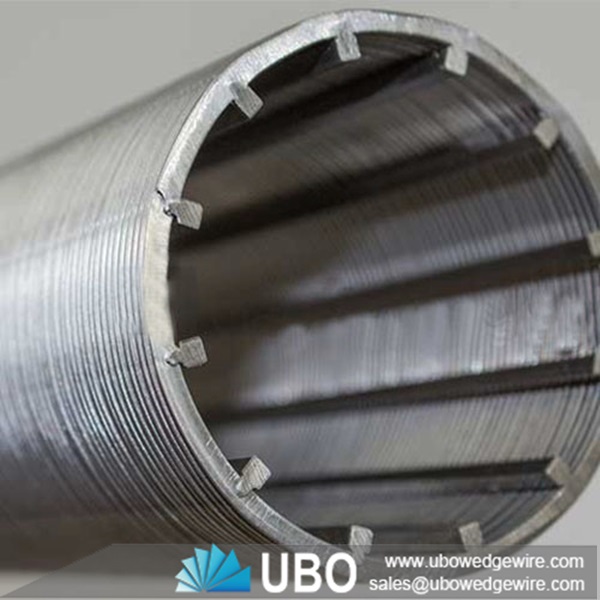

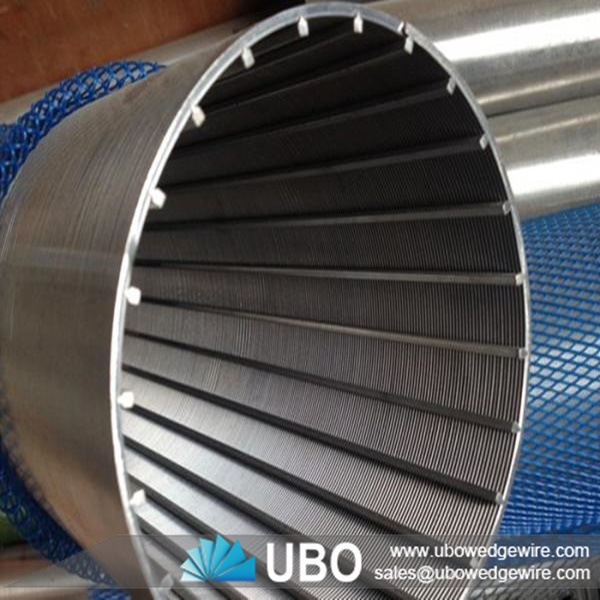

A wedge shaped wire is wrapped / spirally wound on internal array of support rods. Each and every intersection is welded automatically. This creates a continuous non clogging slot.

Features of wrap slot stainless steel wire screen pipe for filtration

1) Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.

2) Low cost operation Screens with high open area shall favor groundwater infiltration. Abundant water shall reduce the water levels down, thus to save energy consumption.

3) Reduce the abrasion of the pump

Under the same condition, high open area can make the speed of groundwaters entering into the screen much slower than any other filtration apparatus, which will avoid sands entering into screen because of high pressure, thus reduce the abrasion of the pump.

4) Extend the life span of wells

Applications of Wrap slot stainless steel wire screen pipe for filtration

-- De-watering;
-- Separating;
-- Filtering;
-- Straining;
-- Sizing
-- Drying
-- Media retention
-- Water intake

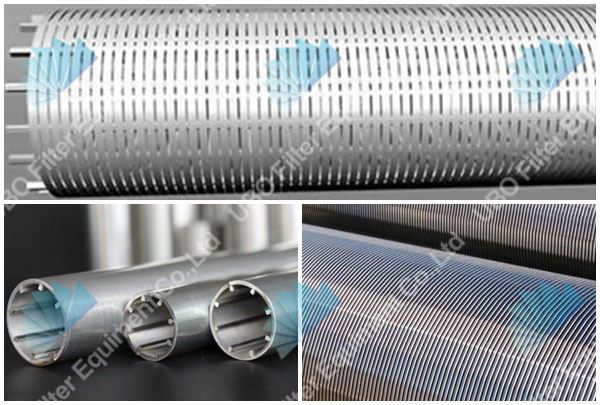

 Wrap slot stainless steel wire screen pipe for filtration

Specifications of Wrap slot stainless steel wire screen pipe for filtration:

SLOT

(INCH)

LENGTH

(m)

WIDTH

(m)

COLLAPSE

STERENG

(PSI)

TENSILE

WEIGHT

(TON)

WRAP

(thick*deep)

(mm)

RODS

(mm)

0.04

1-6

0.5-2

395

6

2.2*3.0

3.8mm/22

0.04

1-6

0.5-2

395

6

2.3*3.0

3.8mm/22

0.04

1-6

0.5-2

252

8

2.3*3.5

3.8mm/32

0.01

1-6

0.5-2

399

10.5

3.0*5.0

3.8mm/48

0.02

1-6

0.5-2

370

10.5

3.0*5.0

3.8mm/48

0.04

1-6

0.5-2

323

10.5

3.0*5.0

3.8mm/48

0.01

1-6

0.5-2

206

11

3.0*5.0

3.8mm/50

0.02

1-6

0.5-2

191

11

3.0*5.0

3.8mm/50

0.04

1-6

0.5-2

167

11

3.0*5.0

3.8mm/50


Wrap slot stainless steel wire screen pipe for filtration

Packaging and Transportation of Wrap slot stainless steel wire screen pipe for filtration:

packing
