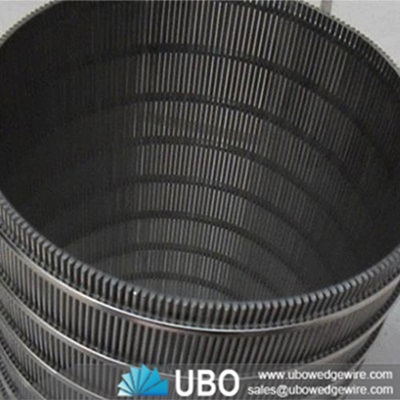

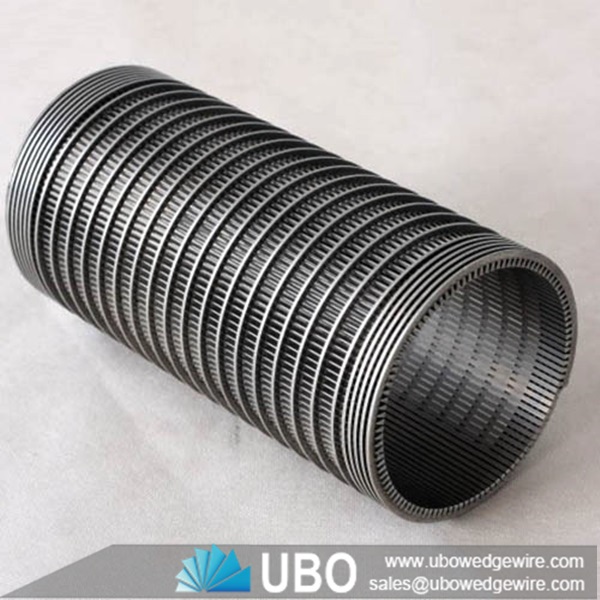

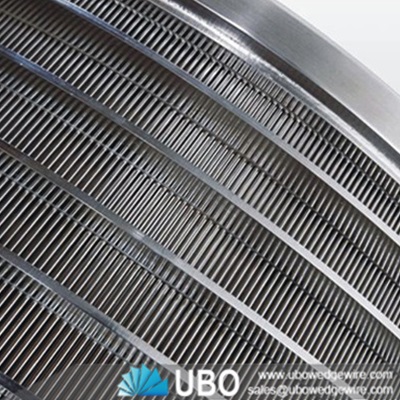

Wire Wrapped Stainless Steel Water Well Slot Screen
Category: | Wedge Wire Application |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | Wedge Wire Cylinder |
Application: | deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Wire Wrapped Stainless Steel Water Well Slot Screen
Flat welded wedge wire panels offer a perfectly flat and smooth surface with rectangular openings. This kind of wedge wire can replace traditional media like wire mesh cloth, perforated plate and other metal sifting materials as components for rotary screen, well screen, quarry screen.
Welded Wedge Wire Screens are made in panel or cylinder type from V shaped profile wire, with an unique welding process, offering great strength, precision, long service life
Applications for Wire-Wrapped Stainless Steel Water Well Slot Screen:
Cylinder screen is used in food processing, waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an auger or screw press to separate solids from liquids in food, waste water, minerals and industrial grit/chips from coolant.
Advantages for Wire-Wrapped Stainless Steel Water Well Slot Screen:
A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.
A 'V' shaped wedge wire which avoids clogging and ensures uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.
Offering great strength. precision, long service life.
Feature for Wire-Wrapped Stainless Steel Water Well Slot Screen:
V-Shaped Slots: Openings shaped like a "v" that open toward the inside of the well tend to allow the particles that are just barely smaller than the width of the slot pass. In other shapes of openings, these particles would get caught in the screen and clog it.
Continuous Slots: The special design gives continuous slot opening across the periphery and length of screen.
Very Large Open Area: This design gives continuous slot and hence the% open area for water to enter is more than 2 times that of conventional slotted pipes of any size and slot opening. This allows more water to enter at much lesser frictional head loss and the efficiency of tube well is improved appreciably.
Better Sand Filtration: Due to specialize manufacturing process, wide range of slot opening is available down to 0.15mm to allow proper slot selection depending upon the size of sand in particular area. This gives better sand control and reduced pump maintenance and longer tube well life.
Energy Saving: Due to reduce frictional head losses and increased discharge, the pump load reduces the power required to pump same quantity of water. Power saving of around 20-25% is observed.
Specifications of Wire Wrapped Stainless Steel Water Well Slot Screen:
Specification (wedge wire): |
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
Specification (support rod): |
Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm |
Note: other specifications available as per request |
|
Slot size |
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request. |
Material: |
galvanized low carton (LCG), stainless steel (304,316 etc.) |
Length |
up to 6 meters. |
Diameter |
from 25mm to 1200mm. |
End connection |
Plain beveled ends, flanged or threaded couplings |
