Wire Wrap V Shape Stainless Steel Water Well Screen

More Views

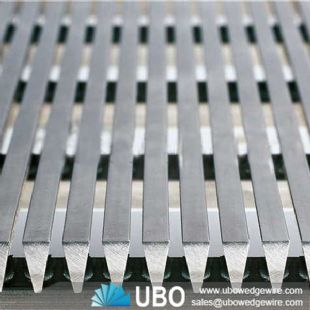

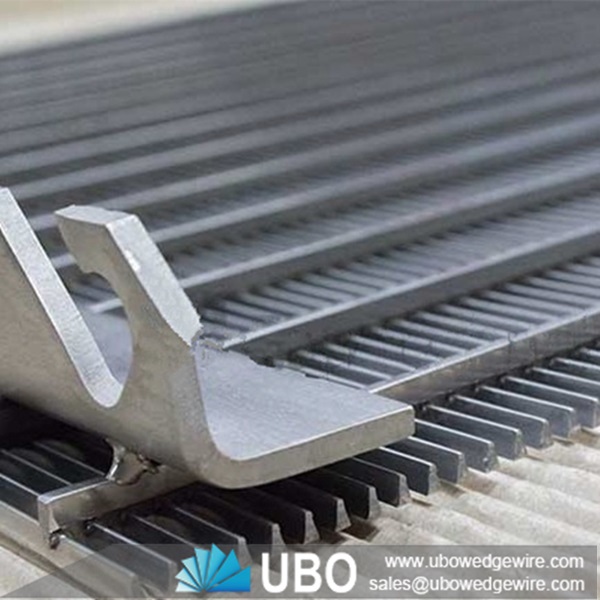

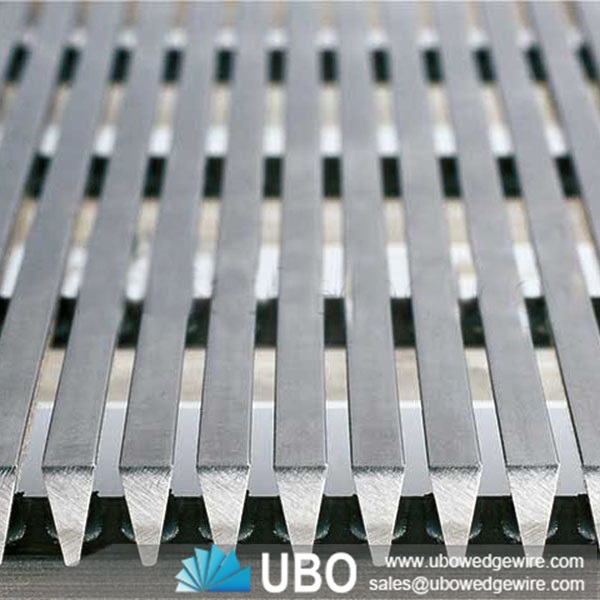

Wire Wrap V Shape Stainless Steel Water Well ScreenWire Wrap V Shape Stainless Steel Water Well ScreenWire Wrap V Shape Stainless Steel Water Well Screen

Wire Wrap V Shape Stainless Steel Water Well Screen

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wire Wrap V Shape Stainless Steel Water Well Screen

Stainless Steel Johnson V wire water well screen is made by winding cold-rolled wire, approximately triangular in cross section, around a circular array of the longitudinal rods. The wire is attached to the rods by welding, producing rigid one-piece units having high strength characteristics at minimum weights.

Each slot opening between adjacent wires is V-shaped, resulting from the special shape of the wire used to form the screen surface. The V-shaped openings, designed to be nonclogging, are narrowest at the outer face and widen inwardly.

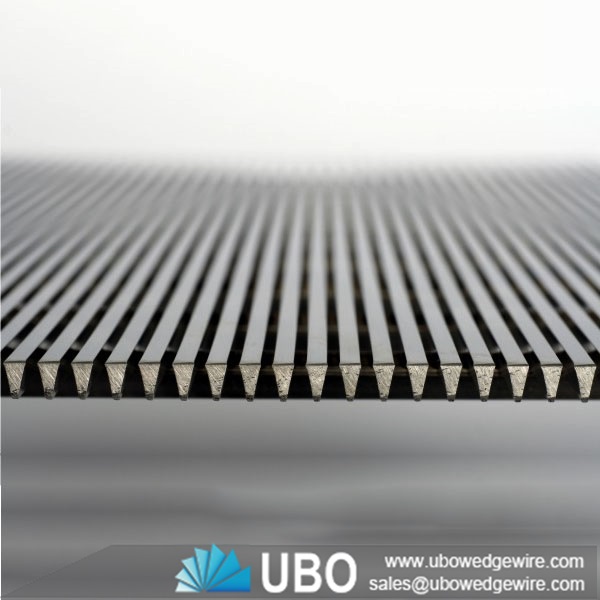

Wire wrap V shape stainless steel water well screen

Applications for Wire Wrapped V Shape Stainless Steel Water Well Screen:

Petroleum industry. Oil filtration.
Water treatment industry. Desalination of seawater, treatment of industrial water and domestic water. Water softening treatment.
Chemical industry. End products of chemical organic solution filtration, such as acid, alkali liquid filtration, alcohol and other products filtering.
Hydro-geological exploration.
Drilling construction.
Geothermal development.

Features for Wire Wrapped V Shape Stainless Steel Water Well Screen:

Pipe base screen consists of two screens or multilayer screens.
Perforated pipe inside ,with perforations wrapped by the outside Johnson type screen.
The screen jacket and base pipe are welded together with a length of coupling.
The base pipe can be made of seamless pipe or welded pipe, and more often, casing pipes.
ID of Johnson type screen equals OD of the perforated pipe.
Pipe base screen combines stainless steel or carbon steel casing with continuous slot well screens for additional strength in deep well applications. The pipe strength allows smaller wrap wires to be used, allowing for greater open area.

Advantagess for Wire Wrapped V Shape Stainless Steel Water Well Screen:

-- Higher Collapse resistance.

-- Higher Load Strength.

-- Easily controlled open area for regulated flow rates.

-- Threaded Fittings in any specifications required.

-- Base pipes can be manufactured using stainless steel grades series or API 5CT carbon steel casing.

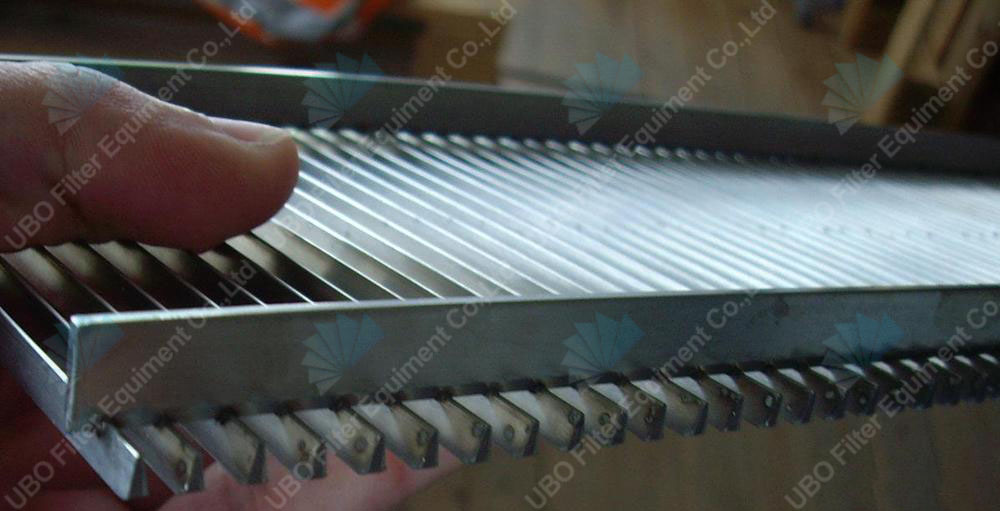

Wire wrap V shape stainless steel water well screen

Specifications of Wire Wrap V Shape Stainless Steel Water Well Screen:

Wire wrap V shape stainless steel water well screenWire wrap V shape stainless steel water well screen


Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of Wire Wrap V Shape Stainless Steel Water Well Screen:

Wire wrap V shape stainless steel water well screen
