Welded Bridge Slot Well Screen Pipe for Deep Wells Drilling
Category: | Wedge Wire Application |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | wedge wire pipe |
Application: | water, oil, and gas wells, and for environmental well completions |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

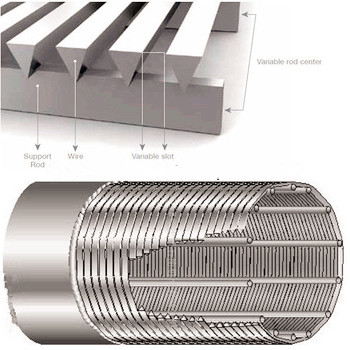

Details of Welded Bridge Slot Well Screen Pipe for Deep Wells Drilling
stainless steel water well screen whose manufacturing standards are the most stringent in the industry, are extremely durable and have high resistance to abrasion, corrosion and impact damage. high mechanical strength, can bear large pressure drop
Usages for Welded Bridge Slot Well Screen Pipe for Deep Wells Drilling:
The wedge wire water well screen is used throughout the world for water, oil, and gas wells, and for environmental well completions. It is the dominant screen type used in the water well industry.
Features for Welded Bridge Slot Well Screen Pipe for Deep Wells Drilling:
1) Filter pipe with high porosity is more efficient for the construction of water, oil and gas wells.
2) Filter pipe with low operating costs and high porosity is more conducive to groundwater infiltration, and plenty of deep water make the water level drop reduced, thereby reducing energy consumption.
3) Reducing pump wear, under the same conditions, the high porosity makes groundwater infiltration rate in the filter pipe penetration rate more slowly compared to other filtration apparatus, thus avoiding the sand enter the filter pipe in the larger pressure,reducing pump wear.
4) To extend the life of the well, relatively speaking, a high groundwater infiltration drainage pipe filter pores easier, low flow rate, extending the life of the well.
Specifications of Welded Bridge Slot Well Screen Pipe for Deep Wells Drilling:
Outside Diameter
|
Profile
wire
|
Rod
wire
|
Rod
quantity
|
Slot
size
|
Length
|
||
DN
|
Inch
|
mm
|
mm
|
mm
|
|
mm
|
mm
|
20
|
3/4
|
26.9
|
1.5*2
|
2*3
|
12
|
0.1~0.25
|
45~3000
|
25
|
1
|
33.7
|
1.5*2
|
2*3
|
14
|
0.1~0.25
|
45~3000
|
32
|
1~1/4
|
42.4
|
1.5*2
|
2*3
|
16
|
0.1~0.25
|
45~3000
|
40
|
1~1/2
|
48.3
|
1.5*2
|
2*3
|
16
|
0.1~0.25
|
45~3000
|
50
|
2
|
60.3
|
1.5*2
|
2*3
|
18
|
0.1~0.5
|
45~3000
|
65
|
2~2/2
|
76.1
|
1.5*2
|
2*3
|
20
|
0.1~0.5
|
45~3000
|
80
|
3
|
88.9
|
1.8*2.5
|
2*3
|
24
|
0.1~0.5
|
45~3000
|
100
|
4
|
114.3
|
1.8*2.5
|
2*3
|
30
|
0.5~2
|
1000~6000
|
125
|
5
|
139.7
|
2.3*2.7
|
2*3
|
36
|
0.5~2
|
1000~6000
|
150
|
6
|
168.3
|
2.3*2.7
|
3*5
|
44
|
0.5~2
|
1000~6000
|
200
|
8
|
219.1
|
3.3*4.5
|
3*4.7
|
56
|
0.5~2
|
1000~6000
|
250
|
10
|
273
|
3.3*4.5
|
4*6
|
66
|
0.5~2
|
1000~6000
|
300
|
12
|
323.9
|
3.3*4.7
|
4*6
|
72
|
0.5~2
|
1000~6000
|
350
|
14
|
355.6
|
3.7*5
|
4*6
|
80
|
0.5~2
|
1000~6000
|
400
|
16
|
406.4
|
1.5*2
|
2*3
|
94
|
0.1~2
|
1000~6000
|
450
|
18
|
457
|
2*3
|
4*5
|
112
|
0.1~2
|
500~400
|
500
|
20
|
508
|
2*3
|
4*5
|
124
|
0.1~2
|
500~400
|
550
|
22
|
559
|
2*3
|
4*5
|
140
|
0.1~2
|
500~400
|
600
|
24
|
610
|
2*3
|
4*5
|
156
|
0.1~2
|
500~400
|
Siot:0.1mm~2mm Tolerance:0.05
|
Packaging and Transportation of Welded Bridge Slot Well Screen Pipe for Deep Wells Drilling:
Package of Wedge Wire Screen Pipes: With a plastic film winding and then packed in wooden cases, boxes lined with waterproof material.
