Weld wedge wire curve screen plate for filtration

More Views

Weld wedge wire curve screen plate for filtrationWeld wedge wire curve screen plate for filtrationWeld wedge wire curve screen plate for filtration

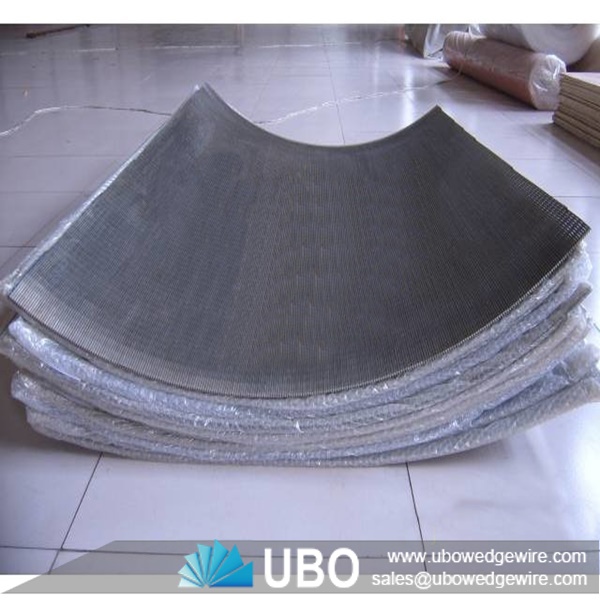

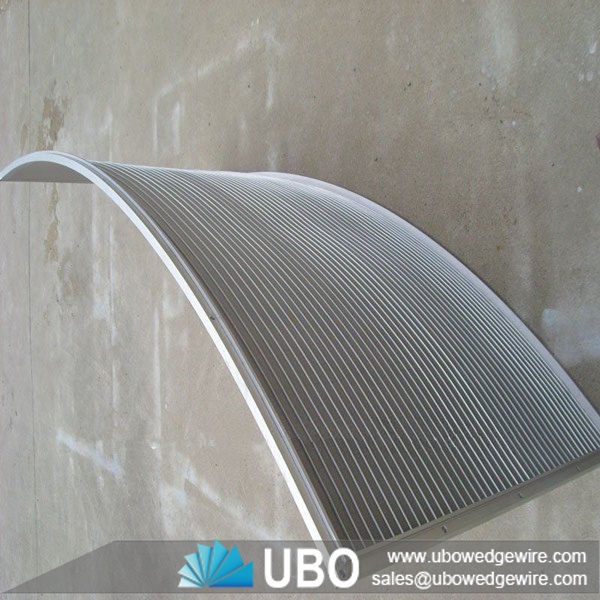

Weld wedge wire curve screen plate for filtration

Category:Wedge Wire Application
Material:stainless steel 302,304,304L,316,316L
Properties:wedge wire screen
Application:water treatment ,oilfield,mining,water well,food,industry,filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Weld wedge wire curve screen plate for filtration

Weld wedge wire curve screen plate, also called wedge wire sieve bend screens, arch sieves screen, UBO factory manufactured with stainless steel surface profiles and support profiles. The surface profile are welded onto support profiles at each intersection in a 90 degree.

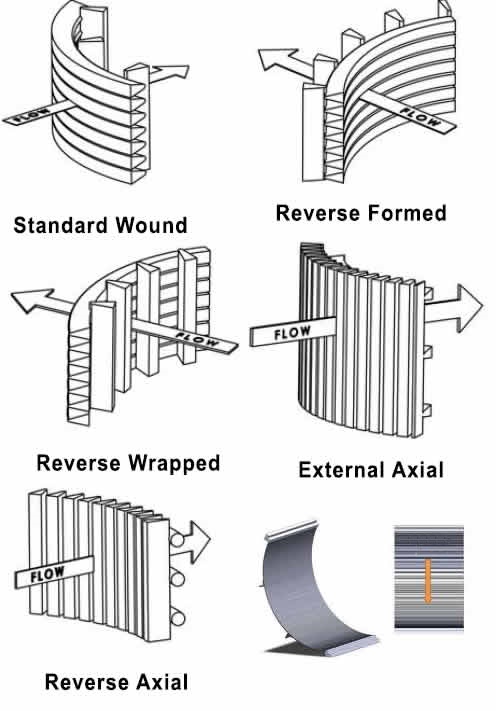

Weld wedge wire curve screen plates are composed of surface profile and support profile. The surface profile is commonly triangle wire, and the support profile can be triangle wire, wedge wire, round bar and rectangular bar. They can suit different machines and can be used in various applications.

Features of Weld wedge wire curve screen plate for filtration

-- Low Headroom - only 1.1 metres (44") tall for the 900 mm arc length unit.

-- Energy Efficient - operates with no moving parts and with no energy input.

-- Space Efficient - treats up to 122 litres per second per square metre of floor space.

-- Quiet Operation - no moving parts means no mechanical or electrical vibrations.

-- Accurate Sizing - can be used for sizing solid particles down to 0.2 mm (0.008").

-- Low Maintenance - the profile wire screen resists clogging by near-size particles, and the all-stainless steel construction ensures a long, corrosion-free installation.

-- Easy Screen Replacement - a typical screen can be replaced in 10 minutes with no tools.

Application of Weld wedge wire curve screen plate for filtration

They are used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc. Sieve bend screens are also used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load. Widely used for fiber removal in Starch industry.

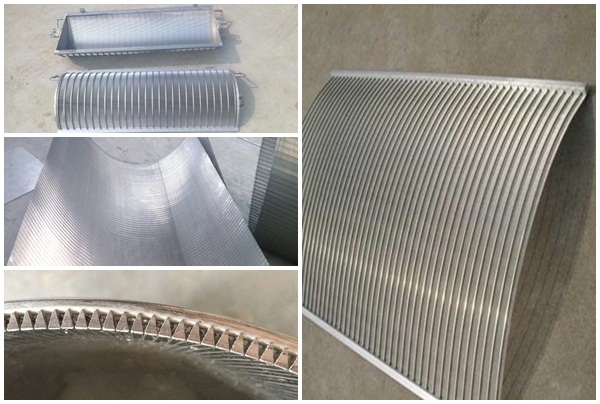

        Weld wedge wire curve screen plate for filtration

Specifications of Weld wedge wire curve screen plate for filtration:

Material: stainless steel

Type: wedge wire curve screen

Slot: 0.02,0.05,0.1,0.2,0.5mm....

Length: max 6 meters

Width: max 4meters



Profile Wire Width Relief Angle Typical Support Rod
1/16”  (.063”) 13 degrees Small round rod
3/32”  (.093”) 13 degrees Round or Rectangular bar
1/8” (.125”) 13 or 5 degrees Round or Rectangular bar

Weld wedge wire curve screen plate for filtration

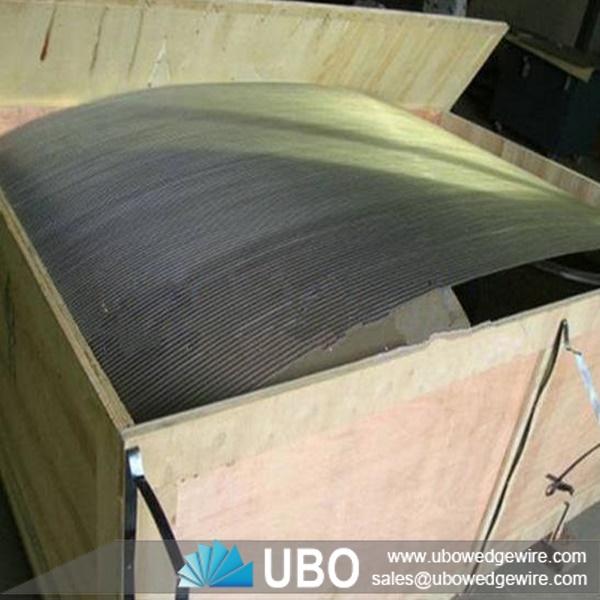

Packaging and Transportation of Weld wedge wire curve screen plate for filtration:

packing and transportation
