Wedge wire flat screen panel for liquid filtration

More Views

Wedge wire flat screen panel for liquid filtrationWedge wire flat screen panel for liquid filtrationWedge wire flat screen panel for liquid filtration

Wedge wire flat screen panel for liquid filtration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge wire flat screen panel for liquid filtration

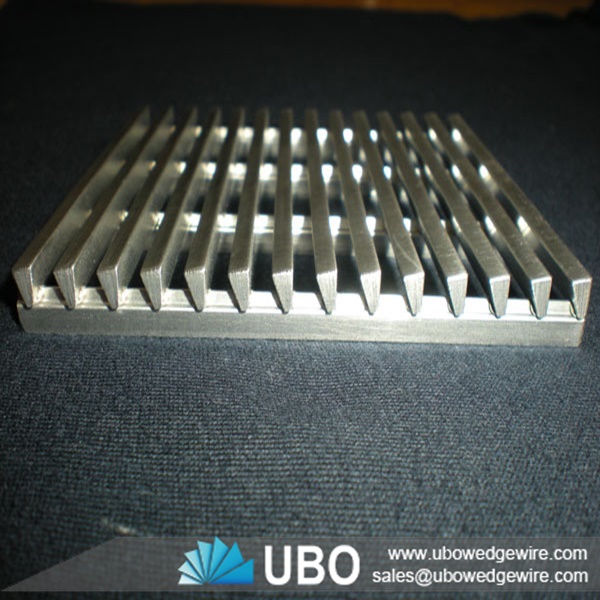

Wedge wire flat screen panels consist of a series of parallel "V-shaped" profile wire resistance welded or looped on perpendicular support rods. They are manufactured by high quality stainless & acid-proof steel with premium corrosive-resistance as well as mechanical strength. V wire screen with slot openings widening inwardly ensures the particles pass through smoothly and reduce clogging.

Precise slot opening by our experienced staff can reach 0.03 mm. This micron-rated spacing provides attractive solution for filtering, sizing, dewatering, collecting and separating solids from liquids.

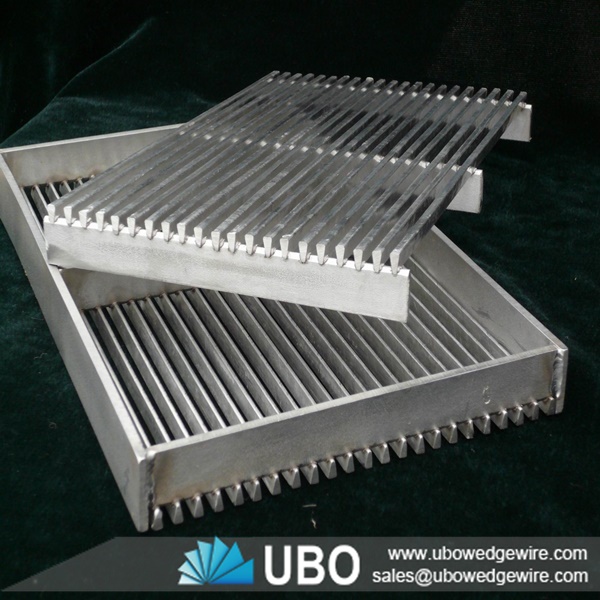

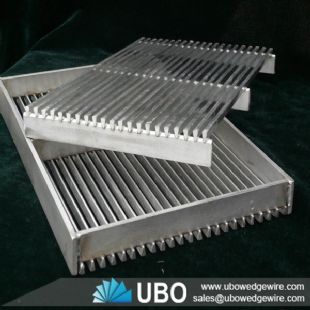

Wedge wire flat screen panels have two finishes - looped & welded. They are framed or reinforced to suit applications. The common bar includes rectangle or angle steel welded to the side of the panel.

Features of wedge wire flat screen panel for liquid filtration

-- No-clogging Structure.

-- High-precision slot space & high slot opening ration.

-- High abrasion and corrosion resistance.

-- Low pressure drop.

-- Mechanical strength construction.

-- Bespoke specification for specific machines & uses.

-- Diverse apertures & profiles supplied.

-- Self-cleaning effect.

-- Smooth & flat surface.

Applications of wedge wire flat screen panel for liquid filtration

Wedge wire flat panel screen Used in a wide range of applications in the field of process engineering such as ground water exploration, crude oil and natural gas production and vessel internals solving problems of liquid / solid and solid / gas separation.

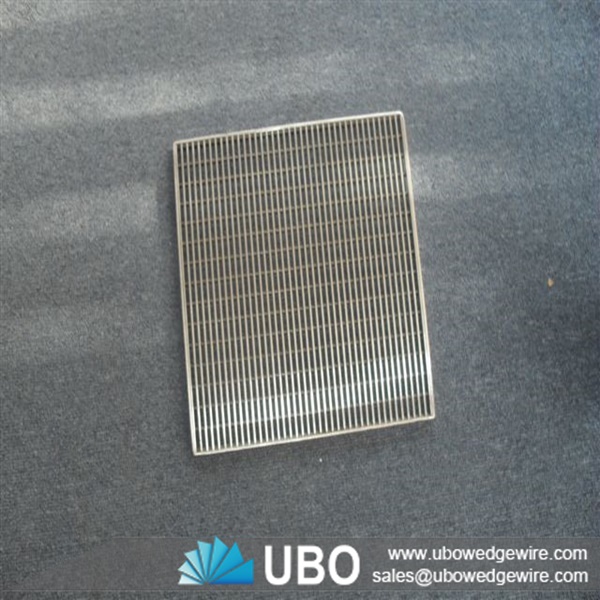

Wedge wire flat screen panel for liquid filtration

Specifications of Wedge wire flat screen panel for liquid filtration:

Material:stainless steel

Type:screen panel

Application:Liquid filter,water,oil, oilfield, mining, food industry, chemical industry etc.

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Width

from 25mm to 1200mm.

Radian

15

End connection

Plain beveled ends, flanged or threaded couplings

Wedge wire flat screen panel for liquid filtration

Packaging and Transportation of Wedge wire flat screen panel for liquid filtration:

Packing: Each filter packed in a plastic bag, then in a carton, finally put the carton in the wooden case.
