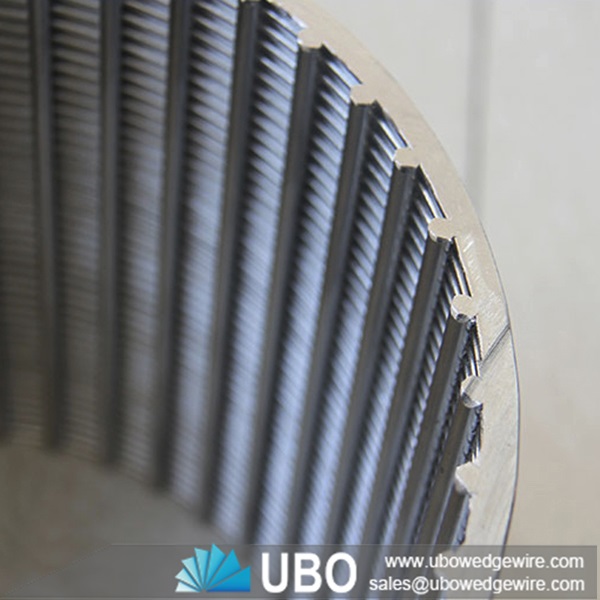

Wedge Wire sand control screen tube for seawater desalination

More Views

Wedge Wire sand control screen tube for seawater desalinationWedge Wire sand control screen tube for seawater desalinationWedge Wire sand control screen tube for seawater desalination

Wedge Wire sand control screen tube for seawater desalination

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:stainless steel wedge wire
Application:vibrating screen decking,mineral processing, surface water intake screens, fish diversion screen panels

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire sand control screen tube for seawater desalination

Welded Wedge Wire Screens are made in panel or cylinder type from V shaped profile wire, with an unique welding process, offering great strength, precision, long service life and a wide range of applications in the field of process, engineering such as sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation, filtration of oils, greases, paints, food products, water, fuels, liquid cooling agents, chemicals.

Application for Wedge Wire Sand Control Screen Tube for Seawater Desalination:

Applications for wedge wire screen panels include cross flow sieves, vibrating screen decking,mineral processing, surface water intake screens, fish diversion screen panels, hatchery screens, food processing, and flooring for malt kiln, germination, and grain drying.

Features for Wedge Wire Sand Control Screen Tube for Seawater Desalination:

1) Special continuous opening has greatly increased the water flow area, so offers a better contact with the aquifer.

2) V-type profile of the structure to avoid clogging and ensure smooth flow.

3) Continuous long-term effective use of the pore.

4) Trapezoidal filter pipe offers a solid structure, high porosity, and accurate poring.

5) Trapezoidal wire filter pipe is easy for washing, long service life, safe, reliable, comprehensive and low cost.

Working Principle for Wedge Wire Sand Control Screen Tube for Seawater Desalination:

Cylinder wedge wire screens are available for both externally-fed (flow from outside to inside) and internally feed applications. Externally-fed cylinders can be manufactured without requiring a weld seam up to about 36” OD, larger diameters must be fabricated. Internally-fed cylinders are fabricated to customer’s requirements.

1) End view of external-fed cylinder.

2) Internally-fed fabricated rotary screen cylinder.

3) Internally-fed rotary screen cylinder.

4) Reinforced externally-fed rotary screen.

5) Externally-fed rotary screen with flanges.

6) Internally-fed rotary screen with flights.

Wedge Wire sand control screen tube for seawater desalination

Specifications of Wedge Wire sand control screen tube for seawater desalination:

Wedge Wire sand control screen tube for seawater desalination


Specification (wedge wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:
galvanized low carton (LCG), stainless steel (304,316 etc.)
Length
up to 6 meters.
Diameter
from 25mm to 1200mm.
End connection
Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of Wedge Wire sand control screen tube for seawater desalination:

Wedge Wire sand control screen tube for seawater desalination
