Wedge Wire Screen Water Filter Nozzles

More Views

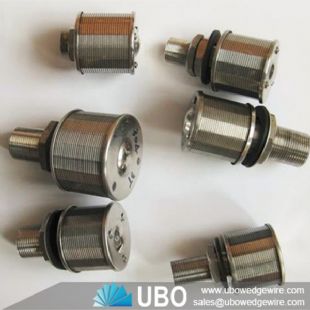

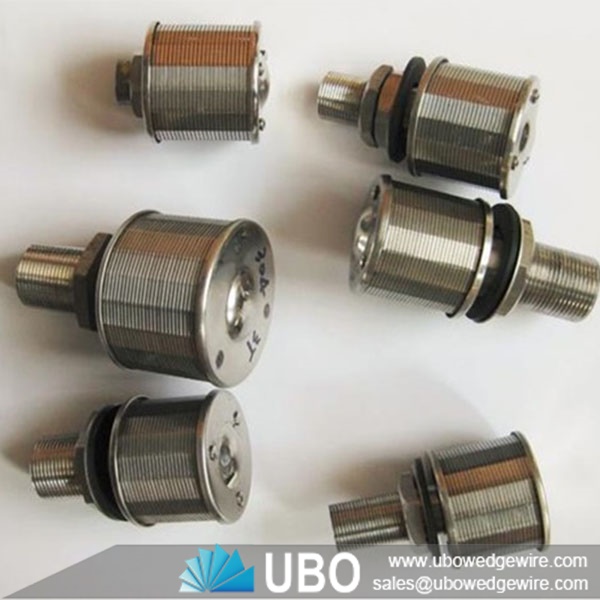

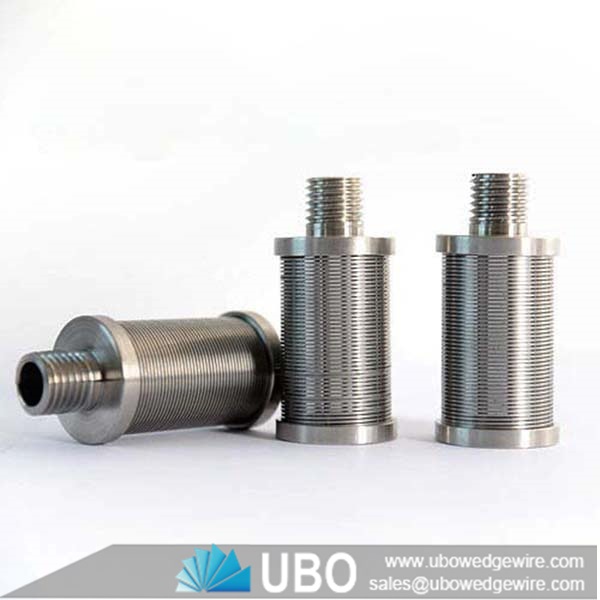

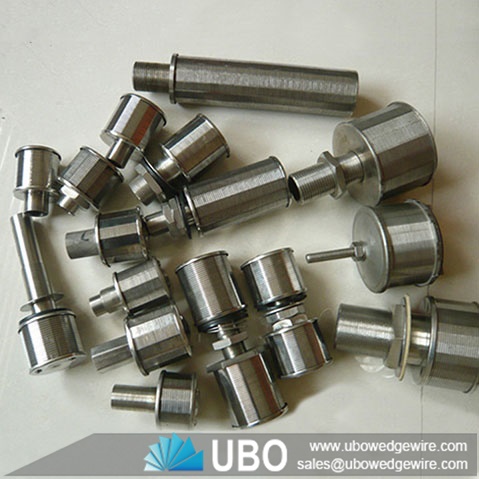

Wedge Wire Screen Water Filter NozzlesWedge Wire Screen Water Filter NozzlesWedge Wire Screen Water Filter Nozzles

Wedge Wire Screen Water Filter Nozzles

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Filter Nozzle
Application:waste water filtration, pulp and paper as well as mineral processing applications.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Screen Water Filter Nozzles

Single-tube water filter nozzles are made during simultaneous winding of specially profiled working wires on a spiral and welding them to carrying wires placed along the tube. This technology allows the production of wedge wire screens when very high gap precision and screen resistance are required. Due to using the newest welding technology we can obtain various distances between carrying wires, very accurate and repeatable gap and therefore produce screens according to customer’s particular requirements.

Usages for Wedge Wire Screen Water Filter Nozzles:

The stainless wedged screen nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

Advantages for Wedge Wire Screen Water Filter Nozzles:

1) Type 316L stainless steel construction.

2) Continuous slot design provide large circulation area

3) Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.

4) Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.

5) Wedge wire screen is highly resistant to plugging.

6) Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.

7) Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.



Specifications of Wedge Wire Screen Water Filter Nozzles:

wedge wire screen Wedge Wire screen water filter nozzle


No.

Slot

Dimension

Flow area/mm2

(Slot:0.2mm)

D

H

L

M

L1

1

0.2-0.5

45

30

180

25

According to customs request

330

2

45

40

190

25

450

3

53

40

190

30

500

4

53

50

200

30

630

5

53

40

235

32

500

6

57

40

190

32

605

7

57

50

200

32

750

Packaging and Transportation of Wedge Wire Screen Water Filter Nozzles:

wedge wire screen Wedge Wire screen water filter nozzle
