Wedge Wire Screen Filters with V Wire Screen

More Views

Wedge Wire Screen Filters with V Wire ScreenWedge Wire Screen Filters with V Wire ScreenWedge Wire Screen Filters with V Wire Screen

Wedge Wire Screen Filters with V Wire Screen

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Wedge Wire Cylinder
Application:waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an aug

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Screen Filters with V Wire Screen

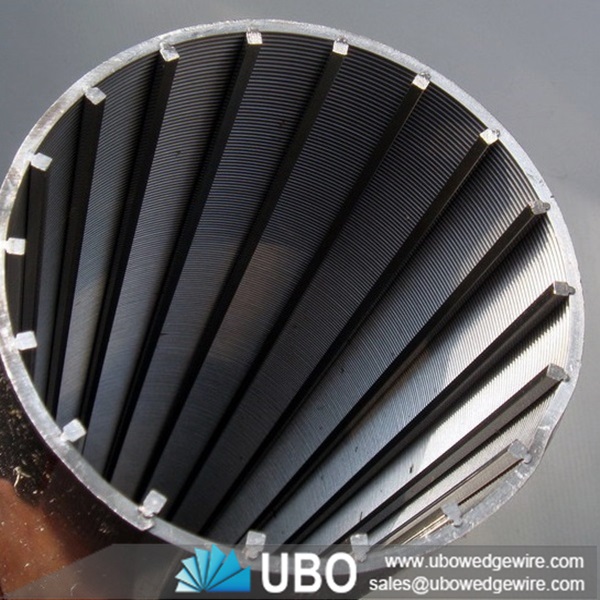

wedge wire screen for filter support cores is made by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods under automatic wire screen machine. Each profile wire and support rod is welded by resistance welding.

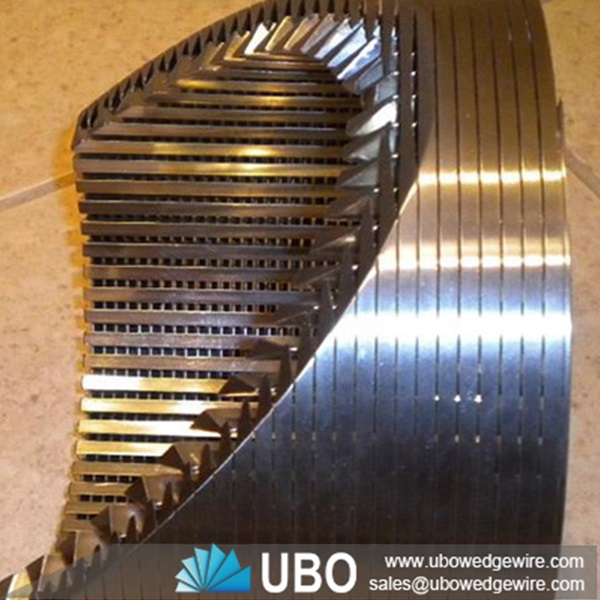

Wedge Wire Screen filters with v wire and rods

Appications for Wedge Wire Screen Pipe Filters with V Wire Screen:

The stainless steel Wedge Wire water well screen pipe is used throughout the world for water, oil, and gas wells, and for environmental well completions. It is the dominant screen type used in the water well industry.

Features for Wedge Wire Screen Pipe Filters with V Wire Screen:

1) Continuous opening has greatly increased the water flow area, so offers a better contact with the aquifer.
2) V-type profile of the structure to avoid clogging and ensure smooth flow.
3) Continuous long-term effective use of the pore.
4) Trapezoidal filter pipe offers a solid structure, high porosity, and accurate poring.
5) Trapezoidal wire filter pipe is easy for washing, long service life, safe, reliable, comprehensive and low cost.

Construction for Wedge Wire Screen Pipe Filters with V Wire Screen:

1) We use wedge-shaped profile wire in order to make the slot v-shaped. It can stop the impurities very well.

2) The wedge wire was welded on the support wire well-proportioned and have perfect roundness. Ensure the screen have bigger filter area and non obstructive, avoid the high concentration of impurities.

3) After work for a period of time, the filter can be back flush.It can use for many times

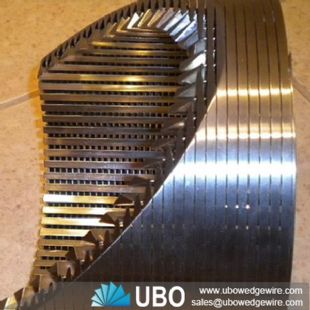

Wedge Wire Screen filters with v wire and rods

Specifications of Wedge Wire Screen Filters with V Wire Screen:

Wedge Wire Screen filters with v wire and rods

size

inner diameter

outer diameter

in
mm
in
mm
in
mm
2
51
2
51

25/8

67

3
76
3
76

35/8

92
4
102
4
102

45/8

117
5
127
5
127

55/8

143
6
152
6
152

65/8

168
8
203
8
203

85/8

219
10
254
10
254

103/4

273
12
305
10
305

123/4

324

Packaging and Transportation of Wedge Wire Screen Filters with V Wire Screen:

Package: in wood case

Delivery Time: 5-25 days
