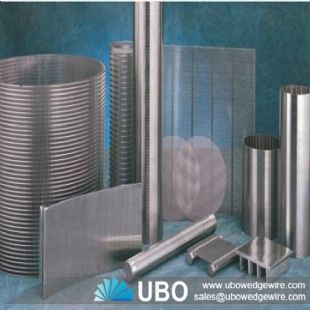

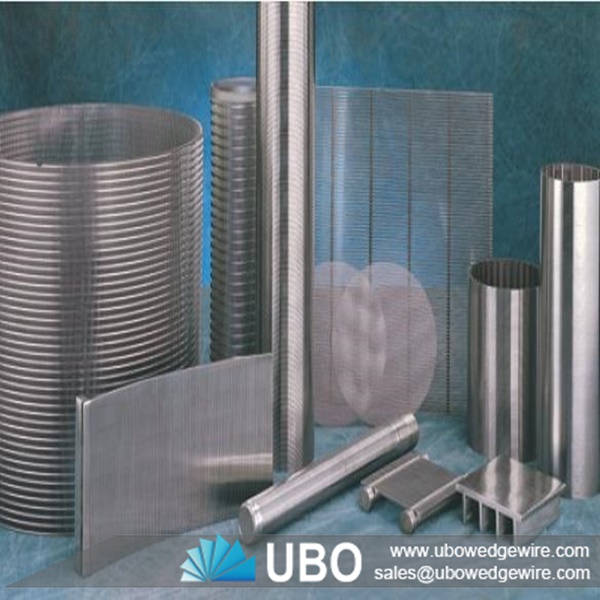

Wedge Wire Filter Element for FiltrationWedge Wire Filter Element for FiltrationWedge Wire Filter Element for Filtration

Wedge Wire Filter Element for Filtration

Category:Wedge Wire Application
Material:stainless steel
Properties:wedge wire screen
Application:water filtration,oil filtration,industry filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Filter Element for Filtration

UBO wedge wire filter elements are used as sieves and filters for various industries, especially suitable for low maintenance applications. It is a new type filter component fabricated from Fine Mesh Slot Opening Stainless Steel Wedge Wire Panels. Atlas filter elements can be re-used repeatedly. The precise filter ratings are from 30 to 80 microns. Available in the form of tubes, panels, filter cylinders and bags and special filter elements. It is made by welding with profile wire on every connection spots.

The Stainless Steel material and its special welding structure bring excellent filtration property.

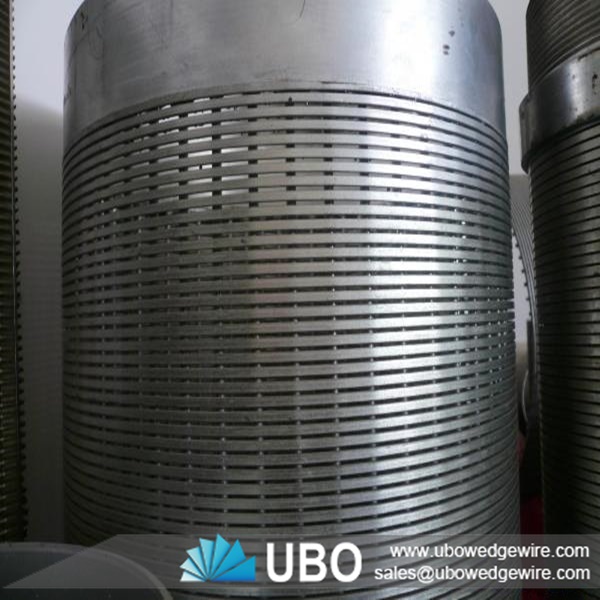

wedge wire wire filter element for filtration

Advantages of Wedge Wire Filter Element for Filtration

-- Good strength;

-- High rigidity;

-- Good resistance to abrasion and corrosion;

-- Uniform gap;

-- Flat panel surface;

-- Good in filtration and fluidity;

-- Easy to clean and back wash;

-- Long work time.

Application of Wedge Wire Filter Element for Filtration

The filter elements are used in sieving of petroleum, chemical industry, pharmaceutics, food and beverage, metallurgy and coal, also can be used in filtration of water treatment. Wedge wire elements are the most popular mining screen due to its strength.

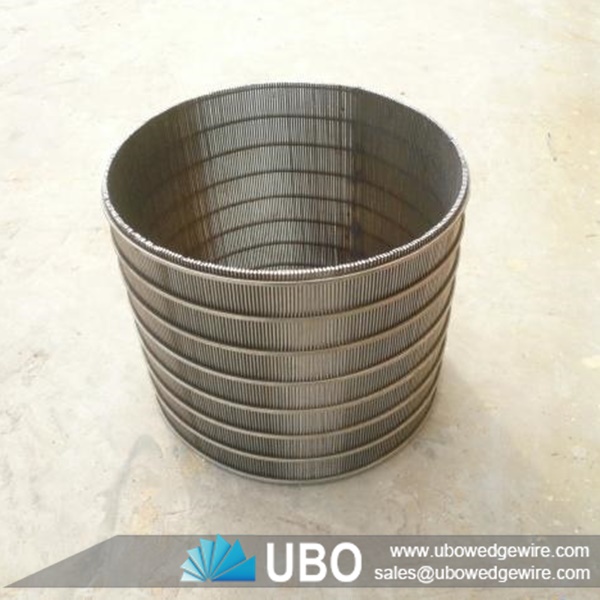

wedge wire wire filter element for filtration

Specifications of Wedge Wire Filter Element for Filtration:

Type: screen pipe

Filter Rating: more than 90%

End connection: thread, weld, flang etc

Surface Treatment: Galvanized

Technique: welded

Coating: Galvanized/Polishing



Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm

Note: other specifications available as request

Slot size:

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length:

up to 6 meters

Diameter:

from 25mm to 1200mm.

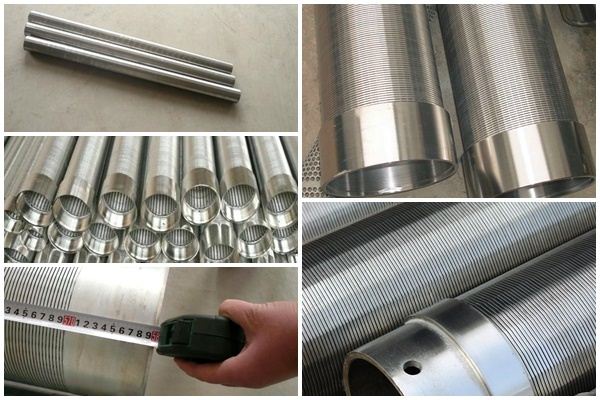

screen pipe
