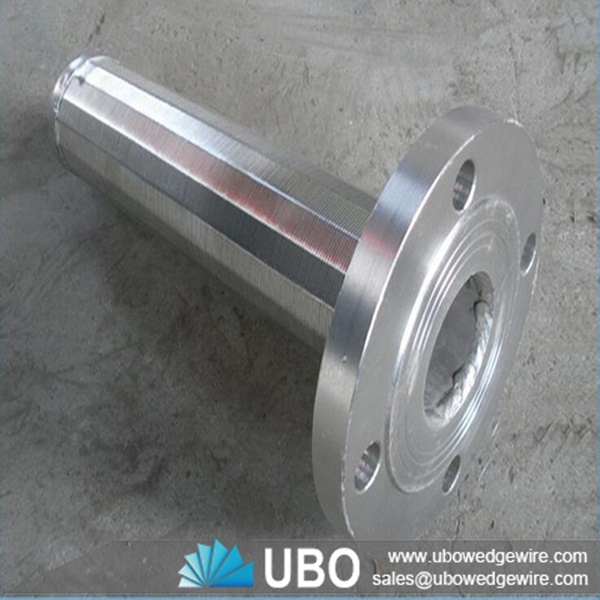

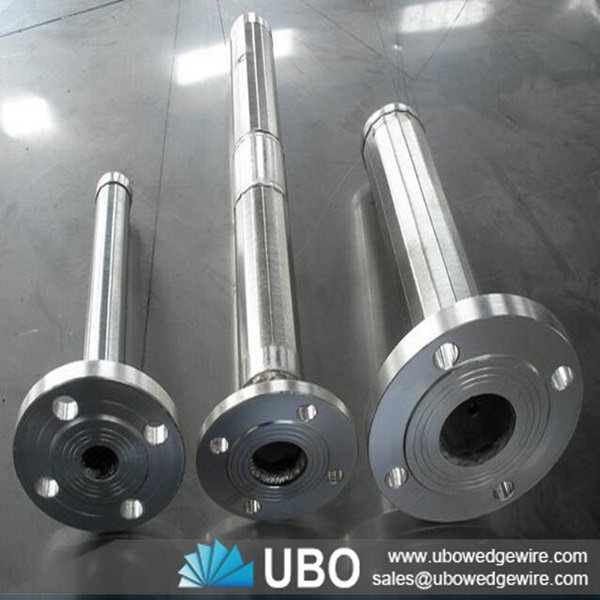

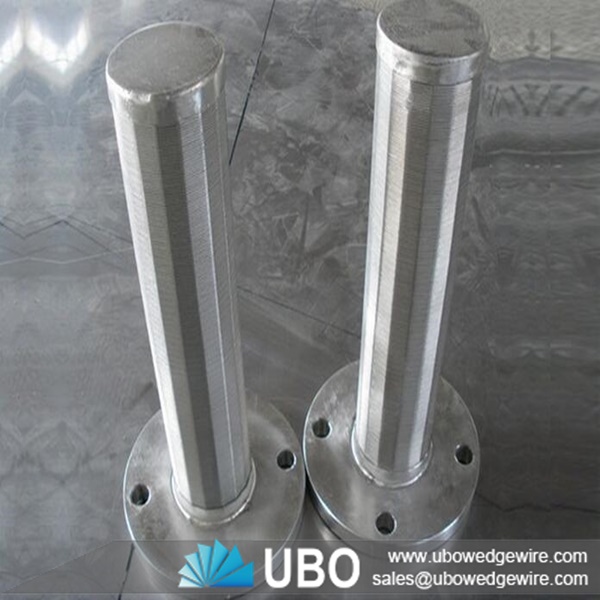

Wedge Wire Candle Filter Screen
| Category: | Wedge Wire Application |
|---|---|
| Material: | stainless steel 302,304,304L,316,316L |
| Properties: | wedge wire screen |
| Application: | water treatment ,oilfield,mining,water well,food,industry,filtration |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Wedge Wire Candle Filter Screen
Wedge wire candle filter screens are prevention devices on water treatment system lines to insure against complete loss of media in the event of a failure.The wedge wire candle filter screen is used on service outlet and backwash lines on ion exchange units, high purity water systems, and activated carbon and media filters. The wedge wire candle filter screen is activated by escaping media at the onset of a failure, and the media that collects in the resin trap blocks water flow and extensive loss of media.
Features of Wedge Wire Candle Filter Screen:
-- Reduced costs, since wedge wire screens have a very long life.
-- Greater resistance to stresses of different pressure and temperature.
-- Maximum effective flow area & operating efficiency is maintained.
-- Costly downtime for cleaning plugged screens is minimize.
Application of Wedge Wire Candle Filter Screen:
-- Food & Beverage Screens
-- Mineral & Aggregate Processing
-- OEM Screen Components
-- Pulp & Paper Screens
-- Refining & Petrochemical
-- Water Process & Fluid Treatment
-- Water/oil Well
Specifications of Wedge Wire Candle Filter Screen:
|
Specification (wedge wire):
|
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
|
|
Specification (support rod):
|
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
|
|
Note: other specifications available as per request
|
|
|
Slot Size
|
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
|
|
Material:
|
galvanized low carton (LCG), stainless steel (304,316 etc.)
|
|
Length
|
up to 6 meters.
|
|
Diameter
|
from 25mm to 1200mm.
|
|
End Connection
|
Plain beveled ends, flanged or threaded couplings
|
Packaging and Transportation of Wedge Wire Candle Filter Screen:
Package: in wood case
Delivery Time: 5-25 days
