Water well profile wire wrapped screen

More Views

Water well profile wire wrapped screenWater well profile wire wrapped screenWater well profile wire wrapped screen

Water well profile wire wrapped screen

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Wedge Wire Pipe
Application:the water-treating equipment;the environment protection; the sea water transforms into the industrial water and life use water desalination treatment

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Water well profile wire wrapped screen

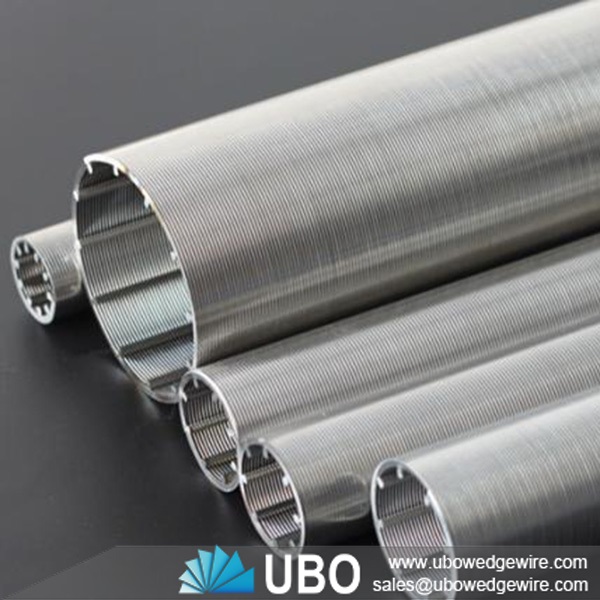

   Stainless steel 304 Continuous v-shaped slot screen for water well. These wells were typically completed in relatively shallow, thin aquifers that were very prolific in terms of water production. Continuous wire wrap screen are very effective in wells of this type since they can be manufactured with very small slot size and yet still maintain the necessary open area to minimize friction head loss.

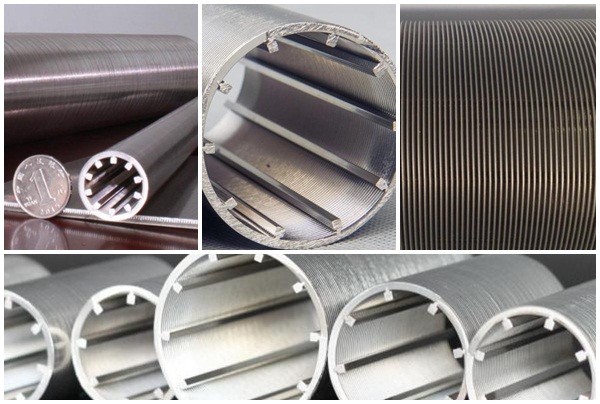

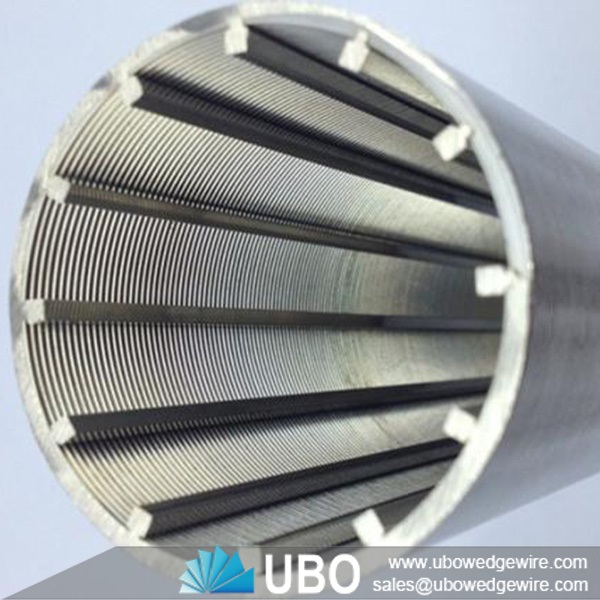

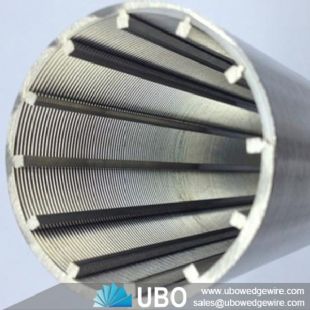

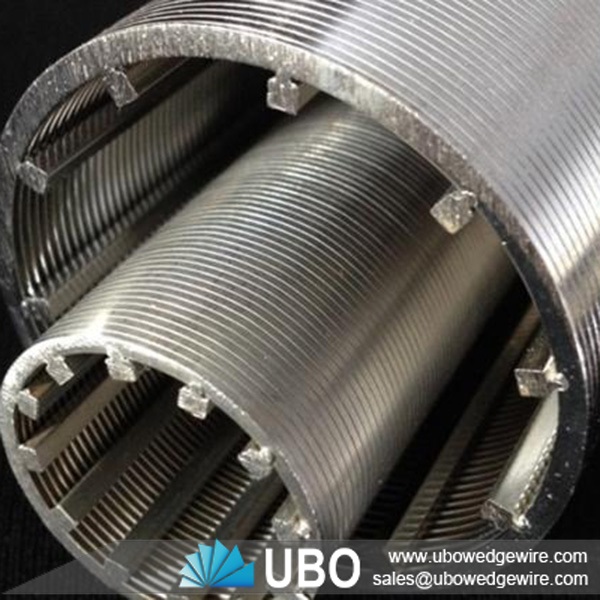

    Continuous wire wrap screen is manufactured by wrapping a shaped wire around an internal array of longitudinal rods and are joined by resistance welding. Screen sections are usually twenty feet long. Most continuous wire wrap screen is manufactured from stainless steel rather than carbon steel in order to avoid problems which often lead to accelerated corrosion.

Water well profile wire wrapped screen

Application for Water well profile wire wrapped screen:

The screen is a kind of filtered water tubing with the perforation. It can be used with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, Water softening treatment, the petroleum industry: The petroleum product terminal, filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.

Advantage foe Water well profile wire wrapped screen:

Non clogging:"V" shaped profile wire, avoids clogging, is self-cleaning and ensures an uninterrupted flow. Sand grains make only two point contact and do not wedge in the screen's inwardly enlarging slot.
Large open area: This allows more water to enter at much lesser frictional head loss and the efficiency of well is improved appreciably.
High Strength: It takes stainless steel as main raw material, then is welded at high temperature, which guarantee high strength to bear big water pressure, hereby it has long life span.

Features for Water well profile wire wrapped screen:

1.reliable sand control
2.very accurate slot openings and pore sizes
3.slot and pore size validation
4.resistance against plugging
5.increased production rates
6.superior mechanical strength
7.corrosion and erosion resistance

Water well profile wire wrapped screen

Specifications of Water well profile wire wrapped screen:

Water well profile wire wrapped screen



Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings
