Water well filter mesh screen

More Views

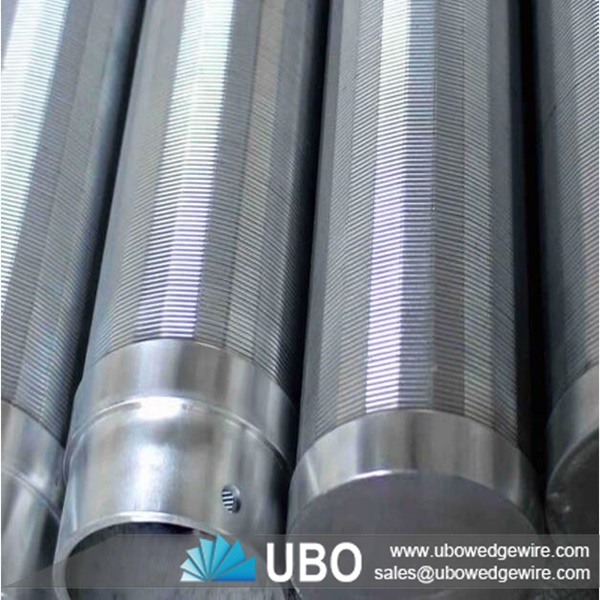

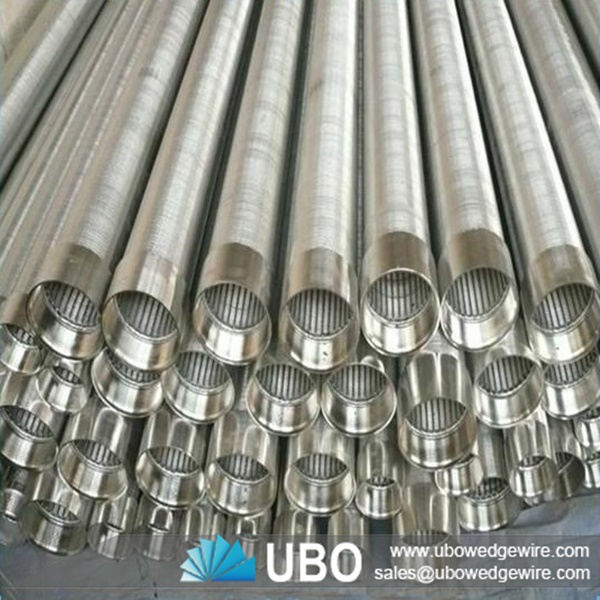

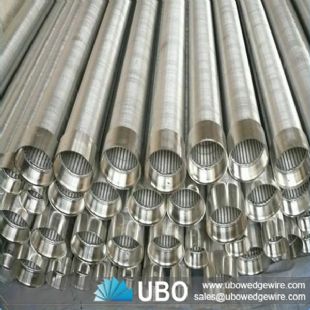

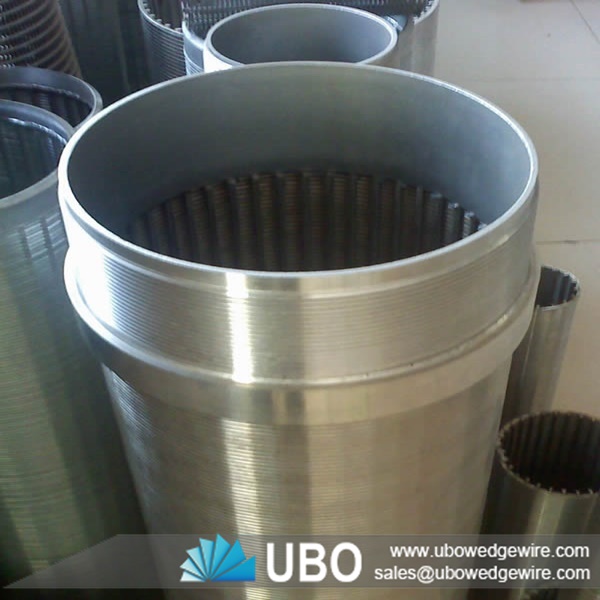

Water well filter mesh screenWater well filter mesh screenWater well filter mesh screen

Water well filter mesh screen

Category:Wedge Wire Application
Material:stainless steel
Properties:wedge wire sreen
Application:Liquid filter,water filter,industry

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Water well filter mesh screen

Water well filter mesh screen consists of wedge-shape profile wire and the longitudinal support rods. Each intersecting point of these wires is fusion welded. So water well screen has sturdy constriction and good mechanical property. The wedge-shape section plane can avoid blockage, and make sure of the unimpeded water. The consecutive slot have more open area, and water well screen can reduce the speed of the water entering to aviod the sand entering the screen under the great pressure, so wedge wire water well screen pipes can filter sand better. Meanwhile, the slot can change according to the real condition of the earth.

Advantages of Water well filter mesh screen

1) Stop sand production

2) Avoid pump damage

3) mprove well efficiency

4) Improve pumping efficiency

5) Maximize water flow rate into the well

6) Reduce well maintenance

7) Increase well life

Application of Water well filter mesh screen

Separating, Sizing; Straining, De-watering, Filtering, Drying, Water intake, Media retention.

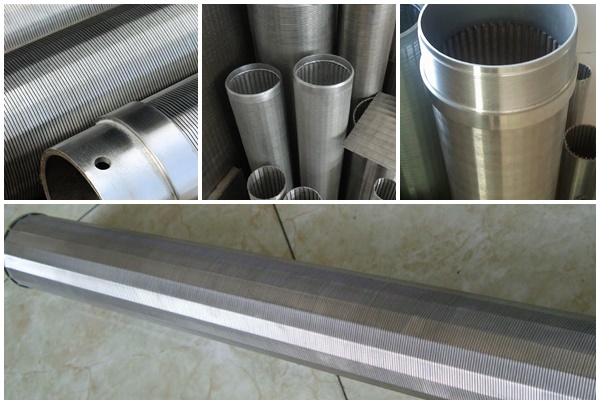

    Water well filter mesh screen

Specifications of Water well filter mesh screen:

Diameter: 1" to 26".

Slot openings: from 0.10mm up.

Lengths: max to 6 meters.

End: Welding-ring or threaded ends.

Standard designs for installation depths of 100, 200, 350 and 600 meters.

Other installation depth designs available upon request.

Water well filter mesh screen

                                                 Water well mesh screen

Material:

AISI304/316/316L,etc.

Wedge Wire (mm):

Width : 1.50 1.80 2.30 3.00 3.30 3.70



Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support Rod (mm):

Width : 2.30 3.00 3.30 3.70



Height : 2.70 3.60 4.70 5.60 6.30



Round : 2.50mm -- 6.0mm

Slot Size

0.10 -- 6.00mm ,also can be customized as your request.



Length

Max 6 meters.



Out Diameter

25mm -- 600mm.

Water well filter mesh screen

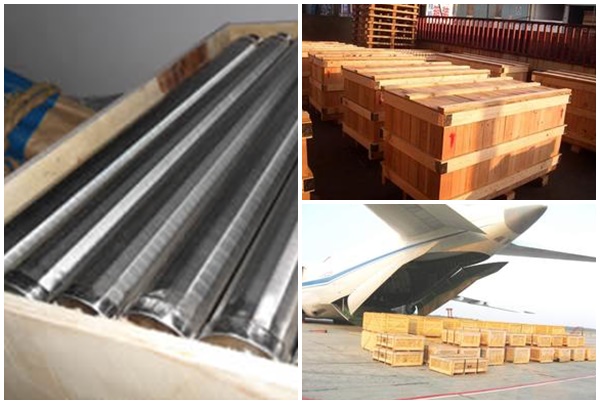

Packaging and Transportation of Water well filter mesh screen:

packing
