Trapezoidal galvanized wire wedge wire screen

More Views

Trapezoidal galvanized wire wedge wire screenTrapezoidal galvanized wire wedge wire screenTrapezoidal galvanized wire wedge wire screen

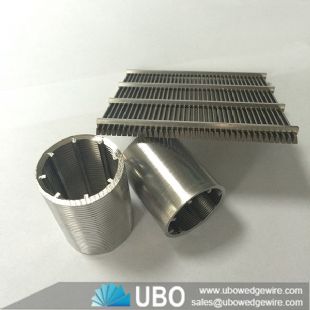

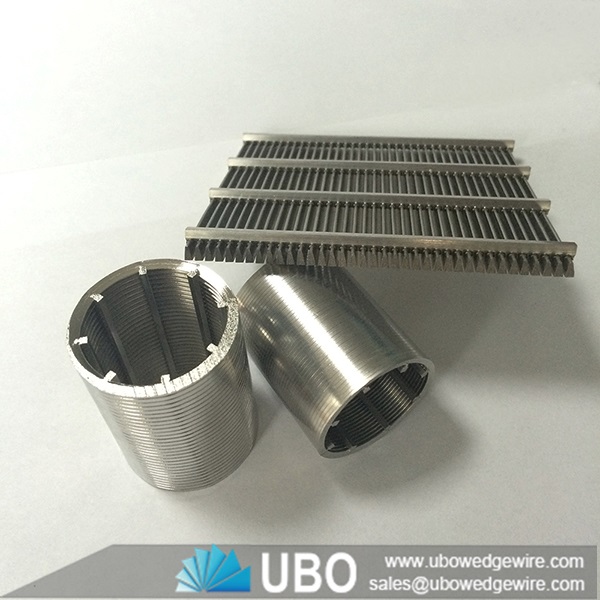

Trapezoidal galvanized wire wedge wire screen

Category:Wedge Wire Application
Material:Stainless steel 302,304,304L,316,316L
Properties:Wedge Wire Pipe
Application:mining, coal, petroleum, fertilizer, grain, salt industry, environment protection, etc

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Trapezoidal galvanized wire wedge wire screen

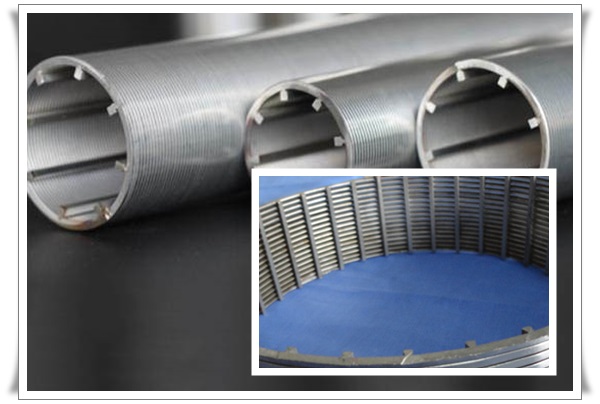

Wedge Wire v wedge wire stainless steel screen is made up of rods and warp. The rod can be round wire,triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire)

Applications for Trapezoidal galvanized wire wedge wire screen:

widely used in mining, coal, petroleum, fertilizer, grain, salt industry, environment protection, etc. Sieving liquid and powder materials. Petroleum, chemical industry, metallurgy, mining, pharmaceutical purification, drilling fluid purification, etc.

Characteristics for Trapezoidal galvanized wire wedge wire screen:

1) The welded stainless steel water well screen is made up of rods and warp.

2) The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire

Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screen have heat resistant, anti corrosive, good machine capability,last long,safety and reliability and so on characteristics

Features for Trapezoidal galvanized wire wedge wire screen:

1) Continuous opening has greatly increased the water flow area, so offers a better contact with the aquifer.

2) V-type profile of the structure to avoid clogging and ensure smooth flow.

3) Continuous long-term effective use of the pore.

4) Trapezoidal filter pipe offers a solid structure, high porosity, and accurate poring.

5) Trapezoidal wire filter pipe is easy for washing, long service life, safe, reliable, comprehensive and low cost.

Trapezoidal galvanized wire wedge wire screen

Specifications of Trapezoidal galvanized wire wedge wire screen:

Trapezoidal galvanized wire wedge wire screen

Size

(inch)

O.D

(mm)

Slot

(inch)

Collapse Strength

(Psi)

Tensile Weight

(Ton)

Wrap(thick*deep)

(mm)

Rods

(mm)

4

117

0.04

395

6

2.2*3.0

3.8mm/22

4

114.3

0.04

395

6

2.3*3.0

3.8mm/22

6

168.3

0.04

252

8

2.3*3.5

3.8mm/32

8

219.1

0.01

399

10.5

3.0*5.0

3.8mm/48

8

219.1

0.02

370

10.5

3.0*5.0

3.8mm/48

8

219.1

0.04

323

10.5

3.0*5.0

3.8mm/48

10

273.1

0.01

206

11

3.0*5.0

3.8mm/50

10

273.1

0.02

191

11

3.0*5.0

3.8mm/50

10

273.1

0.04

167

11

3.0*5.0

3.8mm/50

Packaging and Transportation of Trapezoidal galvanized wire wedge wire screen:

Trapezoidal galvanized wire wedge wire screen
