Standard & Specially Designed Intake Screens for exchange resin
Category: | Wedge Wire Application |
---|---|
Material: | SS 304,316,316L, Stainless steel and carbon steel. |
Properties: | Wedge Wire Screen |
Application: | waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an aug |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Standard & Specially Designed Intake Screens for exchange resin

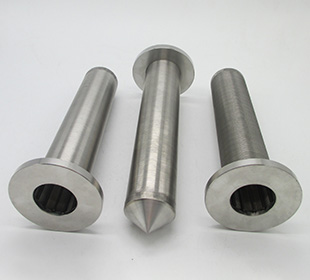

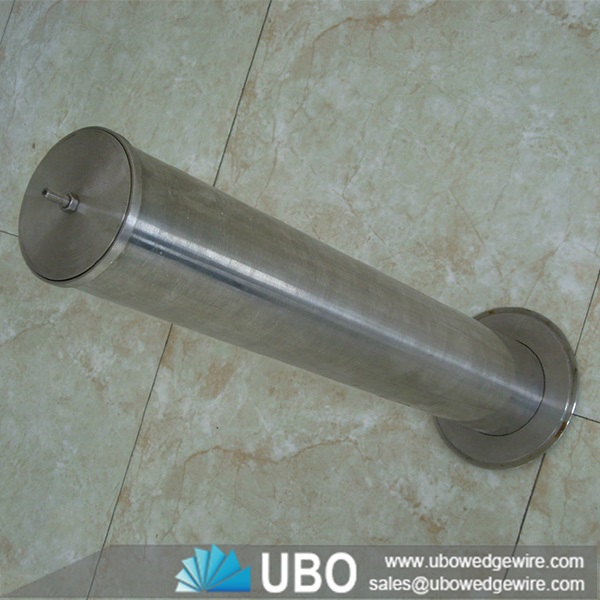

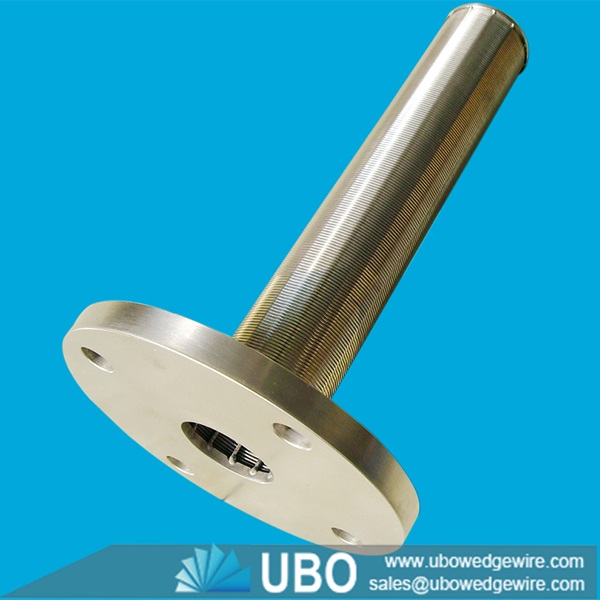

Resin traps are safety devices used on the outlet pipelines of ion exchange units, high-purity water systems and activated carbon and media filters. In many systems a valve failure can allow media to escape from the treatment vessel. Not only is the loss of this media expensive, it can easily cause damages to downstream pumping equipments. Placed inline, resin traps provide reliable protection against such damage.
Application for Customize Designed Intake Screens for exchange resin:
Resin traps are used down stream from ion exchange vessels and serve as a means of minimizing the loss of ion exchange resins. We can design the traps to capture media particles of any size. With the continuous open slot, the traps provide sufficient open area to let process flow move smoothly. All are available in a full range of construction materials with a variety of connecting flanges and housings. In vessels using hydrochloric acid for regeneration, the resin trap must be of hastelloy construction.
Features for Customize Designed Intake Screens for exchange resin:
• Reduced costs, since wedge wire screens have a very long life.
• Greater resistance to stresses of different pressure and temperature.
• Maximum effective flow area & operating efficiency is maintained.
• Costly downtime for cleaning plugged screens is minimize.
Advatanges for Customize Intake Screens for exchange resin:

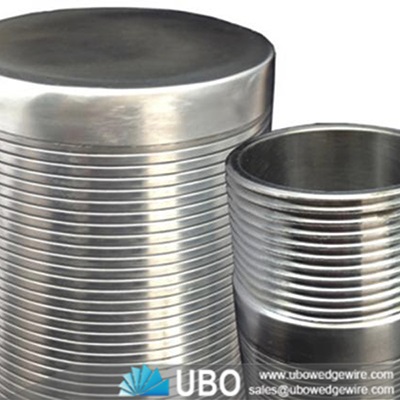

1) filter made of stainless steel trapezoidal wire, screen slot is v-shape, can effectively intercept resin impurities.

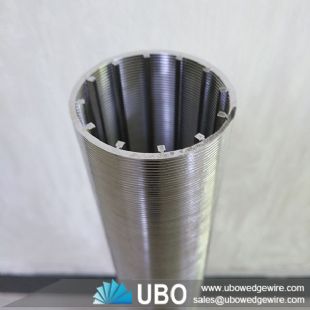

2) trapezoidal wire evenly circumferentially array on the support bar,ensure the screen filter area and non-obstructive, avoiding impurities concentrated.
3) resin trap all connected by welding, durable, long life.
4) After working for some time,can filter backwash, multiple use
Specifications of Standard & Specially Designed Intake Screens for exchange resin:
Type
|
Slots mm
|
ΦA
|
Flange DN
|
L1mm
|
AM1
|
0.05, 0.1, 0.2 0.3, 0.5, 1.0
|
45,57,76,89,108,
133, 159, 219
|
40,50,65,80,
100,125,150,
200
|
442,496,547,
600,654,705,
758,812,863,
916,970,1021,
1074,1128,1179,
1232, 1286
|
