Stainless Steel well screen filter for Deep desalting treatment

Category:Wedge Wire Application
Material:Stainless steel 302,304,304L,316,316L
Properties:Wedge Wire Screen Panel
Application:deep well pump to dive the water pump, in the water-treating equipment, the environmental protection, the sea water transforms

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel well screen filter for Deep desalting treatment

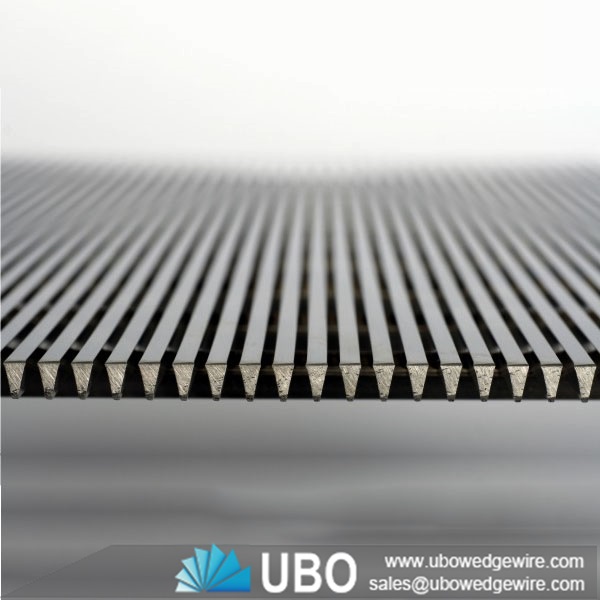

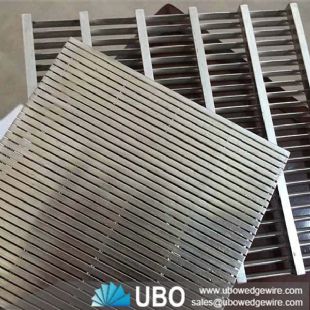

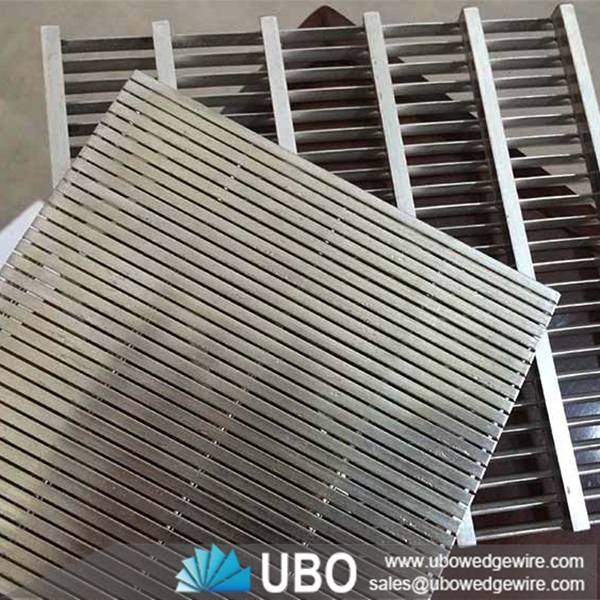

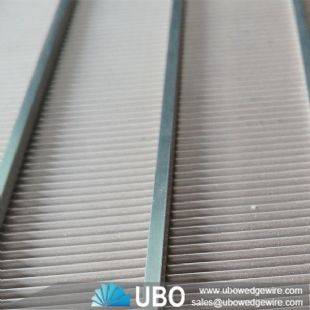

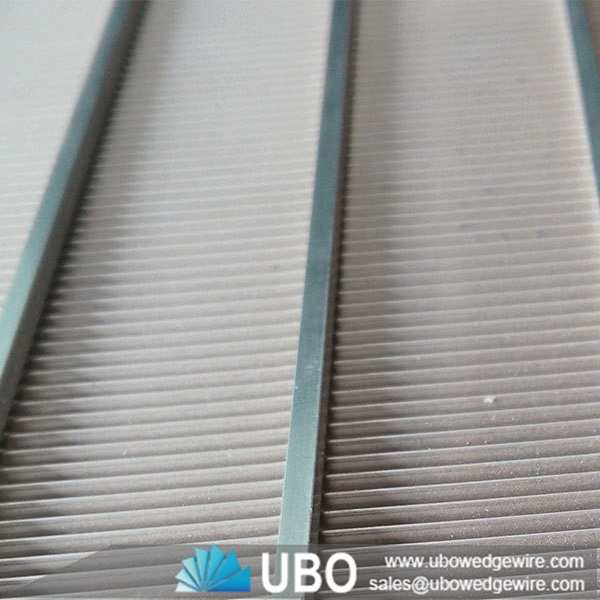

Vee-Wire dewatering screen for deep desalting treatment is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). It has a structure and high open area, as well as accurate slot dimension

Stainless Steel well screen filter for Deep desalting treatment

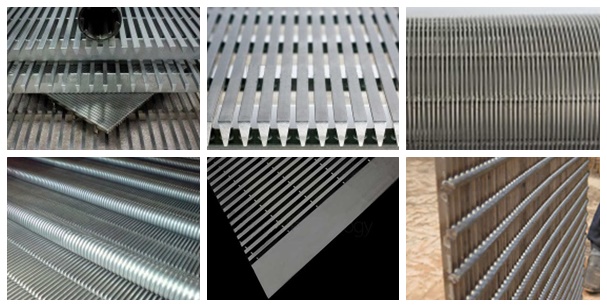

Applications for Stainless Steel Well Screen Filter for Deep Desalting Treatment:

Application in deep well pump to dive the water pump, in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment; the petroleum industry, the petroleum product terminal filters; and the chemical acid, the alkali liquid filters, the ethyl alcohol and the organic solution recycling filters.

Advantages for Stainless Steel Well Screen Filter for Deep Desalting Treatment:

-- Reduced consumption of treated water for backwashin

-- Savings in filter height and volume

-- No maintenance, repair or shutdown

-- No need for suspended filter floor

Advantages for Stainless Steel Well Screen Filter for Deep Desalting Treatment:

1) Better filter function. The V-shape section plane of water well screens(Johnson screens) creates the continuous slot, which can avoid blockage and make sure of the unimpeded water.

2) Prolong life of well. The consecutive slot of water well screens(Johnson screens) have wider open area, and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so it can control sand better, which can increase the water yield and prolong service time of the well.

3) Long service life. Wire and support rods are all-welded, which makes water well screens(Johnson screens) more robust and longer life.

4) High pressure-resistant. The longitudinal support rods and the continuous slot make the water well screens(Johnson screens) have more excellent pressure-resistant performance.

5) Customized. Specifications and end connections of water well screens(Johnson type screens) can be fabricated according to customers’ requirements.


Stainless Steel well screen filter for Deep desalting treatment

Specifications of Stainless Steel well screen filter for Deep desalting treatment:

Stainless Steel well screen filter for Deep desalting treatment

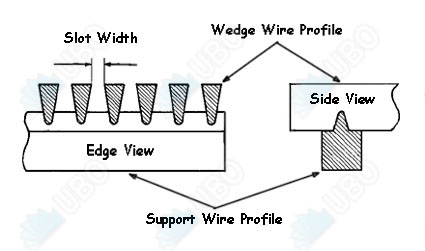

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of Stainless Steel well screen filter for Deep desalting treatment:

Stainless Steel well screen filter for Deep desalting treatment
