Stainless Steel Wire Wrapped Wedge Wire Screen
Category: | Wedge Wire Application |
---|---|
Material: | SS 304,316,316L, Stainless steel and carbon steel. |
Properties: | wedge wire screen |
Application: | water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

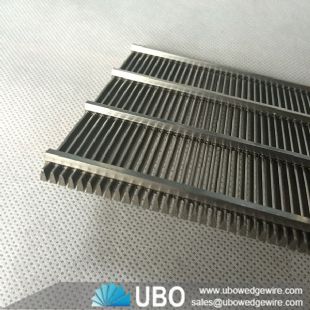

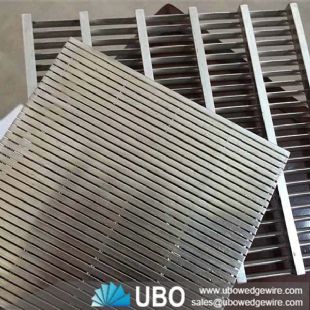

Details of Stainless Steel Wire Wrapped Wedge Wire Screen
Wedge Wire offers an efficient and economic solution for the passing of liquids, air and fine particles, providing absolute confidence in the consistent recovery of suspended materials. It’s non-blinding and self cleaning characteristics are governed by the tapered profiled wires and leading edges that break down the surface tension to create high volume throughputs.
Applications for Stainless Steel Wire Wrapped Wedge Wire Screen:
Wedge Wire Applications include The Food and Beverage Industries, Water Treatment and Water Clarification, Mining & Quarrying (Minerals and Aggregates), Chemical, Petrochemical & Pharmaceutical and other Industrial Applications.
Features for Stainless Steel Wire Wrapped Wedge Wire Screen:
These high performance Wedge Wire screens, offering a vast percentage of open area with the resilience to withstand arduous conditions are manufactured with a continuous Slot Gap at stringent tolerances in a range of Stainless and Low Carbon Steel Profiles.
Advantages for Stainless Steel Wire Wrapped Wedge Wire Screen:
-- A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.

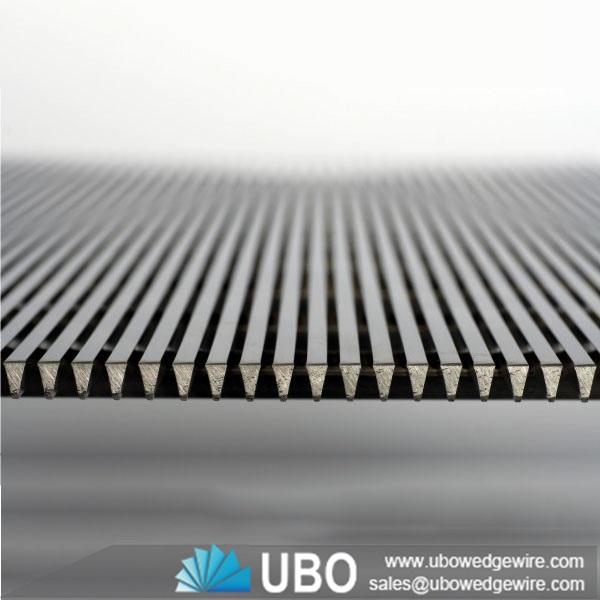

-- A 'V' shaped wedge wire which avoids clogging and ensures uninterrupted flow.
-- A uniform and efficient well development due to the continuous slot opening.
-- Offering great strength. precision, long service life.
Specifications of Stainless Steel Wire Wrapped Wedge Wire Screen:
Surface Profile |
W
|
H
|
Material |
10S |
0.75
|
1.425
|
S304,S316L Hastelloy, Monel alloy of nickel and titanium, and other stainless steel |
11SL |
10.75
|
1.8
|
|
22S |
1.8
|
3.7
|
|
4S |
0.45
|
1.2
|
|
50SL |
3.4
|
7.5
|
Surface Profile
|
W
|
H
|
Material
|
Q22
|
2
|
2.28
|
S304,S316L Hastelloy, Monel alloy of nickel and titanium, and other stainless steel |
Q35
|
3
|
5
|
|
Q53
|
4
|
3
|
|
D56
|
4
|
5.6
|
|
D45
|
3.8
|
6.0
|
Packaging and Transportation of Stainless Steel Wire Wrapped Wedge Wire Screen:
