Stainless Steel Wedge Wire Screen Strainer Pipe for Drying

More Views

Stainless Steel Wedge Wire Screen Strainer Pipe for DryingStainless Steel Wedge Wire Screen Strainer Pipe for DryingStainless Steel Wedge Wire Screen Strainer Pipe for Drying

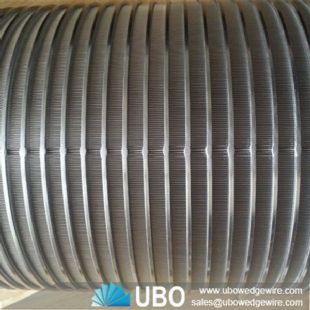

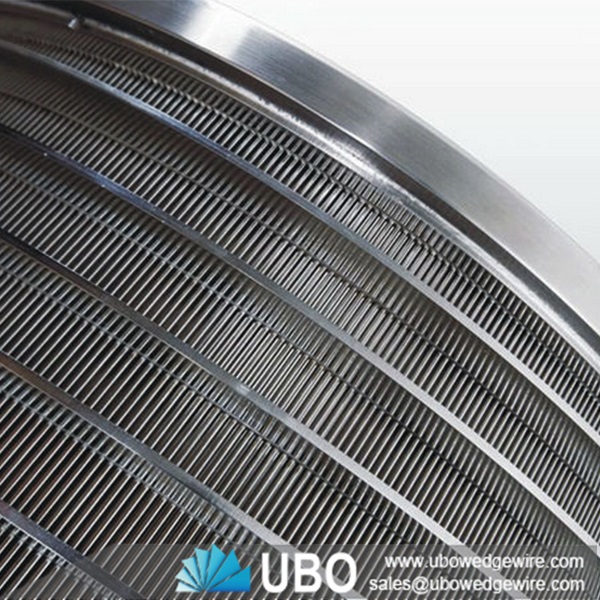

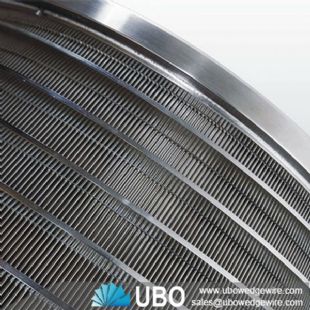

Stainless Steel Wedge Wire Screen Strainer Pipe for Drying

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel Wedge Wire Screen Strainer Pipe for Drying

Food damaged intake screens consist of V-shape profile wire and the longitudinal support rods. each intersecting point of these wires is fusion welded. So Wedge Wire screen pipe has sturdy constriction and good mechanical property. The V-shape section plane can avoid blockage, and make sure of the unimpeded water. The continuous slot have more open area, and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so water well screen pipe can filter sand better. Meanwhile ,the slot size can be changed according to the real condition of the earth.



Application for Stainless Steel Wedge Wire Screen Strainer Pipe for Drying:



With solid structure, high temperature resistance, corrosion resistance, good mechanical performance, long service life, safe and reliable, etc.Wedge wire screen pipes can be used in many kinds of medium filtering. high filtering accuracy, high strength and durability



Advantages for Stainless Steel Wedge Wire Screen Strainer Pipe for Drying:


A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone. A “V”shaped profile wire which avoids clogging and ensures an uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.

Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.

Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.



Features for Stainless Steel Wedge Wire Screen Strainer Pipe for Drying:



The welded stainless steel water well screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

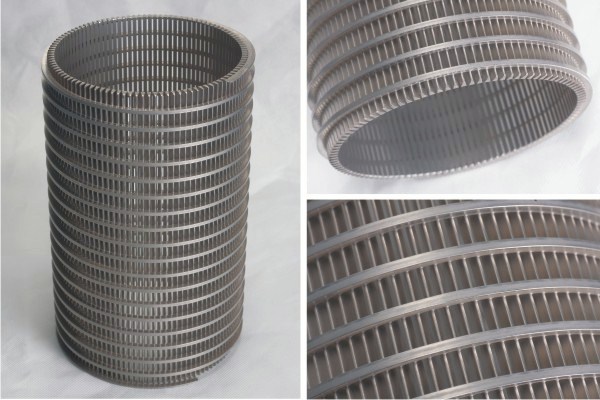

Stainless steel 316 wedge wire screen strainer pipe for drying

Specifications of Stainless Steel Wedge Wire Screen Strainer Pipe for Drying:

Stainless steel 316 wedge wire screen strainer pipe for drying


Outside Diameter
Profile Wire
Rod Wire
Rod Quantity
Slot Size
Length
DN
Inch
mm
mm
mm

mm
mm
20
3/4
26.9
1.5*2
2*3
12
0.1~0.25

45~3000

25
1
33.7
1.5*2
2*3
14
0.1~0.25

45~3000

32
1-1/4
42.4
1.5*2
2*3
16
0.1~0.25

45~3000

40
1-1/2
48.3
1.5*2
2*3
16
0.1~0.25

45~3000

50
2
60.3
1.5*2
2*3
18
0.1~0.5

45~3000

65
2-1/23
76.1
1.5*2
2*3
20
0.1~0.5

45~3000

80
3
88.9
1.8*2.5
2*3
24
0.1~0.5

1000~6000

100
4
114.3
1.8*2.5
2*3
30
0.5~2

1000~6000

125
5
139.7
2.3*2.7
2*3
36
0.5~2

1000~6000

150
6
168.3
2.3*2.7
3*5
44
0.5~2

1000~6000

200
8
219.1
3.3*3.5
3*4.7
56
0.5~2

1000~6000

250
10
273
3.3*3.5
4*6
66
0.5~2

1000~6000

300
12
323.9
3.3*4.7
4*6
72
0.5~2

1000~6000

350
14
355.6
3.7*5
4*6
80
0.5~2

1000~6000

400
16
406.4
1.5*2
2*3
94
0.1*2

1000~6000

450
18
457
2*3
4*5
112
0.1*2

500~400

500
20
508
2*3
4*5
124
0.1*2

500~400

550
22
559
2*3
4*5
140
0.1*2

500~400

600
24
610
2*3
4*5
156
0.1*2

500~400

Siot:0.1mm~2mm    Tolerance:0.05

Packaging and Transportation of Stainless Steel Wedge Wire Screen Strainer Pipe for Drying:

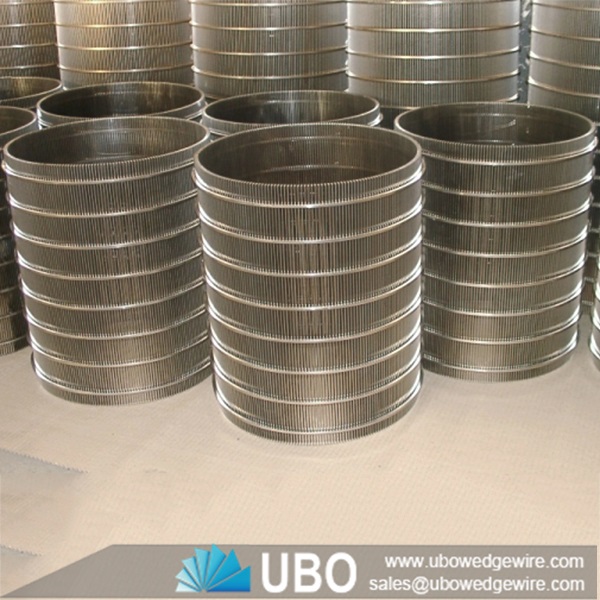

Stainless steel 316 wedge wire screen strainer pipe for drying
