Stainless Steel V-shaped Profile Wedge Wire Pipe

More Views

Stainless Steel V-shaped Profile Wedge Wire PipeStainless Steel V-shaped Profile Wedge Wire PipeStainless Steel V-shaped Profile Wedge Wire Pipe

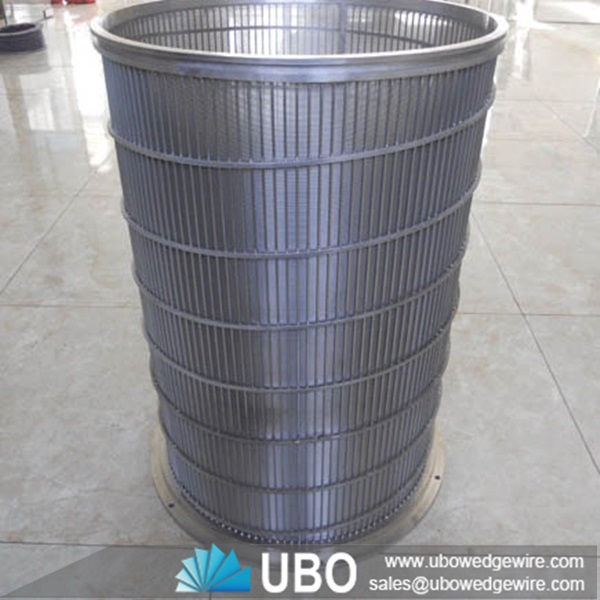

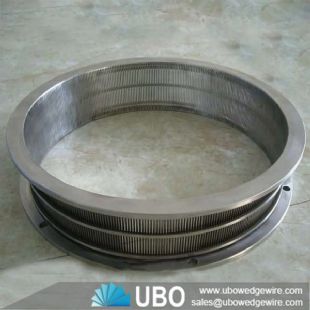

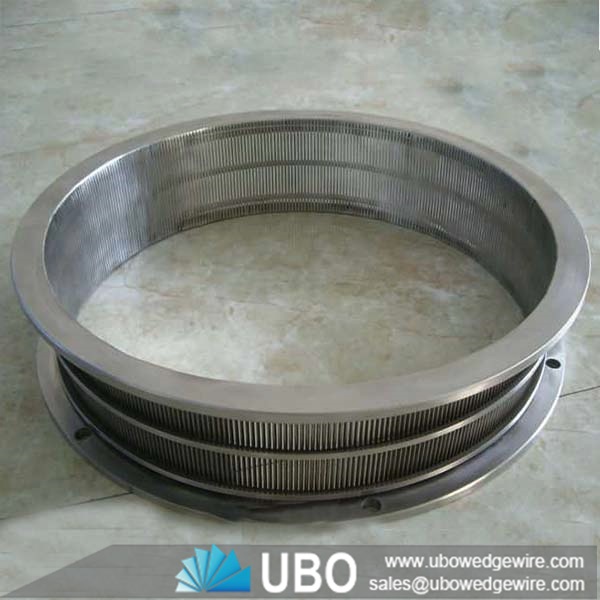

Stainless Steel V-shaped Profile Wedge Wire Pipe

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Wedge wire screen cylinders
Application:the water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel V-shaped Profile Wedge Wire Pipe

Wedge wire screen is consist of V-shape profile wire and the longitudinal support rods. Each intersecting point of these wires is fusion welded, so Water Well Screens has sturdy constriction and good mechanical property. The V-shape section plane can avoid blockage and make sure of the unimpeded water.

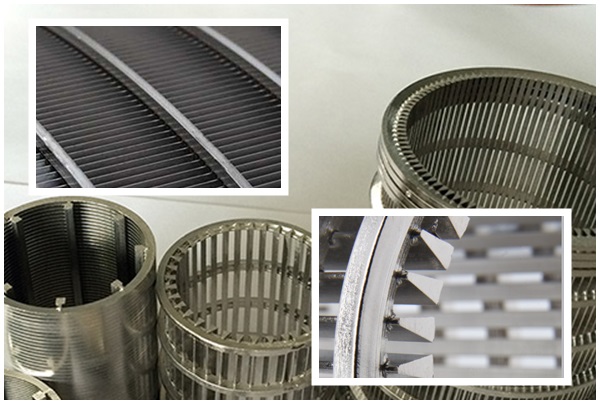

stainless steel V-shaped profile Wedge Wire Pipe


Application for Stainless Steel V-shaped Profile Wedge Wire Pipe:

water well sand screen are mainly used for the water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant ,sewage treatment and other industries,water, oil or gas filter and other filtration equipment.

Advantage for Stainless Steel V-shaped Profile Wedge Wire Pipe:

1) A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.

2) A “V”shaped profile wire which avoids clogging and ensures an uninterrupted flow.

3) A uniform and efficient well development due to the continuous slot opening.

4) Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.

5) Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

Features for Stainless Steel V-shaped Profile Wedge Wire Pipe:

Welded stainless steel wire wrapped pipe screen is made up of rods and profile wire. The rod can be round wire, triangular wire or trapezoid wire. The profile wire is triangular wire (V-shaped wire). This type of pipe screen has a structure and high open area, as well as accurate slot dimension. At the same time, stainless steel pipe screen has heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

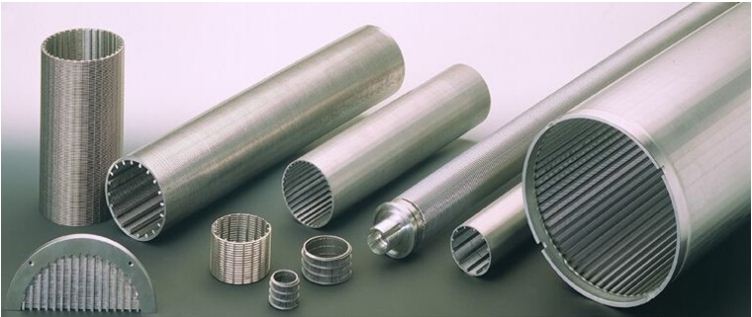

stainless steel V-shaped profile Wedge Wire Pipe

Specifications of Stainless Steel V-shaped Profile Wedge Wire Pipe:

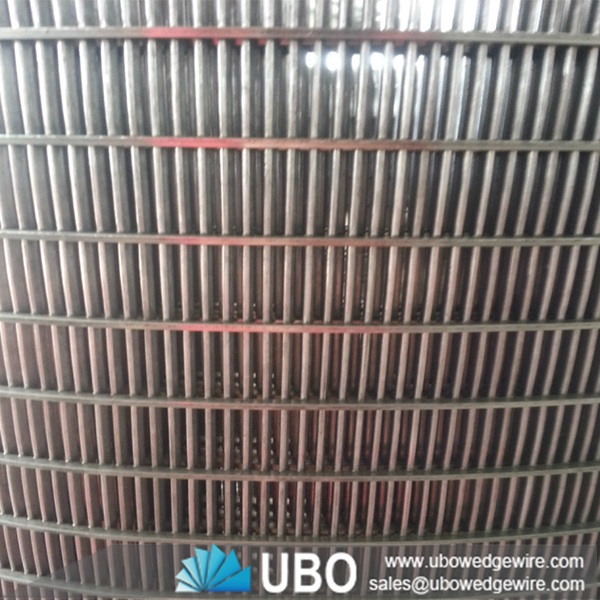

stainless steel V-shaped profile Wedge Wire Pipe  stainless steel V-shaped profile Wedge Wire Pipe



1) OD(outside diameter):usually 6-5/8" 7" 8-5/8" 9-5/8" 10-3/4" 12" 12-3/4" by our customers' requirements.

2) Material:carbon steel or stainless steel(201,304,304L,316, 316L)

3) Slot size:given by customers. We can do 0.05-2mm.

4) Open area:a maximum open area of 60% is offered facilitating high flow capacity and low inlet resistance resulting in extended well life.

5) Wire and rod dimensions:obtained through well depth, or collapse strength and tensile strength, which are furnished by customers.

6) Connection types:usually STC threads or a passage of welded ring ( plainend or beveled end), both of them are welded together with the portion of screen.

Packaging and Transportation of Stainless Steel V-shaped Profile Wedge Wire Pipe:

stainless steel V-shaped profile Wedge Wire Pipe
