Quality Wedge Wire Screen Manufacturer in China

Stainless Steel V Wire Welded Sieve Bend Screen

More Views

Stainless Steel V Wire Welded Sieve Bend ScreenStainless Steel V Wire Welded Sieve Bend ScreenStainless Steel V Wire Welded Sieve Bend Screen

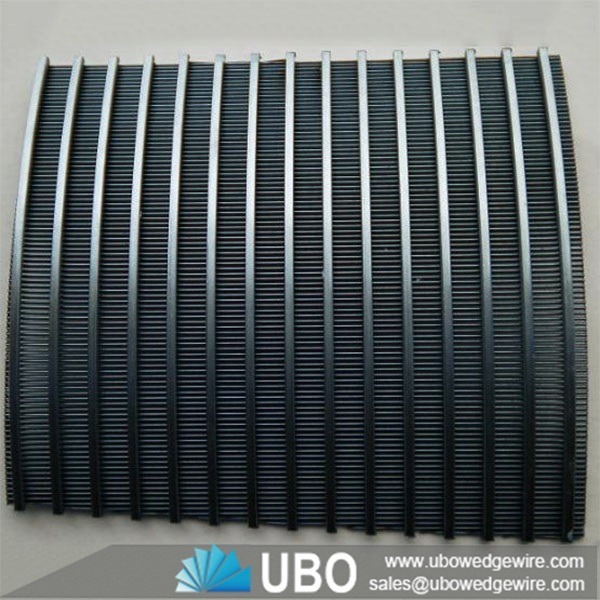

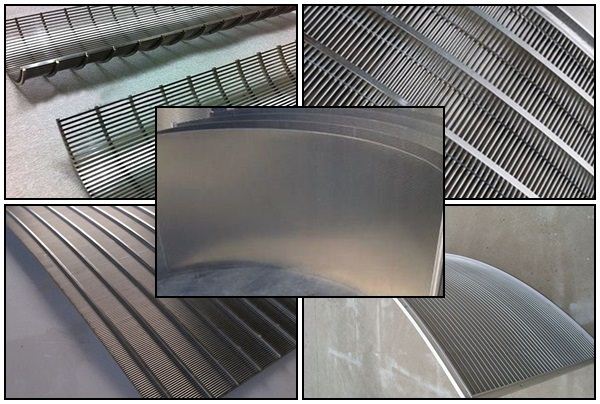

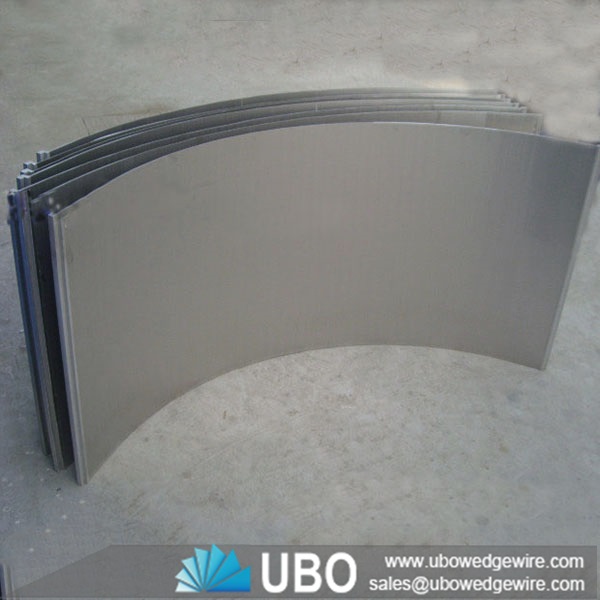

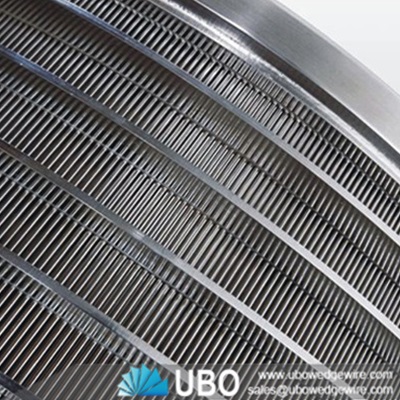

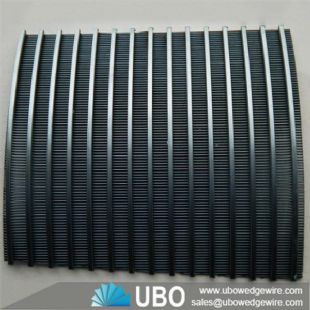

Stainless Steel V Wire Welded Sieve Bend Screen

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:stainless steel sieve bend
Application:industry,water-treatment equipment,the environment protection,the running water treatment,water softening treatment

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel V Wire Welded Sieve Bend Screen

Stainless steel slot screen is the wedge wire screen in panel type. The panels offer a perfectly flat and smooth surface with rectangular openings. They are made from V shaped profile wire, with an unique welding process, offering great strength, precision, long service life

Features for Stainless Steel V Wire Welded Sieve Bend Screen

-- Reduced costs, since wedge wire screens have a very long life.

-- Greater resistance to stresses of different pressure and temperature.

-- Maximum effective flow area & operating efficiency is maintained.

-- Costly downtime for cleaning plugged screens is minimize.

Applications for Stainless Steel V Wire Welded Sieve Bend Screen

Arc Wedge wire screen can be used in the starch industry,water-treatment equipment,the environment protection,the running water treatment,water softening treatment,the liquid filters and so on the organic solution recycling filters.

Advantages for Stainless Steel V Wire Welded Sieve Bend Screen

A continuous slot opening which significantly increase the available open area, thus providing greater access to the water bearing zone.
A “V” shaped profile wire which avoids clogging and ensures an uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.
Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

stainless steel sieve bend wedge wire screen mesh v-wire welding mesh

Specifications of Stainless Steel V Wire Welded Sieve Bend Screen:

stainless steel sieve bend wedge wire screen mesh v-wire welding mesh



Screen Size
ID
OD
Female thread dismeter
in
mm
in
mm
in
mm
in
mm
2
51
2
51
25/8
67
23/4
70
3
76
3
76
35/8
92
33/4
95
4
102
4
102
45/8
117
43/4
121
5
127
5
127
55/8
143
53/4
146
6
152
6
152
65/8
168
7
178
8
203
8
203
85/8
219
91/4
235
10
254
10
254
103/4
273
113/8
289
12
305
12
305
123/4
324
133/8
340
14
356
13 1/8
333
14
356
-
-
16
406
15
381
16
406
-
-
20
508
18 3/5
476
20
508
-
-

Packaging and Transportation of Stainless Steel V Wire Welded Sieve Bend Screen:

stainless steel sieve bend wedge wire screen mesh v-wire welding mesh
