Quality Wedge Wire Screen Manufacturer in China

Stainless Steel Curved Sieve Bend Screen for Filtration

More Views

Stainless Steel Curved Sieve Bend Screen for FiltrationStainless Steel Curved Sieve Bend Screen for FiltrationStainless Steel Curved Sieve Bend Screen for Filtration

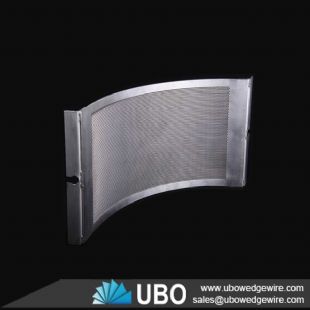

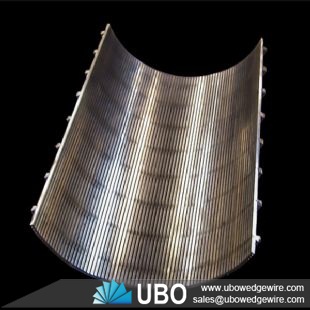

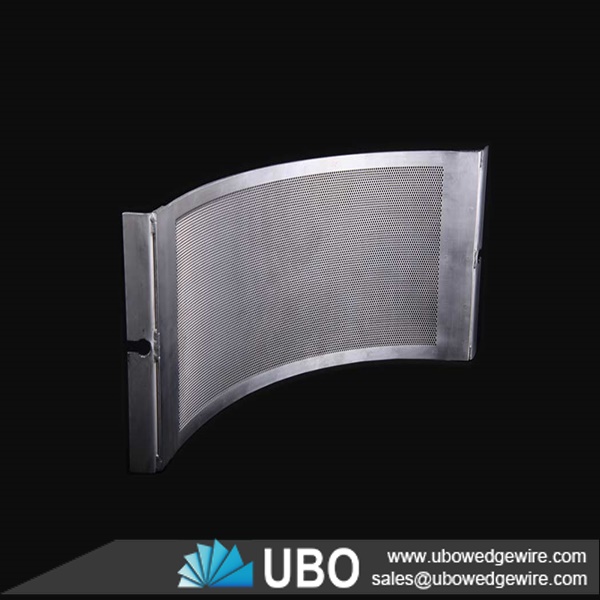

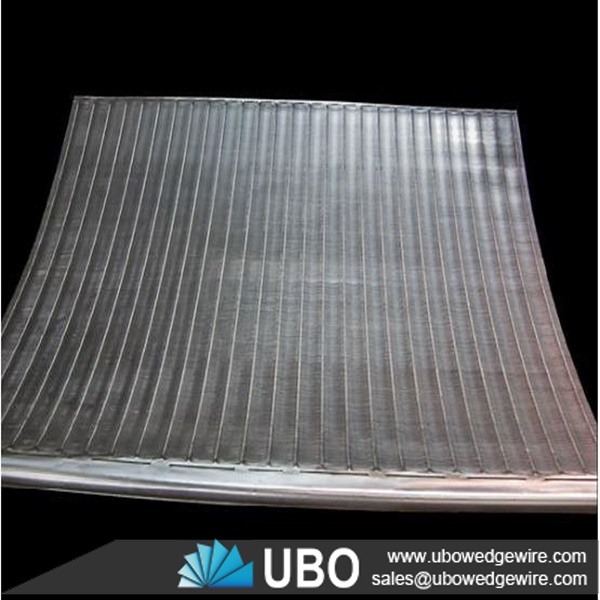

Stainless Steel Curved Sieve Bend Screen for Filtration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel Curved Sieve Bend Screen for Filtration

UBO is specialized in producing various filtration products, includes stainless steel basket, wedge wire screen pipe, wedge wire screen panel, wedge wire screen tube, sieve bend screen,etc. The gravity curved sieve is very popular in American market.

The gravity curved sieve bend screen is a screen out device of new,efficient and static. The sieve surface is the key component of the pressure sieve. The gravity sieve are used for starch industry in corn dehydration, germ dehydration and washing, the separation of coarse and fine slag.

Features of Stainless Steel Curved Sieve Bend Screen for Filtration

1) The gravity sieve has high yield and good screening effect

2) The gravity bent sieve is very safety,no caulking and long service life.

3) The gravity curved sieve has reasonable structure and no moving parts.

4) The gravity sieve has beautiful appearance and small area

5) The gravity sieve has easy operation,strong adaptability and stable process.

6) The mechanical center of gravity is low, the balance is good, the rotational speed is reasonable, the mechanical performance is stable and reliable.

Usages of Stainless Steel Curved Sieve Bend Screen for Filtration

It can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.

Stainless steel gravity curved sieve for filtration

Specifications of Stainless Steel Curved Sieve Bend Screen for Filtration:

 Stainless Steel Gravity Curved Sieve
Material:
Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)
Wedge Wire (mm):
Width : 1.50 1.80 2.30 3.00 3.30 3.70
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Rod (mm):
Width : 2.30 3.00 3.30 3.70
Height : 2.70 3.60 4.70 5.60 6.30
Round : 2.50mm -- 6.0mm
Diameter Ranging
from 1 inch -----45 inch.
Length:
lengths up to 6 meters.
Slot Size:
0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.
Note: Other specifications can be customized according to your requirement


Stainless steel gravity curved sieve for filtration

Packaging and Transportation of Stainless Steel Curved Sieve Bend Screen for Filtration:

Package: in wood case

Delivery Time: 5-25 days
