Stainless Steel 316L Wedge Wire Slot Tube Filters
Category: | Wedge Wire Application |
---|---|
Material: | Stainless Steel 302,304,304L,316,316L |
Properties: | Wedge Wire Pipe |
Application: | mineral processing,coal processing,food processing,water treatment,petrochemical industry,architecture industry |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Stainless Steel 316L Wedge Wire Slot Tube Filters

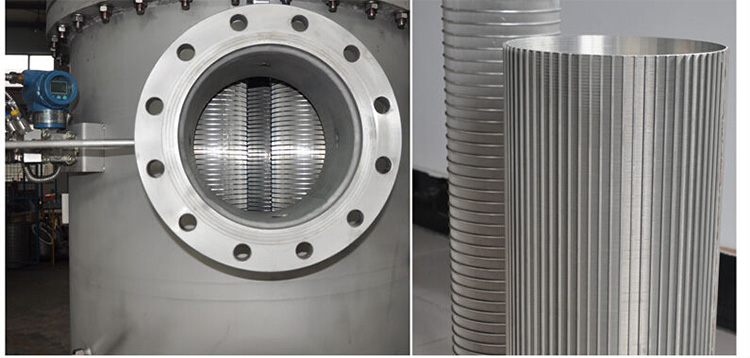

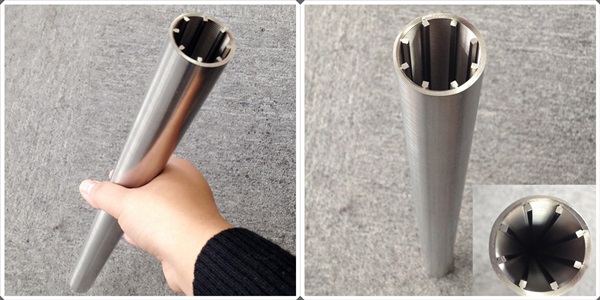

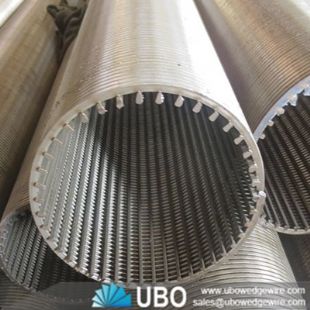

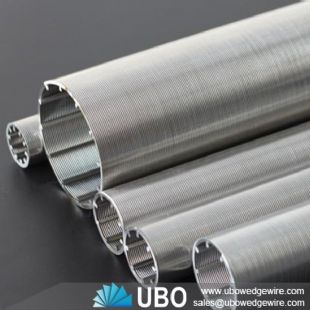

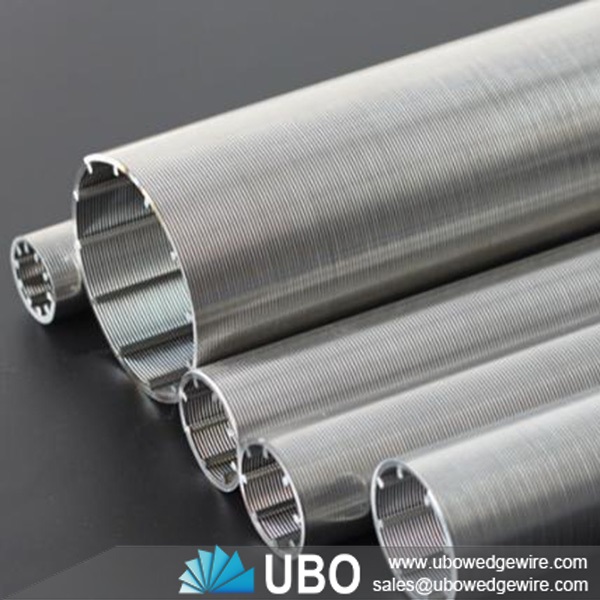

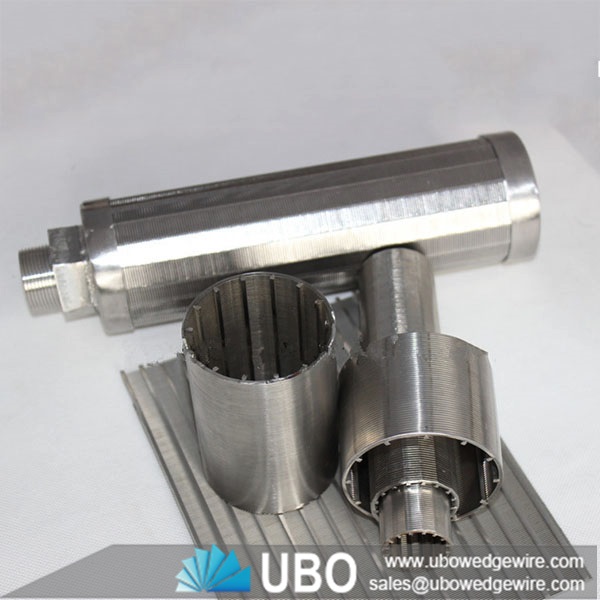

wedge wire slot tube filters is made by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods under automatic wire screen machine. Each profile wire and support rod is welded by resistance welding.
Application for Stainless Steel 316L Wedge Wire Slot Tube Filters:
widely used in mineral processing,coal processing,food processing,water treatment,petrochemical industry,architecture industry, as well as many other applications involving liquid & solids separation.
Features for Stainless Steel 316L Wedge Wire Slot Tube Filters:
1) Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2) Low cost operation Screens with high open area shall favor groundwater infiltration. Abundant water shall reduce the water levels down, thus to save energy consumption.
3) Reduce the abrasion of the pump
Under the same condition, high open area can make the speed of groundwaters entering into the screen much slower than any other filtration apparatus, which will avoid sands entering into screen because of high pressure, thus reduce the abrasion of the pump.
4) Extend the life span of wells
Comparatively, groundwaters entering into screen with higher open area is much easier than the entering into lower open area screen. The slow water flow shall extend the life span of wells.
Filtrations Direction for Stainless Steel 316L Wedge Wire Slot Tube Filters:

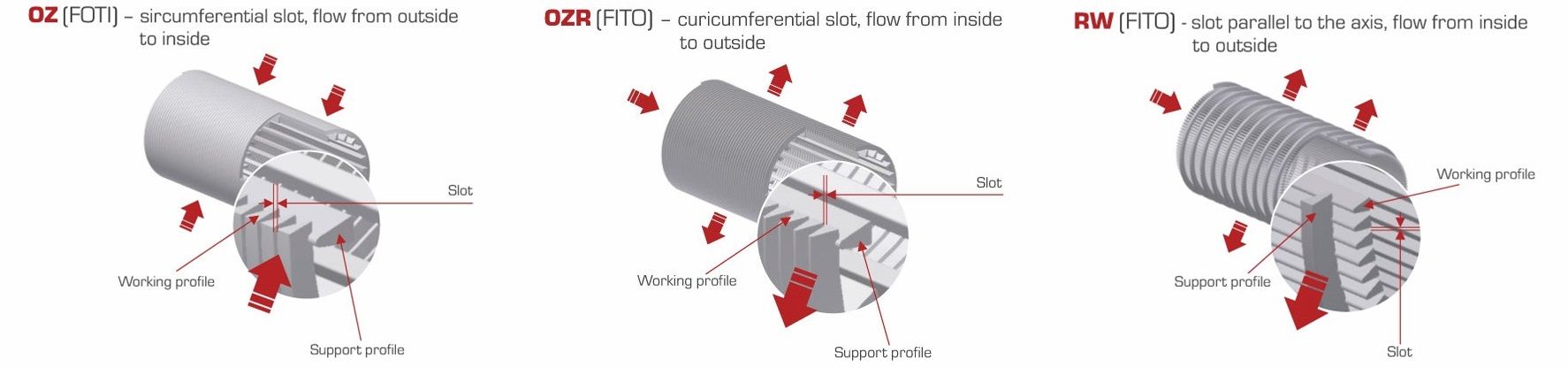

The direction of the flow is determined by the position of the surface profiles in relation to the support profiles. Wedge wire screens are either flow-out-to-in (FOTI) or flow-in-to-out (FITO)
Specifications of Stainless Steel 316L Wedge Wire Slot Tube Filters:
Outside Diameter
|
Profile wire
|
Rod wire
|
Rod quantity
|
Slot size
|
Length
|
||
DN
|
Inch
|
mm
|
mm
|
mm
|
|
mm
|
mm
|
20
|
3/4
|
26.9
|
1.5*2
|
2*3
|
12
|
0.1~0.25
|
45~3000 |
25
|
1
|
33.7
|
1.5*2
|
2*3
|
14
|
0.1~0.25
|
45~3000 |
32
|
1-1/4
|
42.4
|
1.5*2
|
2*3
|
16
|
0.1~0.25
|
45~3000 |
40
|
1-1/2
|
48.3
|
1.5*2
|
2*3
|
16
|
0.1~0.25
|
45~3000 |
50
|
2
|
60.3
|
1.5*2
|
2*3
|
18
|
0.1~0.5
|
45~3000 |
65
|
2-1/23
|
76.1
|
1.5*2
|
2*3
|
20
|
0.1~0.5
|
45~3000 |
80
|
3
|
88.9
|
1.8*2.5
|
2*3
|
24
|
0.1~0.5
|
1000~6000 |
100
|
4
|
114.3
|
1.8*2.5
|
2*3
|
30
|
0.5~2
|
1000~6000 |
125
|
5
|
139.7
|
2.3*2.7
|
2*3
|
36
|
0.5~2
|
1000~6000 |
150
|
6
|
168.3
|
2.3*2.7
|
3*5
|
44
|
0.5~2
|
1000~6000 |
200
|
8
|
219.1
|
3.3*3.5
|
3*4.7
|
56
|
0.5~2
|
1000~6000 |
250
|
10
|
273
|
3.3*3.5
|
4*6
|
66
|
0.5~2
|
1000~6000 |
300
|
12
|
323.9
|
3.3*4.7
|
4*6
|
72
|
0.5~2
|
1000~6000 |
350
|
14
|
355.6
|
3.7*5
|
4*6
|
80
|
0.5~2
|
1000~6000 |
400
|
16
|
406.4
|
1.5*2
|
2*3
|
94
|
0.1*2
|
1000~6000 |
450
|
18
|
457
|
2*3
|
4*5
|
112
|
0.1*2
|
500~400 |
500
|
20
|
508
|
2*3
|
4*5
|
124
|
0.1*2
|
500~400 |
550
|
22
|
559
|
2*3
|
4*5
|
140
|
0.1*2
|
500~400 |
600
|
24
|
610
|
2*3
|
4*5
|
156
|
0.1*2
|
500~400 |
Siot:0.1mm~2mm Tolerance:0.05 |
Packaging and Transportation of Stainless Steel 316L Wedge Wire Slot Tube Filters:
