Sintered filter for water treatment filter nozzles
Category: | Wedge Wire Application |
---|---|
Material: | SS 304,316,316L, Stainless steel and carbon steel. |
Properties: | Filter Nozzle |
Application: | waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an aug |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Sintered filter for water treatment filter nozzles

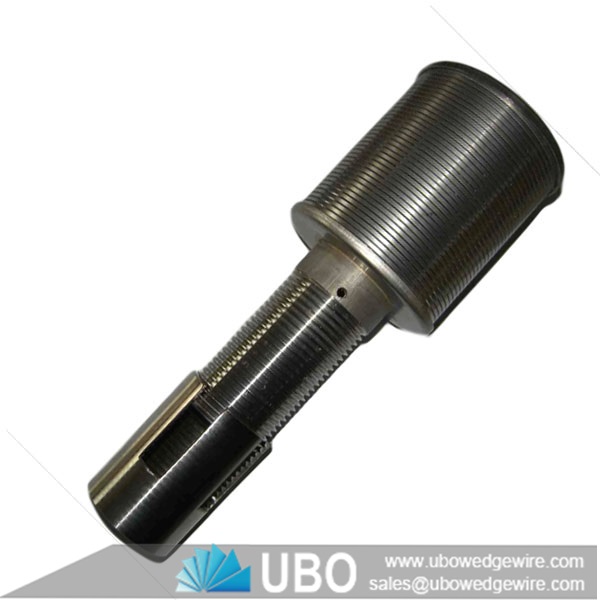

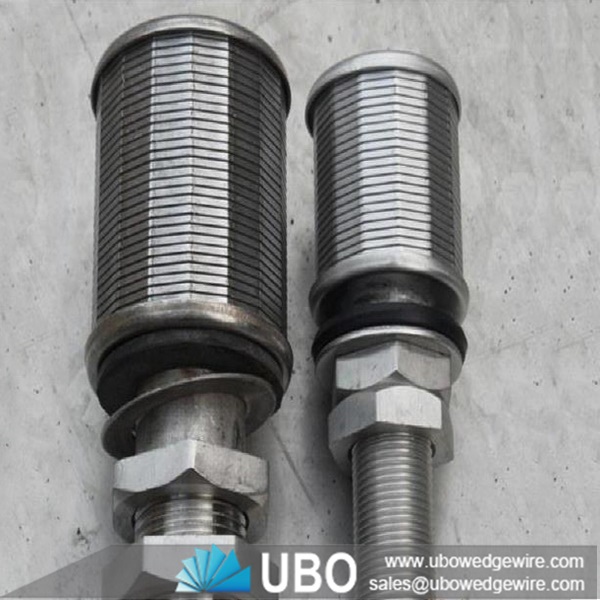

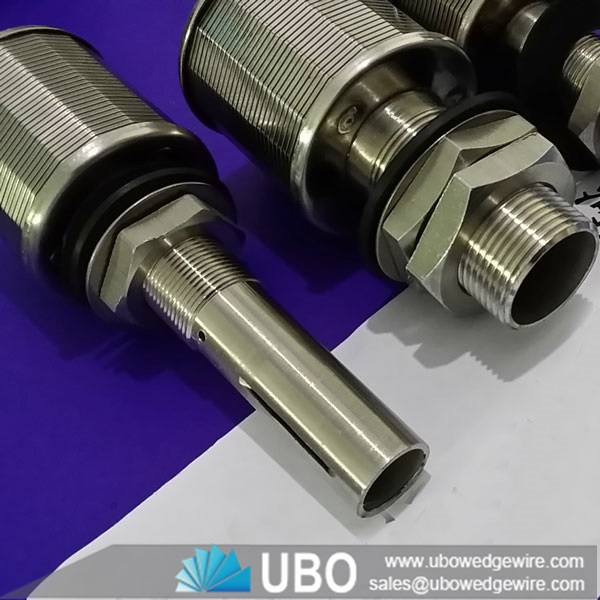

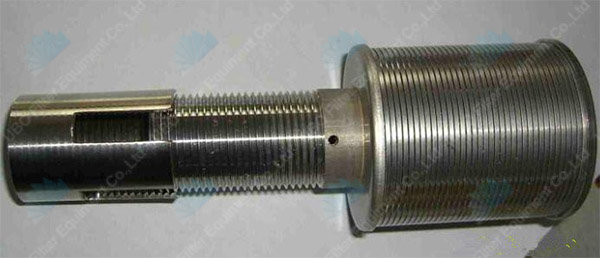

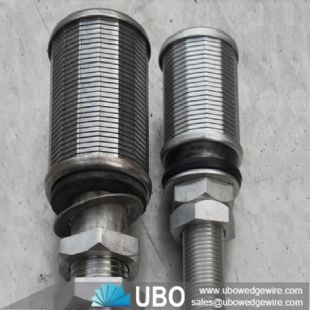

Screen nozzle manufactured by wrapping a shaped wire around an internal array of longitudinal rods.The wire and rod, generally made from carbon or stainless steel are joined by resistance welding. Screen sections are usually twenty feet long. Commonly referred to as continuous slot or wire wrap screen, this product was originally developed to overcome problems associated with cable tool wells drilled in fine grained.
Uses for Sintered filter for water treatment filter nozzles:
The stainless wedged screen nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softening, conversion of sea water into fresh water, the filter of food chemistry.
Features for Sintered filter for water treatment filter nozzles:
Great mechanical strength
Highly resistant to abrasivity and vibration.
It can hold more pressure and temperature compared to the perforated sheet screen.
Longer screen life.
Larger useful area than that of the standard perforated sheet screen.
The wedge wire screen can be used in any of INOXPA filters.
The wedge wire screen is assembled to the filter body by clamp, this allows an easy and quick disassembling for cleaning.
It is possible to clean the wedge wire screen with a reversed flow (back flushing).
Advantages for Sintered filter for water treatment filter nozzles:
1. Type 316L stainless steel construction.
2. Continuous slot design provide large circulation area
3. Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4. Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5. Wedge wire screen is highly resistant to plugging.
6. Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7. Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, safety and environmental friendly.
Specifications of Sintered filter for water treatment filter nozzles:
Type
|
Gap
|
Main dimensions
|
Circulation area
0.2mm Gap
|
||||
D
|
H
|
L
|
M
|
L1
|
|||
1
|
0.2~0.5
|
45
|
30
|
180
|
25
|
According to custom’s request
|
330
|
2
|
45
|
40
|
190
|
25
|
450
|
||
3
|
53
|
40
|
190
|
30
|
500
|
||
4
|
53
|
50
|
200
|
30
|
630
|
||
5
|
53
|
40
|
235
|
32
|
500
|
||
6
|
57
|
40
|
190
|
32
|
605
|
||
7
|
57
|
50
|
200
|
32
|
750
|
