Self-cleaning Wedge Wire Screen Casing Pipe

More Views

Self-cleaning Wedge Wire Screen Casing PipeSelf-cleaning Wedge Wire Screen Casing PipeSelf-cleaning Wedge Wire Screen Casing Pipe

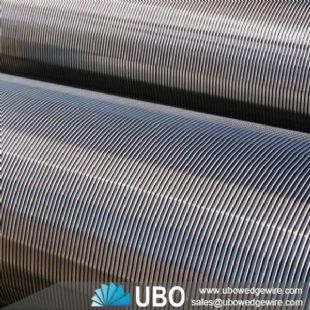

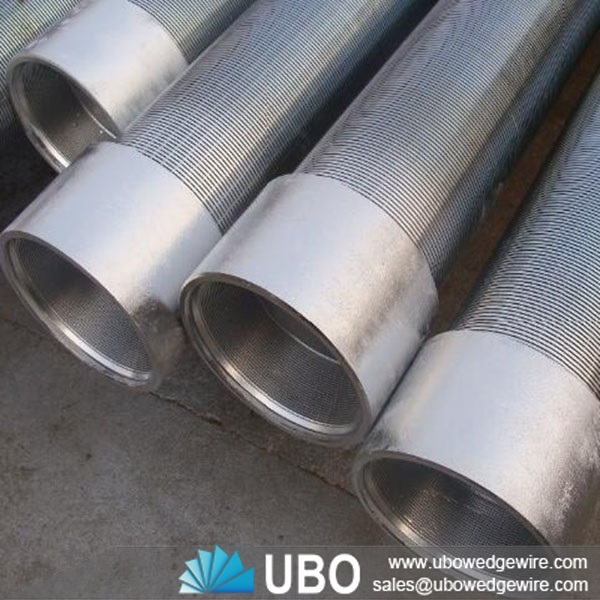

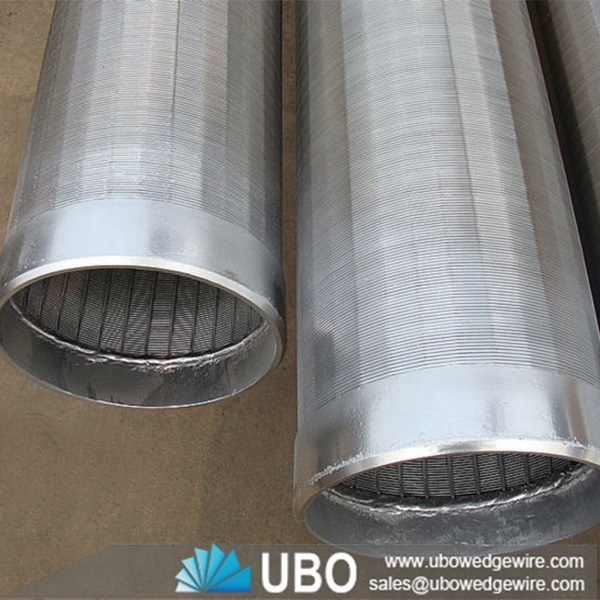

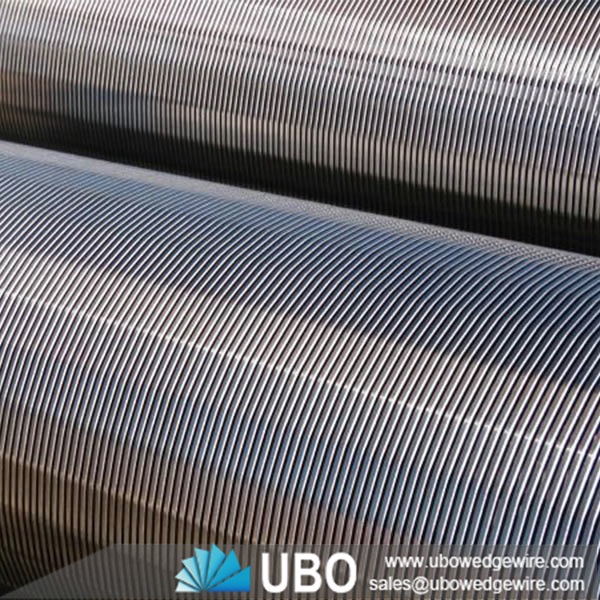

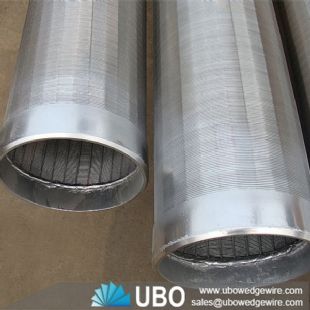

Self-cleaning Wedge Wire Screen Casing Pipe

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Wedge Wire Pipe
Application:the water-treating equipment;the environment protection; the sea water transforms into the industrial water and life use water desalination treatment

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Self-cleaning Wedge Wire Screen Casing Pipe

Slot opening for stainless steel water well screens are manufactured by spacing successive turns of the outer wire to produce the desired slot size. All slots should be cleaned and free of burrs and cuttings.


Each slot opening between adjacent wires is V-shaped, from the special shape of wire used to form the screen surface. The V-shaped openings designed to be non clogging, are narrowest at the outer face and widen inwardly.

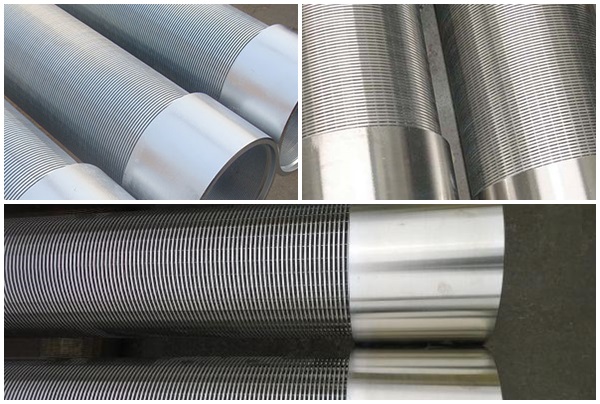

SS304 self cleaning wedge wire screen casing pipe



Usage for Self-cleaning Wedge Wire Screen Casing Pipe:



Oil well , water well ,deep well , geothermal well,control sand,liquid solids separation,water treatment,waste water treatment,filter element,the industrial wastewater treatment plants,dewatering equipment,power plant,chemical plant,dehydrate ,steel plant,nuclear power plant ,Pharmaceutical factory ,coal mine,The fixed double chamber bed anion, cation exchanger ,Anion exchanger,waste water treatment system, Sea Water Desalination ,industrial and municipal Water ,Wastewater Treatment plants,drinking water treatment,potable water treatment,purified water treatment,boiler water treatment,boiler water conditioning,resin water treatment,Softening water treatment equipment ,wastewater treatment,sewage treatment,Composite ion exchanger.



Advantage for Self-cleaning Wedge Wire Screen Casing Pipe:



1) Production process continuity: V-shaped profile wires creating slots which enlarge inwardly and therefore avoid clogging and minimize downtime.

2) Low maintenance costs: Separation at the screen surface which can easily cleaned by scraping or back washing.

3) Maximum process output: Precise and continuous slot openings resulting in accurate separation without loss off media.

4) Low operational costs: Large open area with an effective flow, high yield and a low pressure drop.

5) Long life: Welded at each intersection creating a strong and durable screen.

6) Reduced installation costs: supporting constructions eliminating costly support media and enabling a maximum flexibility in the design of components.

7) Chemical and thermal resistant: A variety of corrosion resistant stainless steel materials and many exotic alloys suitable for high temperatures and pressures.



Feature for Self-cleaning Wedge Wire Screen Casing Pipe:



Each slot opening between adjacent wires is V-shaped, resulting from the special shape of the wire used to form the screen surface. The V-shaped opening, designed to be non clogging, are narrowest at the outer face and widen inwardly.

Johnson thread stainless steel water well screens provide more intake area per unit area of screen surface than any other type. For any given slot size, this kind of water well screen has maximum open area.

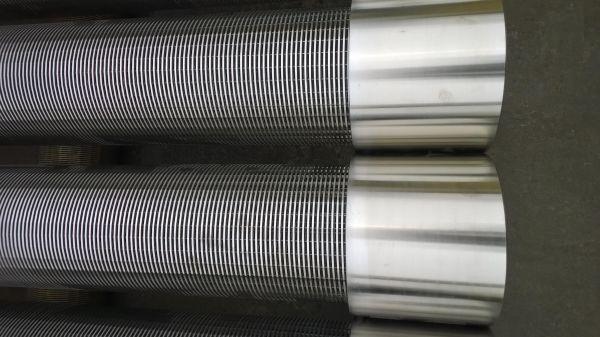

SS304 self cleaning wedge wire screen casing pipe

Specifications of Self-cleaning Wedge Wire Screen Casing Pipe:

SS304 self cleaning wedge wire screen casing pipe

Outside Diameter
Profile wire
Rod wire
Rod quantity
Slot size
Length
DN
Inch
mm
mm
mm

mm
mm
20
3/4
26.9
1.5*2
2*3
12
0.1~0.25

45~3000

25
1
33.7
1.5*2
2*3
14
0.1~0.25

45~3000

32
1-1/4
42.4
1.5*2
2*3
16
0.1~0.25

45~3000

40
1-1/2
48.3
1.5*2
2*3
16
0.1~0.25

45~3000

50
2
60.3
1.5*2
2*3
18
0.1~0.5

45~3000

65
2-1/23
76.1
1.5*2
2*3
20
0.1~0.5

45~3000

80
3
88.9
1.8*2.5
2*3
24
0.1~0.5

1000~6000

100
4
114.3
1.8*2.5
2*3
30
0.5~2

1000~6000

125
5
139.7
2.3*2.7
2*3
36
0.5~2

1000~6000

150
6
168.3
2.3*2.7
3*5
44
0.5~2

1000~6000

200
8
219.1
3.3*3.5
3*4.7
56
0.5~2

1000~6000

250
10
273
3.3*3.5
4*6
66
0.5~2

1000~6000

300
12
323.9
3.3*4.7
4*6
72
0.5~2

1000~6000

350
14
355.6
3.7*5
4*6
80
0.5~2

1000~6000

400
16
406.4
1.5*2
2*3
94
0.1*2

1000~6000

450
18
457
2*3
4*5
112
0.1*2

500~400

500
20
508
2*3
4*5
124
0.1*2

500~400

550
22
559
2*3
4*5
140
0.1*2

500~400

600
24
610
2*3
4*5
156
0.1*2

500~400

Slot:0.1mm~2mm    Tolerance:0.05


Packaging and Transportation of Self-cleaning Wedge Wire Screen Casing Pipe:

SS304 self cleaning wedge wire screen casing pipe
