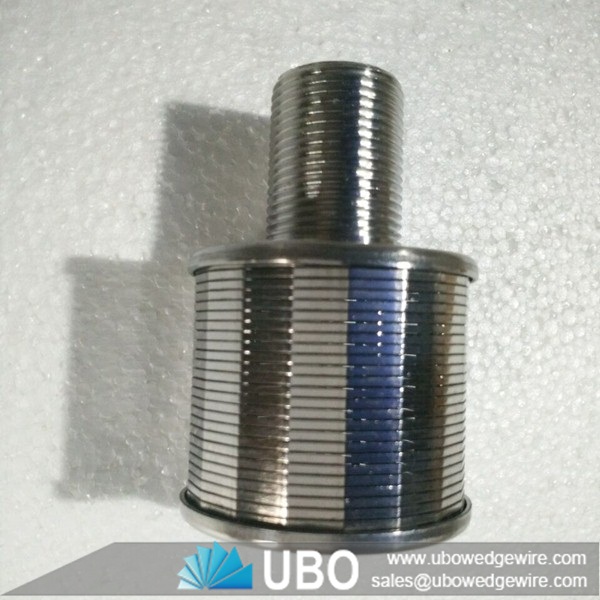

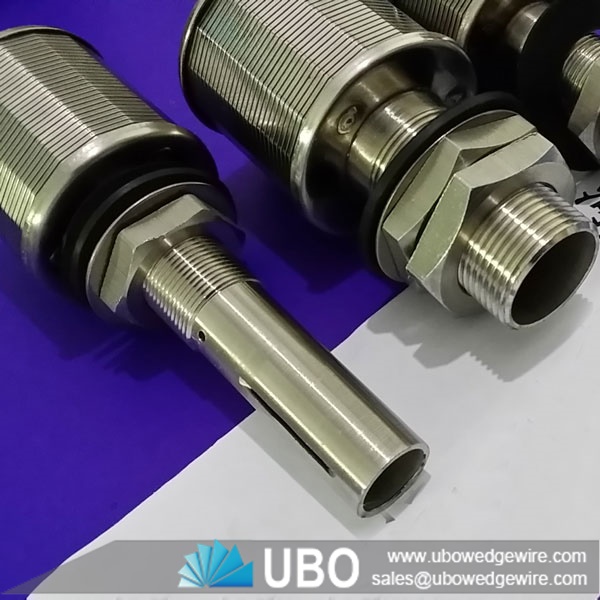

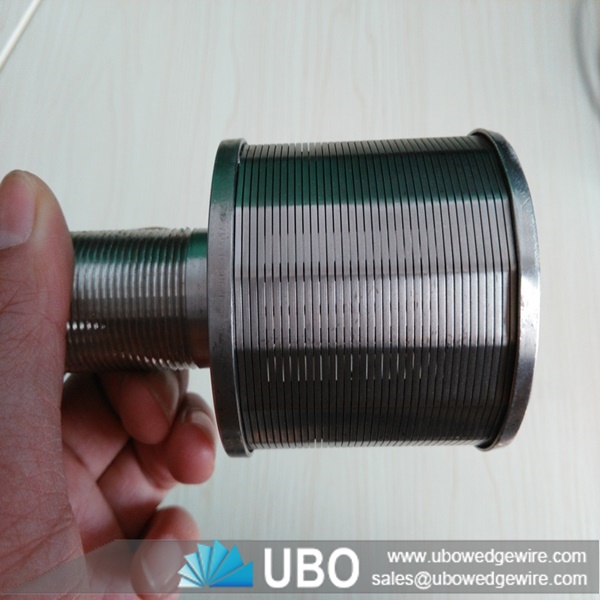

Screen nozzle filter

More Views

Screen nozzle filterScreen nozzle filterScreen nozzle filter

Screen nozzle filter

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Screen nozzle filter

Screen nozzle filters are made during simultaneous winding of specially profiled working wires on a spiral and welding them to carrying wires placed along the tube. This technology allows the production of wedge wire screen when very high gap precision and screen resistance are required. Due to using the newest welding technology we can obtain various distances between carrying wires, very accurate and repeatable gap and therefore produce screens according to customer’s particular requirements.

It use in the water softening treatment equipment, replace Polypropylene(PP) filter. down-flow reactors for liquid/solid or gas/solid separation.

Screen nozzle filter

Advantages of Screen Nozzle Filter

1) Type 316L stainless steel construction.

2) Continuous slot design provide large circulation area

3) Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.

4) Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.

5) Wedge wire screen is highly resistant to plugging.

6) Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.

7) Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.

Applications of Screen Nozzle Filter

The Screen nozzle filter can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

Screen nozzle filter

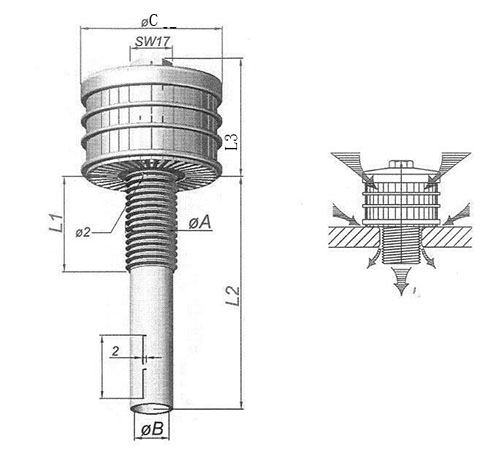

Specifications of Screen nozzle filter:

Screen nozzle filter

D L L1 Slot Size d Flow Area mm2
45 98 34 0.2-0.25 M20 380-493
45 100 44 0.2-0.25 M24 551-690
53 100 34 0.2-0.25 M24 453-597
53 100 44 0.2-0.25 M27 680-710
53 105 50 0.2-0.25 M32 800-920
57 115 34 0.2-0.25 M30 560-670
57 120 55 0.2-0.25 M32 780-905
60 120 55 0.2-0.25 G1" 905-1100
82 130 50 0.2-0.25 M33 1170-1280
108 200 100 0.2-0.25 G2" 3050-4600

Packaging and Transportation of Screen nozzle filter:
